0.3 mm Pitch, 0.65 mm Height, Top Contact, Back-Flip FPC Connectors

FH42 Series

0.65 mm height

0.65mm

11.4 mm

(31 pos

3.0

Fig.1

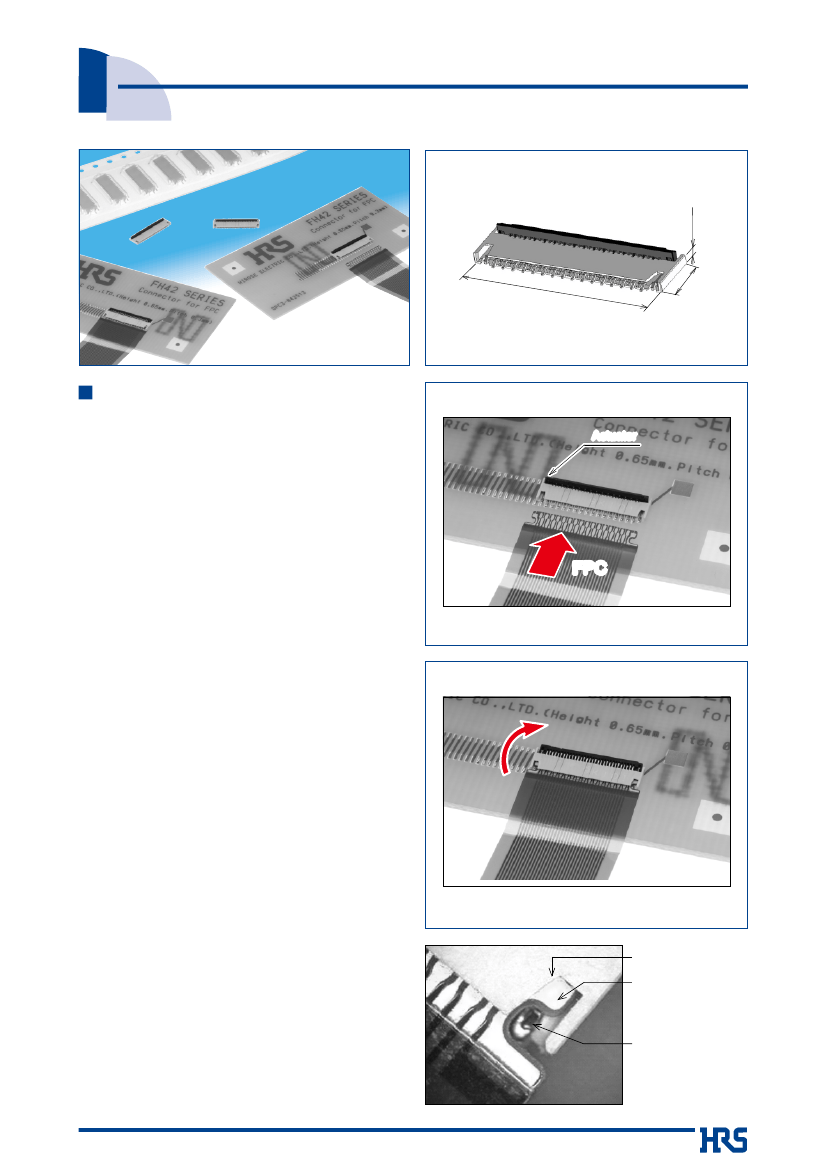

Features

1. Space saving 0.3 mm pitch and low-

profile top contact connector

This top contact connector delivers a 0.65 mm

height, mounting depth of 3.08 mm and depth 3.55

mm with the actuator closed. All of this helps to

maximize PCB space.

FPC insertion

Actuator

2. FPC retention secured, despite the low profile

Improved FPC horizontal retention by reinforcing the

clasp temporary retention mechanism.

3. Reduces production costs

The actuator is delivered in the open position and

allows you to immediately insert the FPC.

FPC

4. Favorable FPC insertion, despite the low profile

- The unique clasp form means an audible click when

the FPC goes over the clasp, while also preventing

incorrect (diagonal) insertion of FPC.

- Despite the temporary retention mechanism of the

reinforcing clasp, horizontal insertion of FPC is

possible.

Fig.2

With actuator locked

5. Insertion check window

There is a cutout on the housing that allows you

to visually inspect the FPC to make sure that it is

locked into place, preventing incorrect insertion

of the FPC.

6. Accepts 0.12 mm thick FPC

The connector accepts 0.12 mm thick FPC, standard

thickness for 0.3 mm pitch low-profile connectors.

7. Fully molded structure aids PCB layout

The bottom of this connector is enclosed by a fully

molded structure that protects the contacts and

removes any restrictions from PCB patterning and

layout design.

8. Halogen-free

The connector does not use chlorine and bromine

exceeding standard limits.

Defined in accordance with IEC61249-2-21 Br: 900 ppm

max, Cl: 900 ppm max, Br + Cl: 1,500 ppm max.

Fig.3

Cutout window on

housing’s top surface

FPC tab

9. S u p p o r t s a u t o m a t i c p i ck - n - p l a c e

mounting

Offered in tape and reel packaging that is

compatible with automatic machine mounting.

(5,000 pieces per reel). The standard packaging is

5,000 pieces per reel, but it is also offered in a 500

piece reel. (The outer diameter of the reel will be

Ø180

mm in this case.)

Reinforcement metal

ﬁttings

2014.10w
