SPECIFICATION FOR APPROVAL
REF : 20100511-B
PROD.
NAME
PAGE: 1
ABC'S DWG NO.
ABC'S ITEM NO.
SH5028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

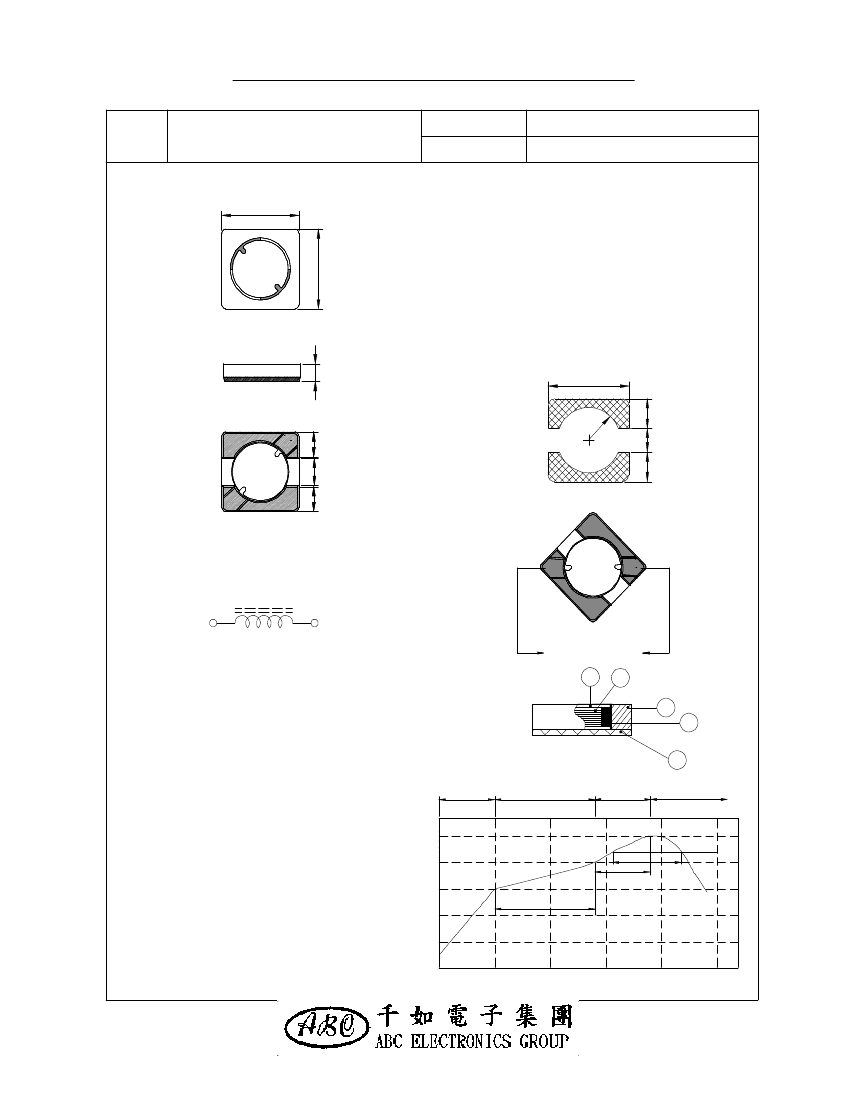

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
A
B
C
D
E
G
H
I
R
:
:
:
:
:
:
:
:
:
5.80±0.3
5.80±0.3
2.80±0.2
1.90 typ.
2.00 typ.
1.90 ref.
6.30 ref.
2.20 ref.
2.20 ref.
H
I
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
6R2
C
B
R
LCR Meter
a
c
D
E
( PCB Pattern suggestion )
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Core：Ferrite RI core
c﹒Wire
：Enamelled
copper wire ( Class H )
d﹒Adhesive
：Epoxy
resin
e﹒Terminal：Ag/Ni/ Sn
f﹒Remark：Products comply with RoHS'
requirements
D
I
b
d
Peak Temp：250℃ max.
Max. Peak Temp - 5℃：30sec max.
Max time above 217℃
：60sec~150sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+3.0
℃
/ sec max.
G
e
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
250℃
217℃
60sec~150sec
60sec max.
250
Temperature (
℃
)
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp. rise
：30℃
max.
b﹒Storage temp.：-40℃ ----+125℃
c﹒Operating temp.：-40℃----+125℃
d﹒Resistance to solder heat：250℃.10 secs.
200
150
60sec~120sec
100
50
0
50
100
150
Time ( seconds )
200
250
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20100511-B
PROD.
NAME
PAGE: 2
ABC'S DWG NO.
ABC'S ITEM NO.
SH5028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅴ﹒
ELECTRICAL CHARACTERISTICS：
DWG No.
SH50282R6YL□ -□□□
SH50283R0YL□ -□□□
SH50284R2YL□ -□□□
SH50285R3YL□ -□□□
SH50286R2YL□ -□□□
SH50288R2YL□ -□□□
SH5028100YL□ -□□□
SH5028120YL□ -□□□
SH5028150YL□ -□□□
SH5028180YL□ -□□□
SH5028220YL□ -□□□
SH5028270YL□ -□□□
SH5028330YL□ -□□□
SH5028390YL□ -□□□
SH5028470YL□ -□□□
SH5028560YL□ -□□□
SH5028680YL□ -□□□
SH5028820YL□ -□□□
SH5028101YL□ -□□□
SH5028151YL□ -□□□
SH5028221YL□ -□□□
SH5028331YL□ -□□□
SH5028681YL□ -□□□
1).
2)."-
Inductance
(
μH
)
2.6
±30％
3.0
±30％
4.2
±30％
5.3
±30％
6.2
±30％
8.2
±30％
10.0
±30％
12.0
±30％
15.0
±30％
18.0
±30％
22.0
±30％
27.0
±30％
33.0
±30％
39.0
±30％
47.0
±30％
56.0
±30％
68.0
±30％
82.0
±30％
100.0
±30％
150.0
±30％
220.0
±30％
330.0
±30％
680.0
±30％
SRF
(MHz)
typ.
55.0
45.0
40.0
45.0
40.0
28.0
25.0
20.0
20.0
20.0
18.0
16.0
15.0
14.0
13.0
11.0
10.0
9.0
8.5
6.5
6.0
4.5
2.8
RDC
(Ω)
typ.
0.020
0.023
0.026
0.033
0.036
0.043
0.056
0.065
0.074
0.088
0.098
0.124
0.164
0.176
0.199
0.264
0.287
0.338
0.378
0.715
0.969
1.660
3.630
max.
0.030
0.030
0.035
0.040
0.045
0.055
0.070
0.080
0.100
0.110
0.120
0.160
0.190
0.210
0.250
0.300
0.350
0.430
0.480
0.900
1.250
2.000
4.300
Irms
(A)
max.
3.00
2.80
2.50
2.30
2.20
2.10
1.50
1.46
1.38
1.25
1.15
1.05
0.90
0.86
0.82
0.72
0.62
0.52
0.45
0.33
0.30
0.20
0.13
Isat
(A)
typ.
2.70
2.50
2.20
1.90
1.80
1.60
1.40
1.25
1.15
1.10
1.00
0.90
0.78
0.72
0.65
0.60
0.56
0.50
0.45
0.35
0.30
0.20
0.14
□□□
":Reference code
：Packaging
Information… A：Bulk B：Taping Reel
3). Inductance Test Freq.
：100KHz
/0.1V
4). Irms base on Temp. rise 30
℃
max.
5). Isat base on
△L/L0A＝35％
typ.
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20100511-B
PROD.
NAME
PAGE: 3
ABC'S DWG NO.
ABC'S ITEM NO.
SH5028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR
Ⅵ﹒INDUCTANCE
VS. DC CURRENT CURVE：
10 3
7
5
3
2
331
Inductance（uH）
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
151
470
150
3R0
2
3
5 7 10 2
2
3
5 7 10 3
2
3
5 7 10 4
DC Current (mA)
AR-001A
SPECIFICATION FOR APPROVAL
REF : 20100511-B
PROD.
NAME
PAGE: 4
ABC'S DWG NO.
ABC'S ITEM NO.
SH5028□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

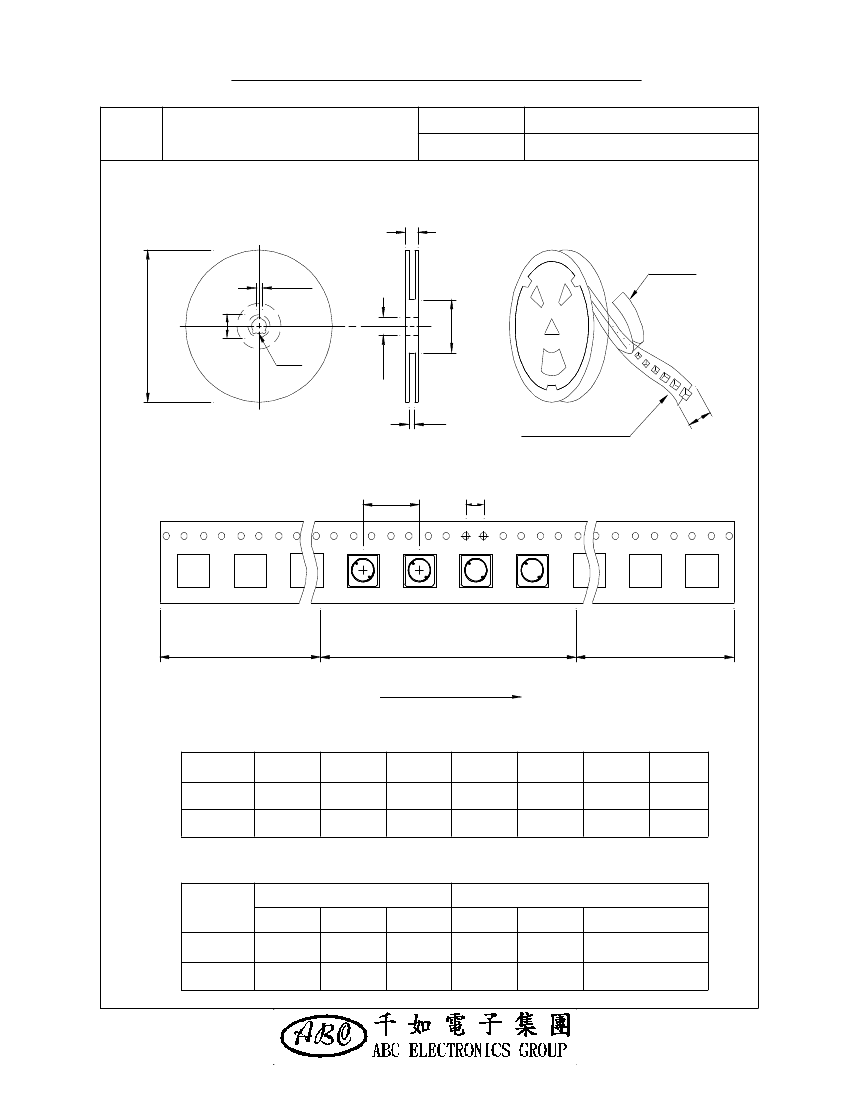

Ⅶ﹒PACKAGING
INFORMATION：
( 1 ) Configuration
T
Cover tape
2.0±0.5
B
A
∮
C
∮
C
N
G
D
Embossed carrier
※
Carrier tape width : D
P:12 m/m
End
4 m/m
Start
6R2
6R2
6R2
6R2
Leadr
no component
200 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
07 - 16
13 - 16
A
178
330
B
21±0.8
21±0.8
C
13
13±0.5
D
16
16
G
18
18
+0
+0
N
50
50
-0
-0
Unit:m/m
T
20.5
22.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SH5028
SH5028
AR-001A
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
400
1,500
300
1100
07 - 16
13 - 16
12,000
9,000
10.0
8.0
42 x 41 x 24
38 x 37 x 22
SPECIFICATION FOR APPROVAL
REF : 20100511-B
PROD.
NAME
ABC'S DWG NO.
SHIELDED SMD
POWER INDUCTOR
ABC'S ITEM NO.
SH5028□□□□L□-□□□
PAGE: 5
Ⅷ﹒DWGING
NUMBER EXPRESSION：
S
H
5
0
2
8
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
C
T.B.D.
T / R ( Reel package )
T / R ( Reel package )
Inner package
Inner package Q'TY
T.B.D.
400
1500
pcs
pcs
Remark
AR-001A
