● High moisture resistance 85℃, 85%, 275 V [AC] 500 h
● Flame-retardant plastic case and non-combustible resin
● RoHS compliant
Non-inductive construction using metallized polypropylene film.
Flame-retardant plastic case and non-combustible resin.
Recommended applications
● Interference suppressors for electronic equipment
Explanation of part number
■ Standard
1
2
3
4
5
6
7
8
9
10
11
12
E
C
Q
U
B
A
F
Capacitance
Cap. Tol.
Suffix
Product code
Dielectric &
construction
Rated voltage
Code
K
M
Cap. Tol.
±10 ％
±20 ％
Code
Blank
A
Lead form
Straight
Cut lead
■ Special lead space product
1
2
3
4
5
6
7
8
9
10
11
12
E
C
Q
U
B
A
F
Capacitance
Suffix
Product code
Dielectric &
construction
Rated voltage
Code
VB、VH
VA、VG
V5、V6
V1、V2
Cap. Tol.
Lead form
Crimped
lead
Length under crimping
4.0 mm
4.5 mm
±10 ％
±20 ％
±10 ％
±20 ％
Applicable standard
＊It is certified as type ECQUB in the following approval.
Approval
UL
CSA
Europe
UL60384-14
CAN/CSA E60384-14
EN60384-14
Class Y2 / X1
Class X1
Class Y2 / X1
Class X1
Class Y2 / X1
Class X1
Class
0.001 μF to 0.0068 μF
0.01 μF to 1.0 μF
0.001 μF to 0.0068 μF
0.01 μF to 1.0 μF
0.001 μF to 0.0068 μF
0.01 μF to 1.0 μF
Certification organization
UL
UL
DEMKO
＊When applying this capacitor to European and American safety standards, please use type designation and rating such as ECQUB, 0.1 μF.
＊Approval number (File No.) of safety regulations are subject to revision without notice. Ask factory for a copy of the latest file No.
＊According to standards for each region are based on IEC60384-14.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
31-Jul-20
Plastic Film Capacitors
ECQUB series
Specifications
Category temp. range
Rated voltage [AC]
Capacitance range
Capacitance tolerance
Dissipation factor (tan δ)
Between terminals
Withstand voltage
Between terminals
to enclosure
−40 ℃ to +110 ℃
300 V
300 V mentioned above refers to maximum voltage by fluctuating
of nominal power supply voltage of 240 V.
0.001 μF to 1.0 μF 〔0.001 μF to 0.0068 μF (E12), 0.01 μF to 1.0 μF (E6)〕
±10% (K), ±20% (M)
tan δ ≦ 0.1 % (20 ℃, 1 kHz)
C ≦ 0.0068 μF
0.0068 μF < C ≦ 1.0 μF
: 1600 V [AC], 2121 V [DC], 60 s
: 690 V [AC], 1768 V [DC], 60 s
2100 V [AC], 60 s
The capacitor shall be applied the voltage through a resistor of
2 kΩ or more when charge and discharge.
C ≦ 0.33 μF
Between terminals C > 0.33 μF
Insulation resistance (IR)
C ≦ 0.47 μF
: 15000 MΩ or more at 100 V [DC]
: 5000 MΩ・μFor more at 100 V [DC]
: 2000 MΩ or more at 500 V [DC]
Between terminals 30000 MΩ or more at 100 V [DC]
to enclosure
500 MΩ 以上 at 500 V [DC]
＊Use of this capacitor is limited to AC voltage (50 Hz or 60 Hz sine wave).
＊A faint corona discharge may occur inside of the capacitor element at rated voltage, however there is no influence on the reliability of the capacitor.

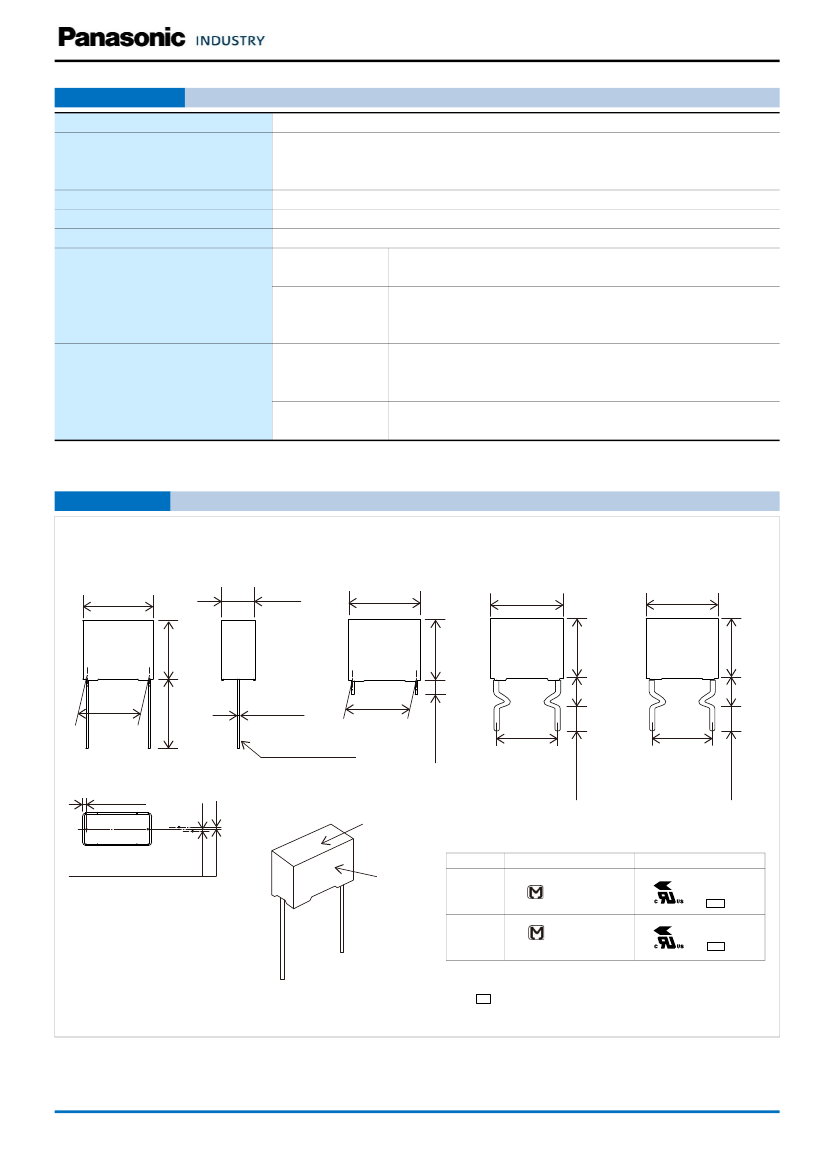

Dimensions
Straight
T±0.5
Cut lead
（Suffix A）
L±0.5
Crimped lead
（Suffix VB, VH, VA,VG）
L±0.5
Crimped lead
（Suffix V5, V6, V1,V2）
L±0.5
L±0.5
H±0.5
Marking
Marking
H±0.5
H±0.5
Marking
Marking
20 min.
F±0.4
Φd±0.05
F±0.4
4.0±0.5
S±0.8
5 max.
S±0.8
4.0±0.5
4.5±0.5
Tin-plated copper-clad steel wire
+1.4
Q -0.6
（A）
Style
Marking example
(A) side
ECQUB102 K
P(Lead
location limits from center)
（B）
(B) side
15
300 V½
X1 / Y2
1
2
ECQUB103 K
15 300 V½ X1
Note : Only ±10 ％ as cap. tol. be marked as “K”．
Unit : ½½
Note: Date code.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
31-Jul-20
5 max.
H±0.5
Plastic Film Capacitors
ECQUB series
Rating · Dimensions · Quantity
Dimensions（½½）
Part No.
Cap.
(μF）
F
L
T
H
S
Φd
P
Q
Straight Crimped
Cut lead
lead
Min. order Q'ty (PCS)
STYLE
Straight Cut lead
Crimped
lead
ECQUBAF102□( )
ECQUBAF102V◇
ECQUBAF122□( )
ECQUBAF122V◇
ECQUBAF152□( )
ECQUBAF152V◇
ECQUBAF182□( )
ECQUBAF182V◇
ECQUBAF222□( )
ECQUBAF222V◇
ECQUBAF272□( )
ECQUBAF272V◇
ECQUBAF332□( )
ECQUBAF332V◇
ECQUBAF392□( )
ECQUBAF392V◇
ECQUBAF472□( )
ECQUBAF472V◇
ECQUBAF562□( )
ECQUBAF562V◇
ECQUBAF682□( )
ECQUBAF682V◇
ECQUBAF103□( )
ECQUBAF103V◆
ECQUBAF153□( )
ECQUBAF153V◆
ECQUBAF223□( )
ECQUBAF223V◆
ECQUBAF333□( )
ECQUBAF333V◆
ECQUBAF473□( )
ECQUBAF473V◆
ECQUBAF683□( )
ECQUBAF683V◆
ECQUBAF104□( )
ECQUBAF104V◆
ECQUBAF154□( )
ECQUBAF224□( )
ECQUBAF334□( )
ECQUBAF474□( )
ECQUBAF684□( )
ECQUBAF105□( )
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.01
0.015
0.022
0.033
0.047
0.068
0.1
0.15
0.22
0.33
0.47
0.68
1.0
15.3
15.3
15.3
15.3
15.3
15.3
15.3
15.3
15.3
15.3
15.3
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
26.0
26.0
26.0
26.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.0
6.0
6.0
7.0
8.0
8.0
9.0
11.0
12.0
14.0
16.0
19.0
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
9.5
10.5
10.5
10.5
11.5
12.5
16.5
18.0
20.0
19.0
21.0
23.0
26.0
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
12.5
12.5
12.5
12.5
12.5
12.5
12.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
0±0.8
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
500
300
200
200
200
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
500
300
200
200
200
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
-
-
* □：Capacitance tolerance code
◇：Special lead space product B, A, 5, or 1
◆：Special lead space product H, G, 6, or 2
()：Suffix for lead crimped
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
