533449-7: Description660 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

533449-7 Overview

660 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

533449-7 Parametric

Parameter Name	Attribute value
Objectid	1420288500
Reach Compliance Code	unknown
Other features	AMP-HDI
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	660

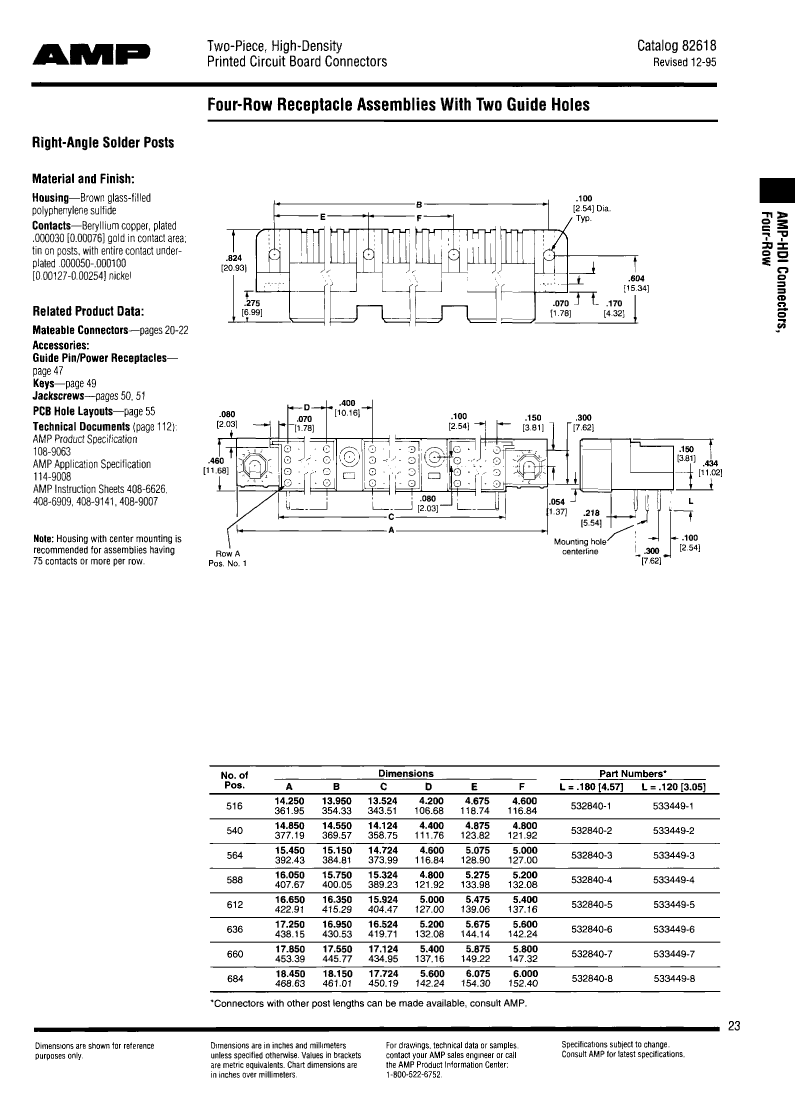

Preview

Download Datasheet

View All

533449-7 Related Products

	533449-7	533449-3	533449-5	533449-6	533449-8	533449-4	533449-2	533449-1
Description	660 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,564 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	612 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	636 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	684 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,588 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,540 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,516 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	AMP-HDI	MOUNT, EARS OPTIONAL	AMP-HDI	AMP-HDI	AMP-HDI	MOUNT, EARS OPTIONAL	MOUNT, EARS OPTIONAL	MOUNT, EARS OPTIONAL
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	660	564	612	636	684	588	540	516
Objectid	1420288500	301475572	1420288492	1420288496	1420288504	301475573	-	301475570
Manufacturer's serial number	-	533525	533449	-	533449	533525	533525	533525
