CMU2C-456A16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> CMU2C-456A16

CMU2C-456A16: DescriptionCeramic Resonator, 0.456MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size126KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

CMU2C-456A16 Overview

Ceramic Resonator, 0.456MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-2

CMU2C-456A16 Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-2
Reach Compliance Code	unknown
Crystal/Resonator Type	CERAMIC RESONATOR
frequency stability	0.2%
Manufacturer's serial number	CMU2C
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	0.456 MHz
physical size	L7.4XB3.5XH9.0 (mm)/L0.291XB0.138XH0.354 (inch)
surface mount	NO
Base Number Matches	1

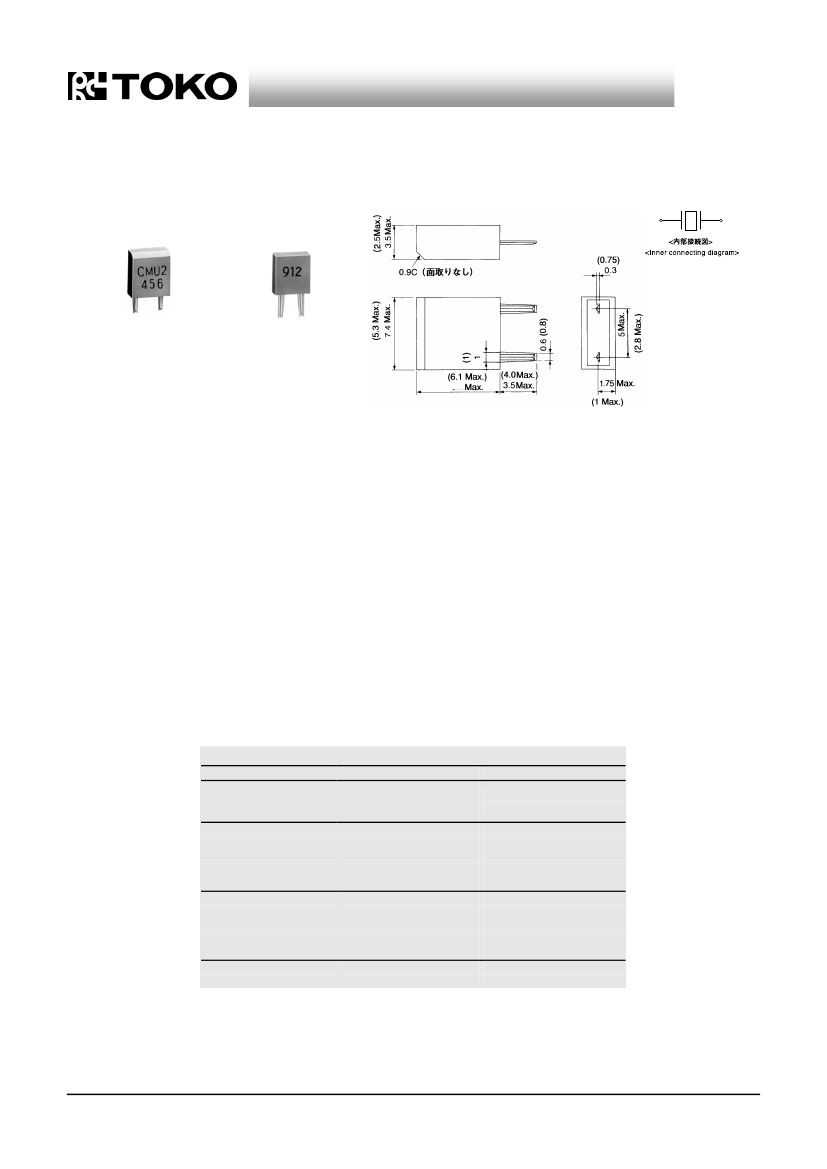

Preview

Download Datasheet

View All

Ceramic Resonators

セラミック発振子

TYPE

CMU2

CMU2C

TYPE CMU2C, CMU2

CMU2C-456

CMU2-912

9.0

(Unit: mm)

（）means

CMU2-912's dimensions

（）内はCMU2-912の寸法を示しています。

Description

•

VCO ceramic resonators for FM stereo MPX.

•

Oscillation frequency: 456kHz or 912kHz.

概

要

•

FMステレオMPX用VCOセラミック共振子

•

発振周波数：456kHz または912kHz

Features

•

No adjustment required in the MPX.

Constant performance characteristics.

Can be supplied together with IF stage filters.

RoHS compliant

特

•

長

MPXの完全無調整化

初期性½の安定維持

IF段用フィルタとのセット納入ができる

RoHS

指令対応

Applications

•

Radio sets.

•

Cable broadcasting receiver.

用

途

•

ラジオカセット

•

有線放送受信機

SELECTION GUIDE FOR STANDARD RESONATORS

TYPE CMU2

東光品番

TOKO

Part

Number

CMU2C-456A01

CMU2C-456A02

CMU2C-456A05

CMU2C-456A06

CMU2C-456A10

CMU2C-456A11

CMU2C-456A12

CMU2C-456A14

CMU2C-456A15

CMU2C-456A16

CMU2C-456A80

CMU2-912A01

•

発振周波数精度

Oscillation

Frequency

Precision(+25°C)

19.000kHz±38Hz

456.0kHz±0.2%

18.950kHz±38Hz

456.0kHz±0.2%

912.0kHz±0.3%

対応IC型名

Compatible

IC models

TA8122AN (TOSHIBA)

TA8132AN (TOSHIBA)

TA2007AN (TOSHIBA)

TA8130Z (TOSHIBA)

LA3410 (SANYO)

LA3430 (SANYO)

LA1886 (SANYO)

LA1831 (SANYO)

LA1836 (SANYO)

LA3401 (SANYO)

KIA6030Z (K.E.C.)

LA1780 (SANYO)

Please ask for other applicable MPX IC

numbers.

● 他のMPX用IC対応品番については、お問い

合わせ下さい。
