388ACPSOX-1

Description
On-Delay Relay, 3PDT, Momentary, 2750mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Panel Mount
CategoryMechanical and electronic products    relay
File Size402KB，2 Pages
ManufacturerStruthers-Dunn
Download Datasheet Parametric Compare View All

388ACPSOX-1 Overview

On-Delay Relay, 3PDT, Momentary, 2750mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Panel Mount

388ACPSOX-1 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresCOIL OPERATE VOLTAGE(AC): 102V
Maximum adjustable time delay10 s
Minimum adjustable time delay0.1 s
body width35.3 mm
body height54.6 mm
Body length or diameter38.4 mm
Coil current (AC) maximum value0.023 A
Coil power2750 mW
Maximum coil voltage (AC)120 V
Coil/Input Power TypeAC
Contact (AC) maximum rated R load12A@240VAC
Maximum contact current (AC)12 A
Maximum contact current (DC)12 A
Contact (DC) maximum rated R load12A@28VDC
Maximum contact voltage (AC)240 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Manufacturer's serial number388
Installation featuresPANEL MOUNT
Maximum operating temperature55 °C
Minimum operating temperature-20 °C
physical size38.4mm X 35.3mm X 54.6mm
GuidelineCE; CSA; UL
Relay actionMOMENTARY
Relay function3PDT
Relay typeON-DELAY RELAY
surface mountNO
Termination typeQUICK CONNECT
Base Number Matches1

Preview

Download Datasheet

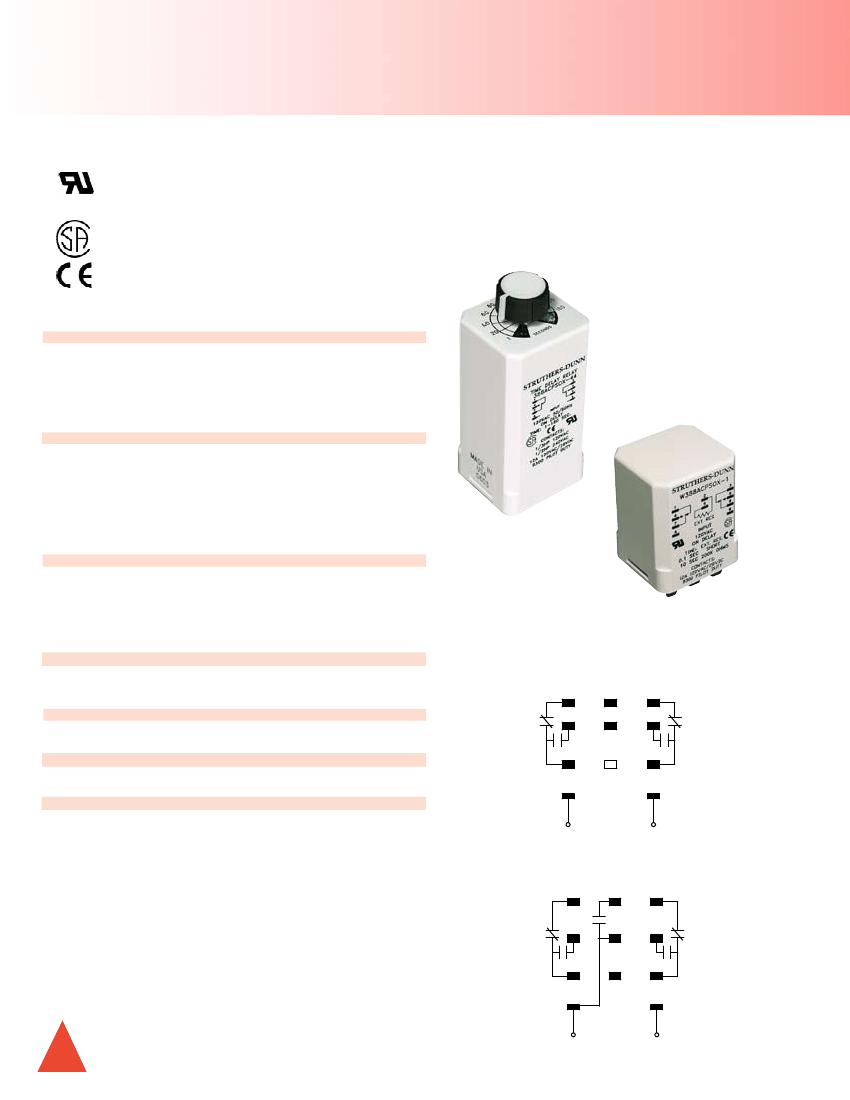

388 Series - Time Delay Relay
2PDT, 3PDT, 12 Amp
The 388 timers are square base, bladed versions of time delay relays. On delay, off delay and
interval functions are all available with either AC or DC inputs. On delay and interval products can
have up to three poles. Off delays have two poles. The timing circuit is oscillator based. Fixed time
and externally adjustable versions. Both socket and flange mount versions are available.
E43641
GENERAL SPECIFICATIONS (@ 25° C)
Timing:
Functions Available
On-delay, Off-delay, Interval
Time Range
Up to 180 minutes
Timing Adjustment
Knob or external R
Timing Repeatability
0.1%
(Constant voltage and temperature)
Reset Time maximum
150mS
Input Pulse Length minimum
50mS
Contacts:
Contact Configuration
Contact Material
Contact Rating
120 / 240VAC Resistive
28VDC Resistive
Motor 120VAC
Motor 240VAC
Minimum Contct Load
Contact Resistance, Initial
Coil:
Coils Available
Nominal Coil Power
Input Voltage Tolorance -AC
Input Voltage Tolorance -DC
Transient Protection
Reverse Polarity Protection
Duty
Dielectric Strength:
Across Open Contacts
Between Mutally Insulated Points
Insulation Resistance
Temperature:
Operating
Storage
Life Expectancy:
Electrical (full load operations)
Mechanical (no load operations)
Miscellaneous:
Mounting Position
Mating Socket
Enclosure
Weight
2PDT, 3PDT
Silver Alloy
12 Amp / 12 Amp
12 Amp
1/3Hp
1/2Hp
500mW
100 milliohms max @ 6VDC, 1A
AC and DC
2.75VA 2W
85% to 110% of nominal
80% to 110% of nominal
Yes
Yes
Continuous
500Vrms
1500Vrms
1,000 Mohms min @ 500VDC
-20 to 55°C (-4 to 131°F)
-40 to 85°C (-40 to 185°F)
100,000
10,000,000
Any
SK-SQB11-DS
Opaque Polycarbonate
4.0oz (113 grams)
+
Knob Adjustable
Externally Adjustable
388TD Wire Diagram
On Delay
1
4
2
5
3
6
7
A
8
9
B
Input
On Delay
-
Off Delay - External
Adjustable
1
2
3
4
5
6
7
A
8
9
B
+
Input
Off Delay
-
7/17
www.struthers-dunn.com
(843) 664-3303

388ACPSOX-1 Related Products

388ACPSOX-1 388CQSOX-2 388CPSOX-2 388ACQSOX-2 388ACQSOX-1 388CPSRX-22 388CPSOX-1 388ACPSOX-2
Description On-Delay Relay, 3PDT, Momentary, 2750mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Panel Mount On-Delay Relay, 3PDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, DC Input, AC/DC Output, Panel Mount On-Delay Relay, 3PDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 12A (Contact), 28VDC (Contact), 1s Adj Min, 120s Adj Max, DC Input, AC/DC Output, Panel Mount On-Delay Relay, 3PDT, Momentary, 2750mW (Coil), 12A (Contact), 28VDC (Contact), 1s Adj Min, 120s Adj Max, AC Input, AC/DC Output, Panel Mount On-Delay Relay, 3PDT, Momentary, 2750mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Panel Mount Off-Delay Relay, DPDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 12A (Contact), 28VDC (Contact), 1s Adj Min, 120s Adj Max, DC Input, AC/DC Output, Panel Mount On-Delay Relay, 3PDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, DC Input, AC/DC Output, Panel Mount On-Delay Relay, 3PDT, Momentary, 2750mW (Coil), 12A (Contact), 28VDC (Contact), 1s Adj Min, 120s Adj Max, AC Input, AC/DC Output, Panel Mount
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum adjustable time delay 10 s 10 s 120 s 120 s 10 s 120 s 10 s 120 s
Minimum adjustable time delay 0.1 s 0.1 s 1 s 1 s 0.1 s 1 s 0.1 s 1 s
body width 35.3 mm 35.3 mm 35.3 mm 35.3 mm 35.3 mm 35.3 mm 35.3 mm 35.3 mm
body height 54.6 mm 54.6 mm 54.6 mm 54.6 mm 54.6 mm 54.6 mm 54.6 mm 54.6 mm
Body length or diameter 38.4 mm 38.4 mm 38.4 mm 38.4 mm 38.4 mm 38.4 mm 38.4 mm 38.4 mm
Coil power 2750 mW 2000 mW 2000 mW 2750 mW 2750 mW 2000 mW 2000 mW 2750 mW
Coil/Input Power Type AC DC DC AC AC DC DC AC
Contact (AC) maximum rated R load 12A@240VAC 12A@240VAC 12A@240VAC 12A@240VAC 12A@240VAC 12A@240VAC 12A@240VAC 12A@240VAC
Maximum contact current (AC) 12 A 12 A 12 A 12 A 12 A 12 A 12 A 12 A
Maximum contact current (DC) 12 A 12 A 12 A 12 A 12 A 12 A 12 A 12 A
Contact (DC) maximum rated R load 12A@28VDC 12A@28VDC 12A@28VDC 12A@28VDC 12A@28VDC 12A@28VDC 12A@28VDC 12A@28VDC
Maximum contact voltage (AC) 240 V 240 V 240 V 240 V 240 V 240 V 240 V 240 V
Maximum contact voltage (DC) 28 V 28 V 28 V 28 V 28 V 28 V 28 V 28 V
Contact/Output Power Type AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC
Electrical life 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s)
Manufacturer's serial number 388 388 388 388 388 388 388 388
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT
Maximum operating temperature 55 °C 55 °C 55 °C 55 °C 55 °C 55 °C 55 °C 55 °C
Minimum operating temperature -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C
physical size 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm 38.4mm X 35.3mm X 54.6mm
Guideline CE; CSA; UL CE; CSA; UL CE; CSA; UL CE; CSA; UL CE; CSA; UL CE; CSA; UL CE; CSA; UL CE; CSA; UL
Relay action MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY
Relay function 3PDT 3PDT 3PDT 3PDT 3PDT DPDT 3PDT 3PDT
Relay type ON-DELAY RELAY ON-DELAY RELAY ON-DELAY RELAY ON-DELAY RELAY ON-DELAY RELAY OFF-DELAY RELAY ON-DELAY RELAY ON-DELAY RELAY
surface mount NO NO NO NO NO NO NO NO
Termination type QUICK CONNECT QUICK CONNECT QUICK CONNECT QUICK CONNECT QUICK CONNECT QUICK CONNECT QUICK CONNECT QUICK CONNECT
Base Number Matches 1 1 1 1 1 1 1 1
