54LS54M/B2AJC

Description
IC,LOGIC GATE,2/2/3/3IN AND-NOR,LS-TTL,LLCC,20PIN,CERAMIC
Categorylogic    logic
File Size65KB,2 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

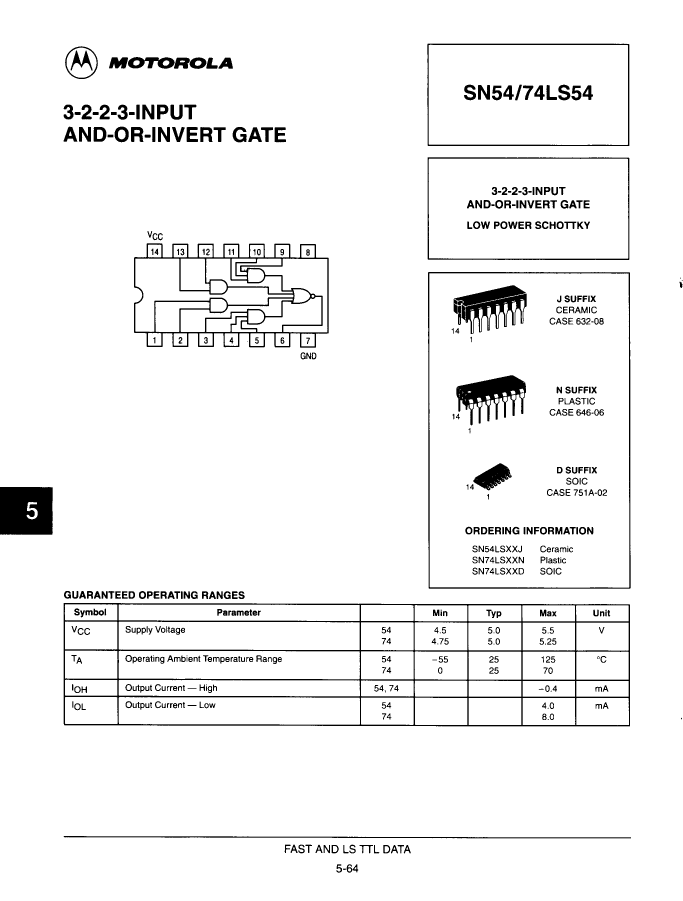

54LS54M/B2AJC Overview

IC,LOGIC GATE,2/2/3/3IN AND-NOR,LS-TTL,LLCC,20PIN,CERAMIC

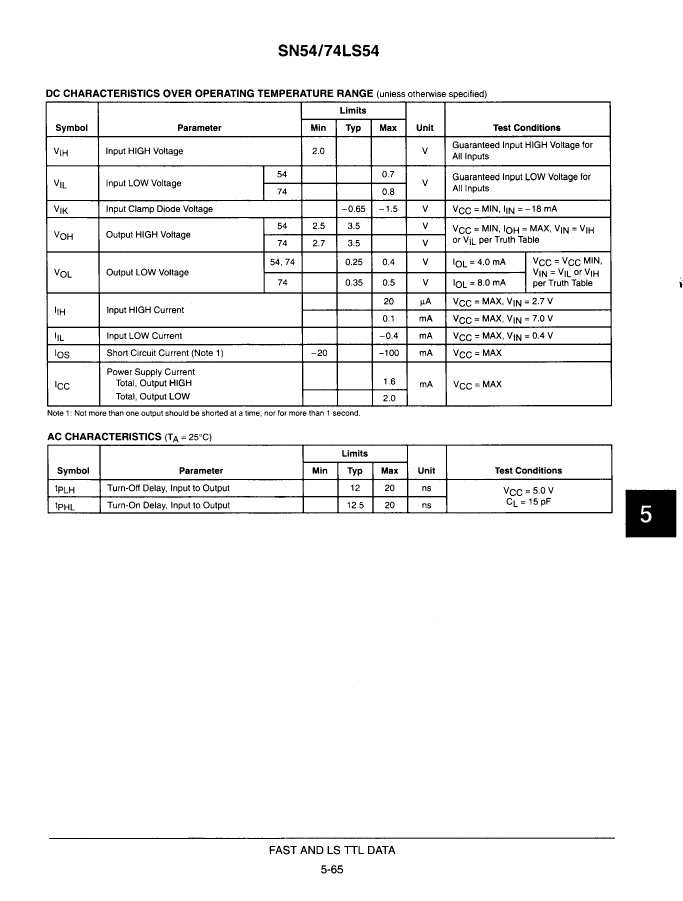

54LS54M/B2AJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNXP
package instructionQCCN, LCC20,.35SQ
Reach Compliance Codeunknown
JESD-30 codeS-XQCC-N20
JESD-609 codee0
Logic integrated circuit typeAND-OR-INVERT GATE
MaximumI(ol)0.004 A
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5 V
Prop。Delay @ Nom-Sup30 ns
Certification statusNot Qualified
Schmitt triggerNO
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Base Number Matches1
