LFXTAL062558REEL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL062558REEL

Preview

LFXTAL062558REEL: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom; CategoryPassive components Crystal/resonator; File Size172KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL062558REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL062558REEL	-	-	View	Buy Now

LFXTAL062558REEL Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom

LFXTAL062558REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	0.1 µW
frequency stability	0.0108%
frequency tolerance	10 ppm
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.0XB1.2XH0.6 (mm)/L0.079XB0.047XH0.024 (inch)
Series resistance	70000 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

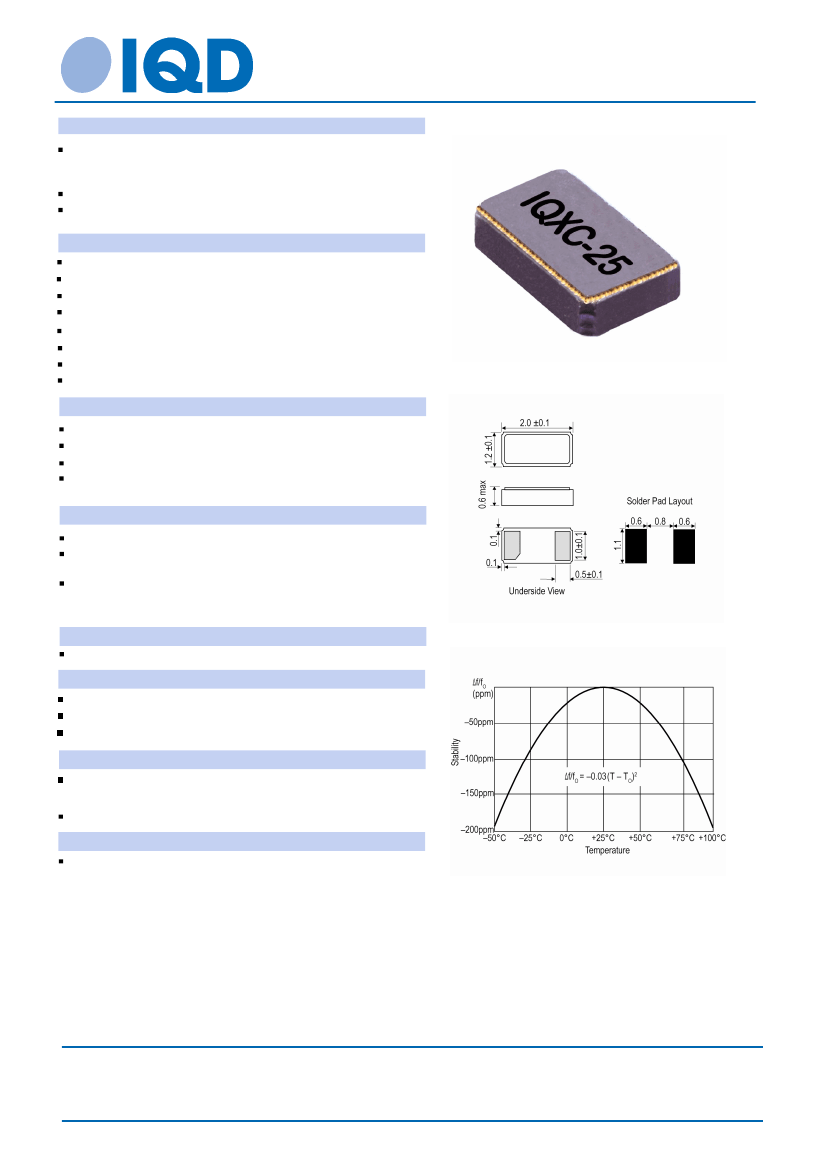

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL062558Reel

Description

2.0 x 1.2mm SMD crystal in a hermetically sealed ceramic

package with an electron beam sealed metal lid.

Suitable for real time clock applications.

Model

IQXC-25

Model Issue number

3

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Operating Temperature Range

32.7680kHz

±10.00ppm

@ 25°C ±5°C

-40.00 to 85.00°C

Overtone Order

Fundamental

Ageing

±3ppm max per year @ 25°C

Frequency Stability Coefficient: -0.03/°C² typ

Motional Capacitance (C1): 7fF typ

Electrical Parameters

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

9.00pF

1.3pF typ, 1.7pF max

0.1μW±0.01μW recommended, ±0.5μW max

***See Technical Notes***

Storage Temperature Range: –40 to 85°C

Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3

mutually perpendicular planes.

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs).

Manufacturing Details

Typical Frequency Stability Characteristics

Maximum Reflow Temperature: 260°C for 5secs max

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Technical Notes

ESR 70k Ohms max

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 8 May 17 9:16 using Part Data Sheet V1.00014
