YP1010KJ Overview

YP10 10K 5%

YP1010KJ Parametric

Parameter Name	Attribute value
Component material	aluminum
Resistor type	Power resistor
Component type	wire wound
Number of resistors	1
Tolerance	5%
Resistance level	1kΩ – 1MΩ
Resistance (Ω)	10K
Rated power (W)	10
Rated voltage	570 VAC
Lead type	Fixed surface mount
Number of terminations	2
Termination type	Install terminals
Installation method	Direct installation
Temperature coefficient (ppm/°C)	±30
Operating temperature range (°C)	-55 – 350
Encapsulation method	Living block - box

Preview

Download Datasheet

View All

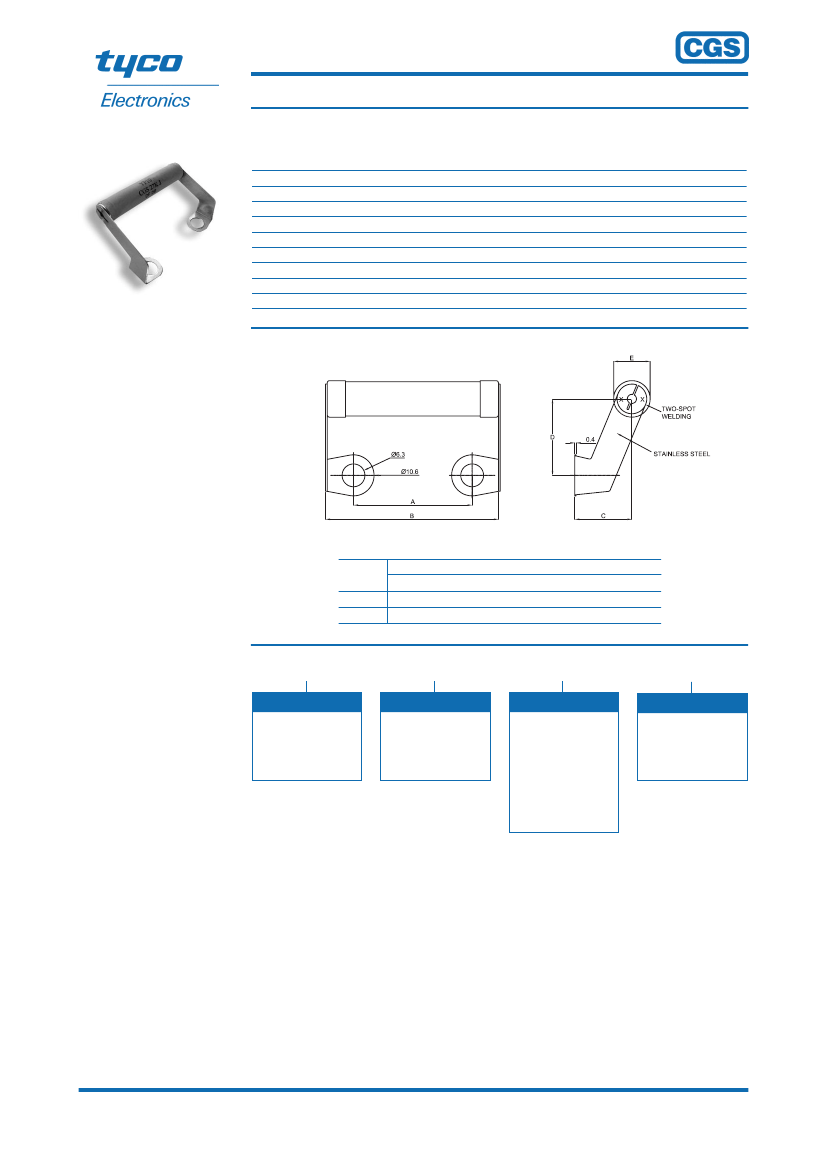

High Power Capacitor Discharge Resistors

Type YP Series

Characteristics -

Electrical

Resistance Values:

Resistance Tolerance:

Temperature Coefficient:

Maximum Voltage:

Derating:

Power Rating:

Stability:

Standard:

Marking:

The YP series resistors are coated with

multilayer silicone to give an excellent

protection to the resistance wire at

temperatures from -55°C to 350°C. The

terminals are designed for quick and

easy mounting on capacitors and have

a mounting pitch of 22.2 and 31.8 mm.

These are wirewound ceramic core

resistors

balancing

aluminium

designed

series

electrolytic

for

voltage

connected

capacitors.

2K, 10K, 18K, 27K, 47K. Other values on request and to order

±5%

±30 ppm/°C (typ.), ±100 ppm/°C (maximum)

825V dc or ac(rms) for YP10, 570V for YP8

Derated linearly to zero at 350°C

10W @ 70°C for YP10 and 8W @ 70°C for YP8

70°C, 1000hr - R/R @ 100% load <±5%

Performance as per BS - CECC 40201-002

Type, Resistance value, Tolerance

Dimensions

These resistors are also suitable for

capacitor voltage discharge safety

applications in high voltage circuits.

Ideally suited for industrial grade

capacitors.

Key Features

Dimensions

A ±1mm

YP8

YP10

22.2

31.8

B max.

C ±1mm

D ±1mm

E ±1mm

9.5

Flameproof Silicone Coating

Stainless Steel Mounting

Terminals for Direct Mounting

on Capacitors

Premium Quality Resistive

Wires

Attractively Priced

Custom Designs Possible

Innovative Design

How to Order

Common Part

YP - Capacitor

Discharge Resistor

Power Rating

8 - 8 Watts

10 -10 Watts

18K

Resistance Value

2K (2000 ohms) 2K0

Tolerance

J - ±5%

10K (10000 ohms) 10K

K - ±10%

18K (18000 ohms) 18K

27K (27000 ohms) 27K

47K (47000 ohms) 47K

Literature No. 1773300

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
