HSA25R68J

Description
HSA25 R68 5%
CategoryPassive components
File Size26KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

HSA25R68J Online Shopping

Suppliers Part Number Price MOQ In stock
HSA25R68J - - View Buy Now

HSA25R68J Overview

HSA25 R68 5%

HSA25R68J Parametric

Parameter NameAttribute value
Component materialmetal cladding
Resistor typePower resistor
Component typewire wound
Number of resistors1
Tolerance5%
Resistance levelup to 1 kΩ
Resistance (Ω).68
Rated power (W)25
Rated voltage500 VDC
Lead typeFixed leads
Number of terminations2
Termination typeLug
Installation methodChassis installation
Dimensions (mm)51 x 28 x 15
Temperature coefficient (ppm/°C)±50
Encapsulation methodLive block - plate
Pomona
®

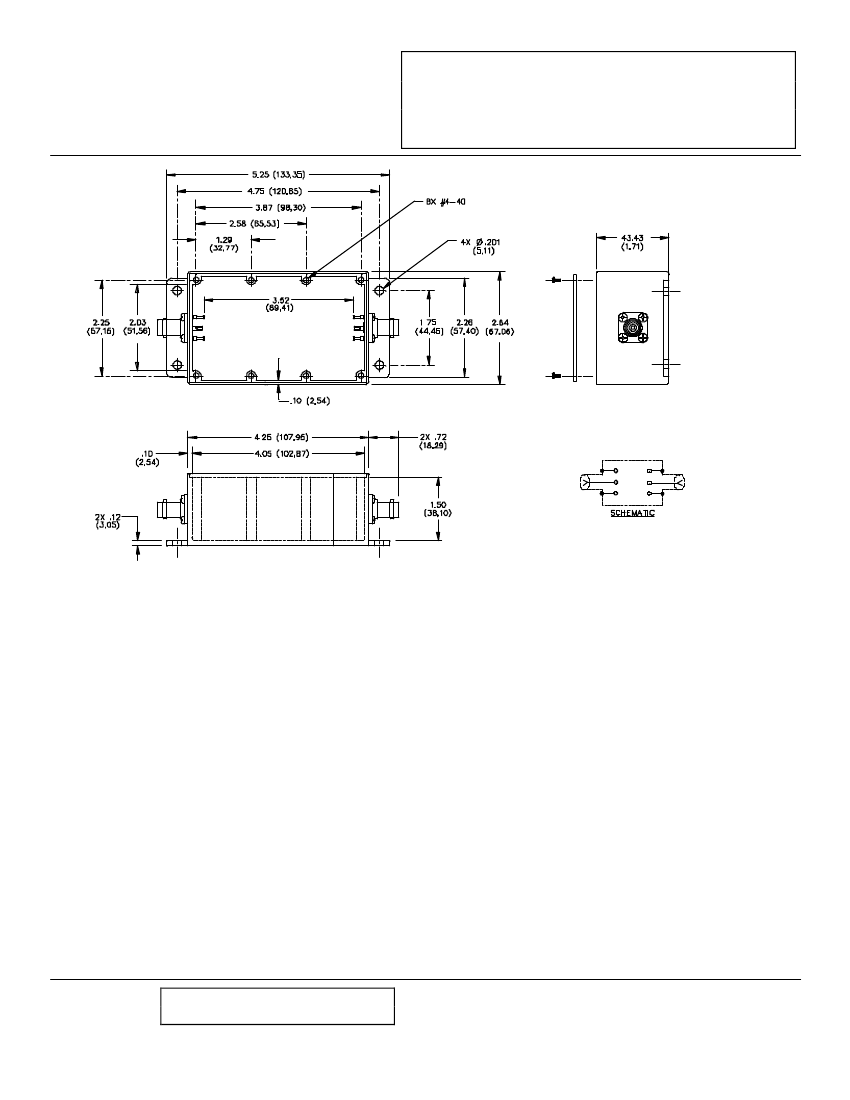

Model 2902
Size C Aluminum Box With Cover
BNC Female/Female
MATERIALS:
Connector: BNC (F)
Body: Tarnish Resistant Plating, Center Contact: Gold Plated Beryllium Copper
Solder Turret Terminal Screws: Steel
Shielded Housing: Die cast aluminum alloy A380 or A384.
Finish: Blue baked enamel per Fed. Std. 595 25109 over Phosphoric Etch
Cover: 2.03mm (.080) thick aluminum #1100-H14
Finish: Clear anodized per MIL-A-8625
Screws: 4 each #4-40 x 6.35mm (1/4”) per MS 35208-12 with clear irridite dip.
8 each #4-40 x 6.35mm (1/4”) Phillips binding head. Steel
RATINGS:
Operating Voltage: Inner conductor/Shield: 1000 VRMS Max.
Operating Temperature: -55ºC to +150ºC
Nominal Impedance: 50 Ohms
ORDERING INFORMATION:
Model 2902
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90163
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
S:\Engineering \Release\DataSheets\FlukeDataSheet\d2902_1_01.doc
