Thick Film Power Resistors
Type BDS100 Series
Key Features
I
100W in a 9.5cm
2
footprint
• Gives an impressive
power density of
10.5W/cm
2
Virtually inductance-free
• Inductance < 40nH
Wide resistance range:
0.47Ω to 1MΩ
• Coupled with 1%
tolerance gives ultimate
design flexibility
Multiple terminal
configurations and
multi-resistor packages
• The space saving
solution
Partial discharge
<10pC at 2kV
• Guaranteeing quality,
reliability and long life
I
I
I
I
Applications
I
I
I
I
I
Snubbing
(Low inductance)
Balancing Resistor
(Multi-resistor package)
Filter (Low inductance)
High Voltage
High Frequency

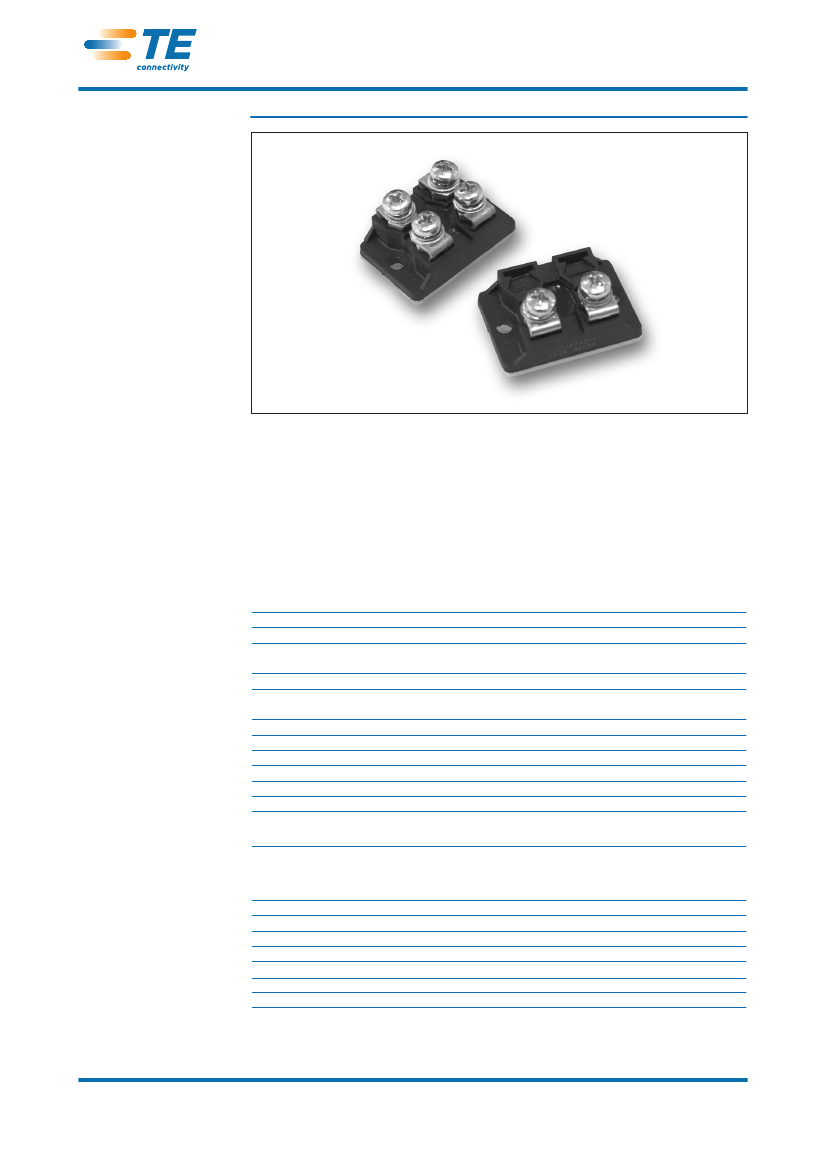

With less than 40nH inductance and a 100Watt power rating in an easy-mounting
38mm x 25mm Isotop case, the BDS100 offers high power density over a wide range of
ohmic values (R47 – 1M0) and benefits from 10 years experience in the field. Available in
6 resistor configurations with 2 or 4 easy to connect terminals, the resistors are made from
quality materials for optimum reliability and stability with very low partial discharge.
TE Connectivity can test resistors to conform to relevant customer specifications, and will
advise on the use of resistors for pulse energy and high voltage applications (HV designs
available). Resistors with alternative terminations or flying leads are available, and custom
designs are welcome. This product is available via distribution.
Characteristics -Electrical
Resistance Range:
Resistance Tolerance:
TCR:
Rated Power:
Capacitance:
Series Inductance:
Limiting Element Voltage:
Isolating Voltage:
Single Shot Voltage:
Insulation Resistance:
Partial Discharge:
Heat Dissipation:
(100W or Less)
(Terminal to Heatsink)
1.5/50ms
(at 500V dc)
at 2kV
R<1Ω
R>1Ω
Heatsink: 115°C / 100°C / 60°C
Parallel
R47 - 1MO
± 10%, 5% (Tighter by discussion)
± 250ppm/°C
± 150ppm/°C
25W / 50W / 100W
15pF
To Earth
500Vdc/ac rms
2.5kVac rms
4kV
>100GΩ
<10pC
40pF
40nH (Maximum)
Although the use of proprietary heat sinks with lower thermal resistance is
acceptable, up rating is not recommended. The use of proprietary
heat sink compound to improve thermal conductivity is essential.
Characteristics - Environmental
Endurance (Rated Power):
Humidity Load Life:
Temperature Cycling:
Operating Storage Temp:
Short Term Overload:
Vibration:
Bump:
2000cyc. at P
Rated
56 Days, 40°C, 95% RH
-55°C to +125°C, 5cycles
-55°C to +125°C
3 x P
Rated
(10s)
10/500Hz
40g 4000 bumps
ΔR 0.25% Typ
ΔR 0.25% Typ
ΔR 0.25% Typ
ΔR 0.25% Typ
ΔR 0.25% Typ (I.R.>10GΩ)
ΔR 0.25% Typ
1773308 CIS BI 11/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Thick Film Power Resistors
Type BDS100 Series
Characteristics - Mechanical
Terminal Size:
Terminal Torque (max.):
Creepage Distance:
Clearance:
Heatsink Surface Finish:
Heatsink Flatness:
Weight:
Terminal to Heatsink
Terminal to Terminal
R
a
M4
1.3Nm
10mm
10mm
3mm
< 6μm
0.05mm
35g
Dimensions
37.8 ±0.2
30 ±0.15
4
12 ±0.2
3
M4 Nuts
15.5 ±0.2
4
25.4 ±0.2
12 ±0.2
37.8 ±0.2
30 ±0.15
3
M4 Nuts
15.5 ±0.2
1
ø4.2
15 ±0.2
2
ø4.2
3.8 ±0.2
4.5 ±0.2
ø4.2
1
15 ±0.2
2
3.8 ±0.2
4.5 ±0.2
Terminal Circuit Type
D (Isolated)
A (Standard)
1
1
2
4
E (Network Tapped)
B (Voltage Sense)
1
1
2
4
4
C (Special)
1
3
1
2
3
F (Network 3 Res.)
4
3
3
2
3
2
Derating Curve
100
Pulse Energy
10
80
Power (W)
60
40
20
0
0
20
40
60
80
Heatsink Temp. (degC)
100
120
0.1
0.01
0.1
Time (msecs)
1
10
Energy (J)
0.1
How to Order
BDS 2
Common Part
BDS 2 (2 Terminal)
BDS 4 (4 Terminal)
A: Standard
B-F: See above
100 - 100 Watts
at 70°C
A
Circuit Type
100
Power Dissipation
1K0
Resistance Value
0.6Ω (600mΩ) R60
25.4 ±0.2
J
Tolerance
F - 1%
1Ω (1000mΩ) 1R0
1KΩ (1000Ω) 1KO
1MΩ (1000000Ω) 1MO
J - 5%
K - 10%
