ER2D-T3-LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ER2D-T3-LF

ER2D-T3-LF: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size53KB，4 Pages; ManufacturerWon-Top Electronics Co., Ltd.; Websitehttps://www.wontop.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ER2D-T3-LF Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN

ER2D-T3-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Won-Top Electronics Co., Ltd.
package instruction	SMB, 2 PIN
Reach Compliance Code	not_compliant
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

WTE

POWER SEMICONDUCTORS

ER2A – ER2J

2.0A SURFACE MOUNT GLASS PASSIVATED SUPERFAST DIODE

Features

Glass Passivated Die Construction

Ideally Suited for Automatic Assembly

Low Forward Voltage Drop, High Efficiency

Surge Overload Rating to 50A Peak

Low Power Loss

Super-Fast Recovery Time

Plastic Case Material has UL Flammability

Classification Rating 94V-O

SMB/DO-214AA

Dim

Min

Max

3.30

3.94

4.06

4.70

1.91

2.11

0.152

0.305

5.08

5.59

2.13

2.44

0.051

0.203

0.76

1.27

All Dimensions in mm

Mechanical Data

Case: SMB/DO-214AA, Molded Plastic

Terminals: Solder Plated, Solderable

per MIL-STD-750, Method 2026

Polarity: Cathode Band or Cathode Notch

Marking: Type Number

Weight: 0.093 grams (approx.)

Lead Free: For RoHS / Lead Free Version,

Add “-LF” Suffix to Part Number, See Page 4

Maximum Ratings and Electrical Characteristics

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

= 110°C

Symbol

RRM

RWM

R(RMS)

ER2A

=25°C unless otherwise specified

ER2B

ER2C

ER2D

ER2E

ER2G

ER2J

Unit

100

150

105

200

140

2.0

300

210

400

280

600

420

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave superimposed on

rated load (JEDEC Method)

Forward Voltage

Peak Reverse Current

At Rated DC Blocking Voltage

Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

Typical Thermal Resistance (Note 3)

Operating and Storage Temperature Range

= 2.0A

= 25°C

= 100°C

FSM

STG

0.95

1.25

5.0

500

-65 to +150

1.7

µA

°C/W

°C

Note: 1. Measured with I

= 0.5A, I

= 1.0A, I

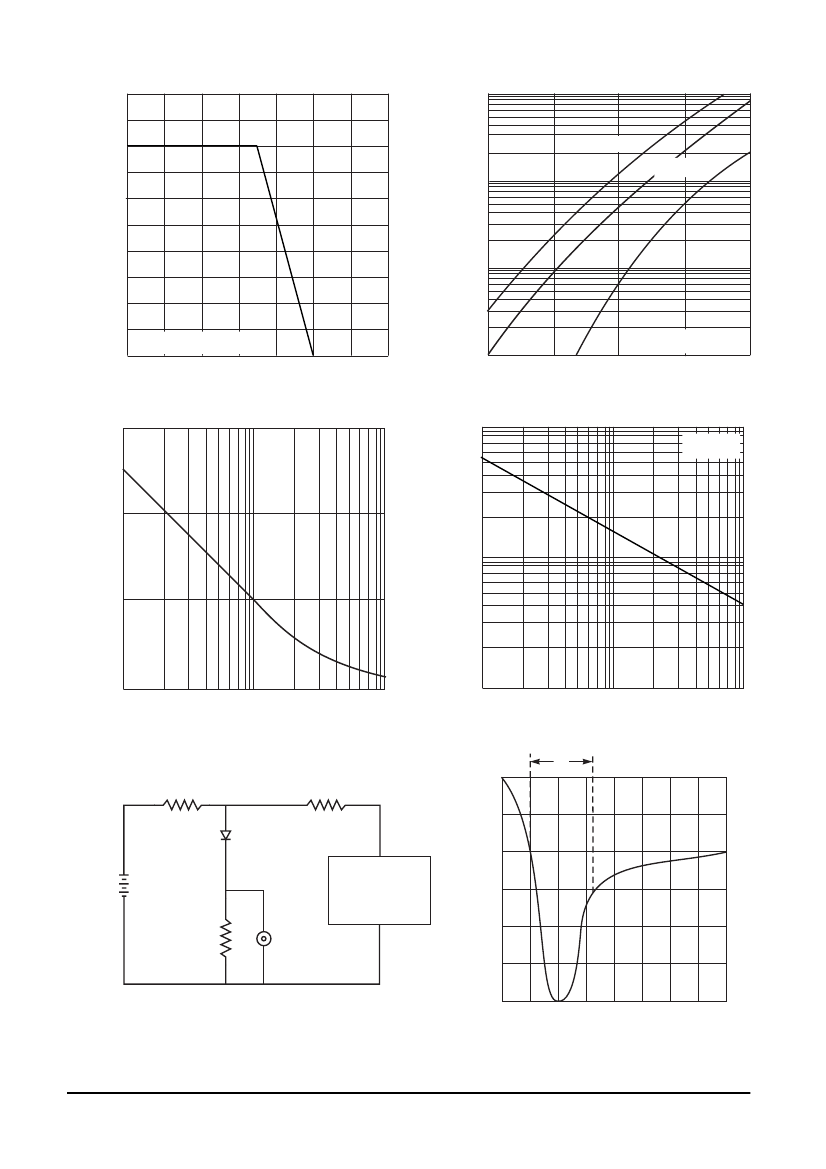

= 0.25A. See figure 5.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC.

3. Mounted on P.C. Board with 8.0mm

land area.

ER2A – ER2J

1 of 4
