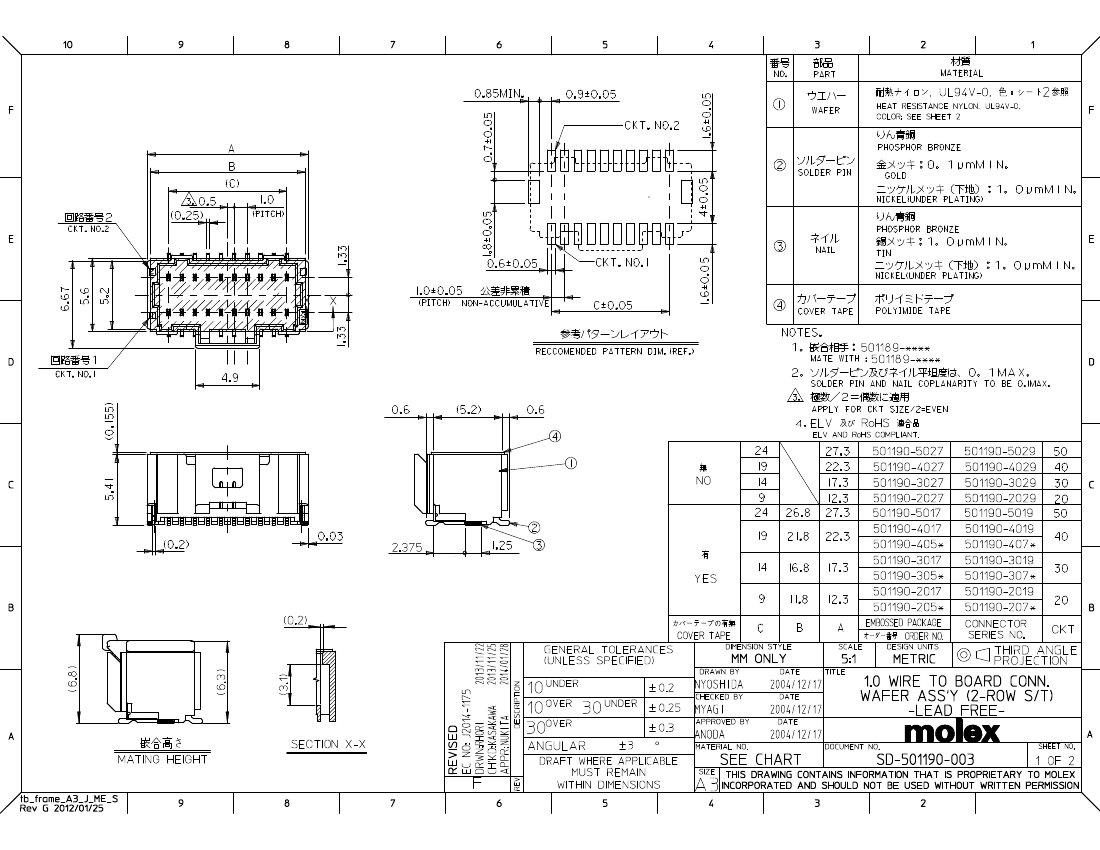

501190-2051

Description
Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size408KB，5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance

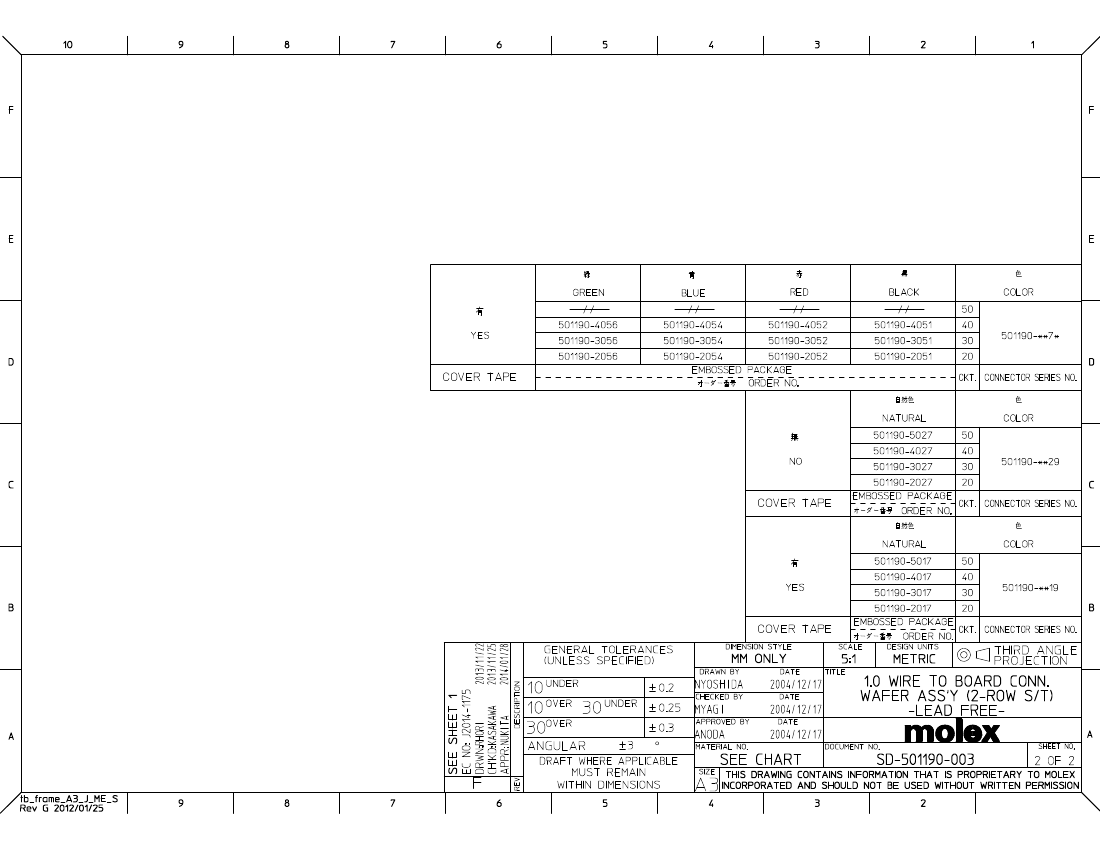

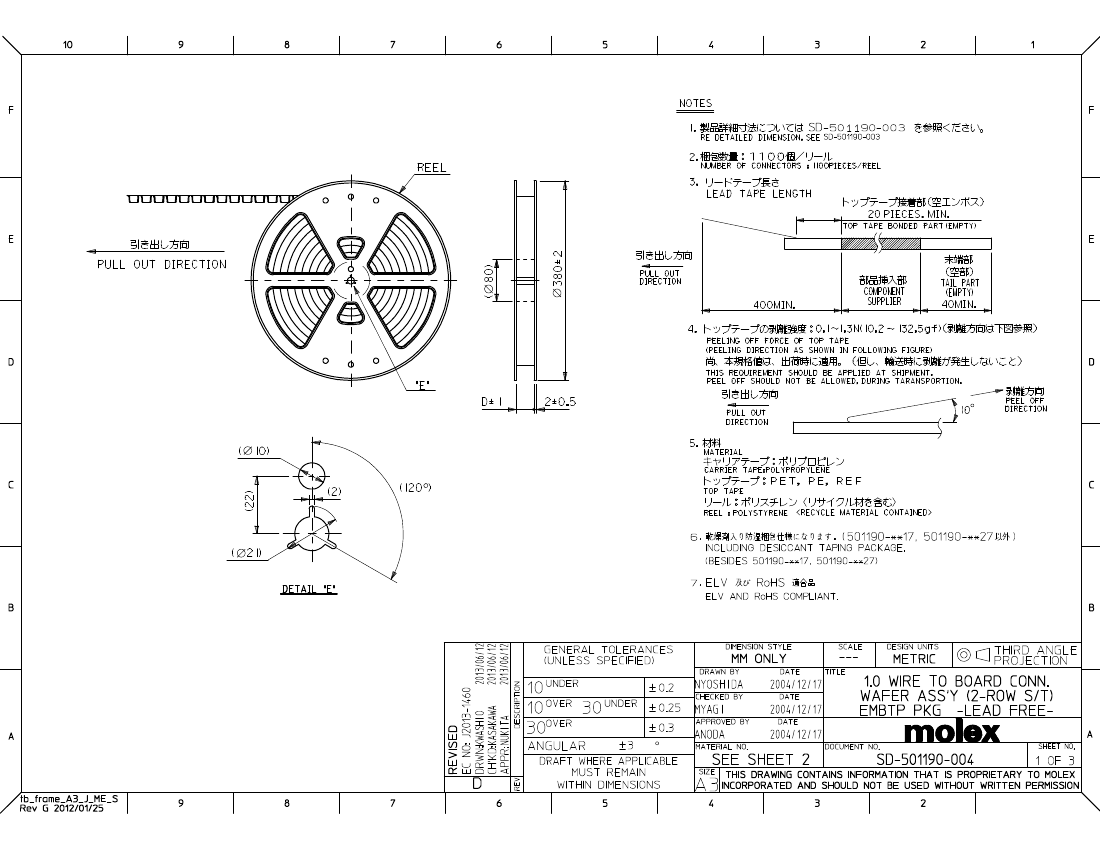

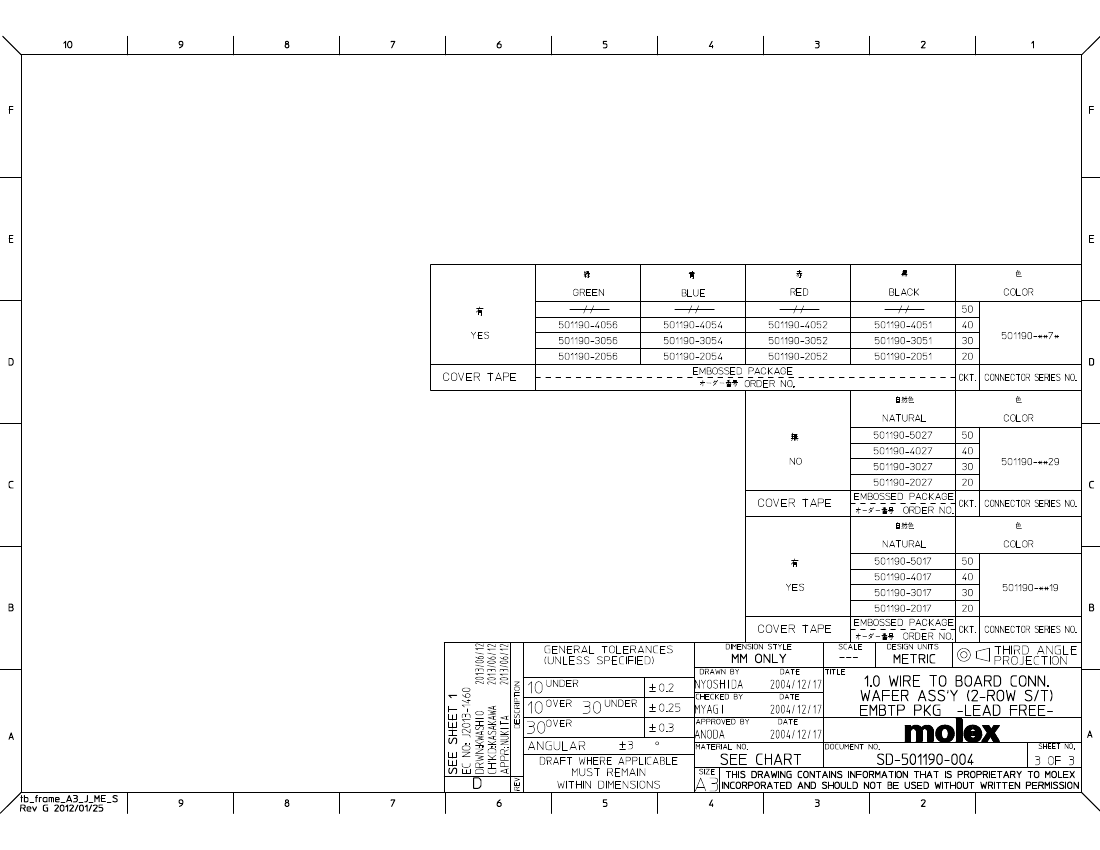

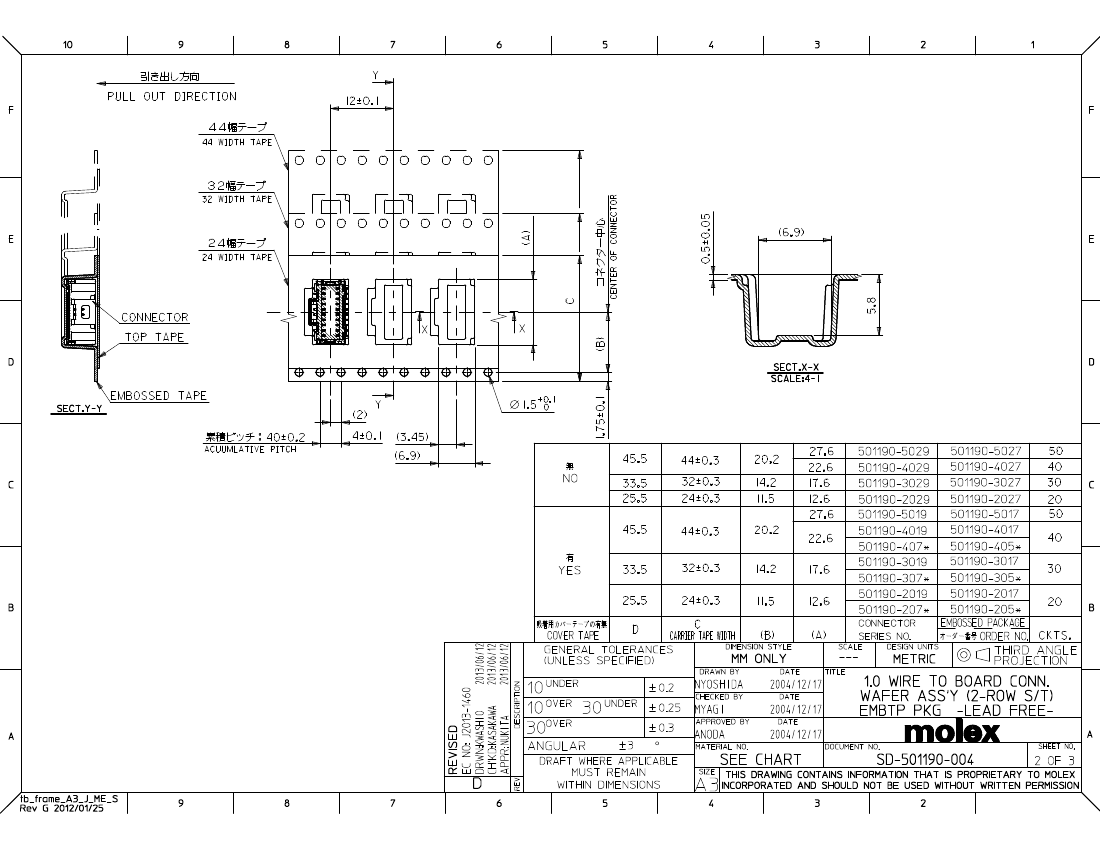

Download Datasheet Parametric Compare View All

501190-2051 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

501190-2051 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Factory Lead Time8 weeks
body width0.263 inch
subject depth0.213 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Dielectric withstand voltage350VAC V
Durability30 Cycles
Insulation resistance100000000 Ω
Manufacturer's serial number501190
Plug contact pitch0.039 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.588 mm
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts20
Base Number Matches1
