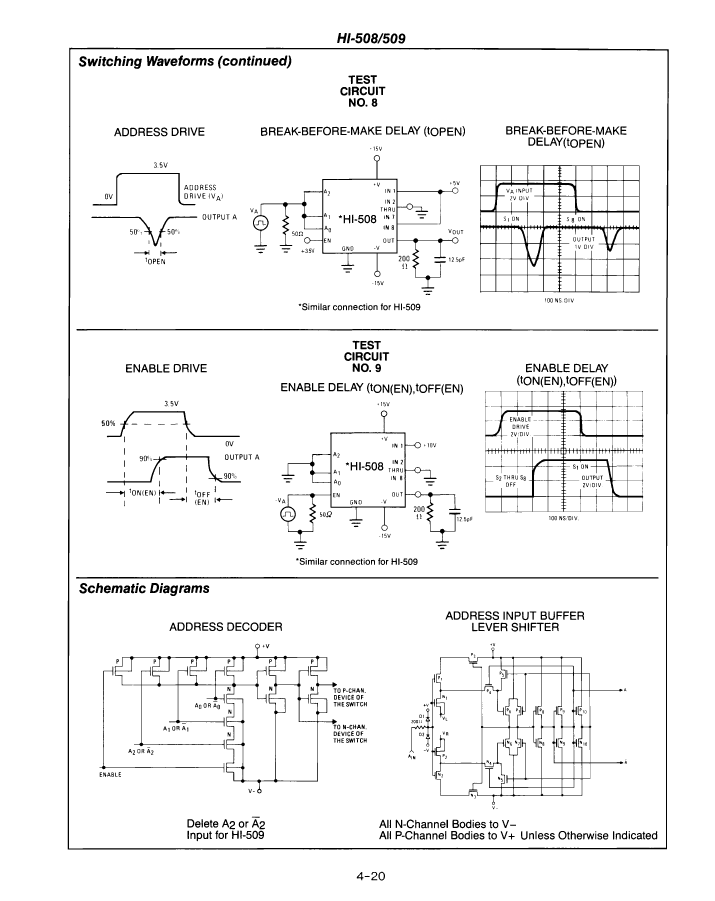

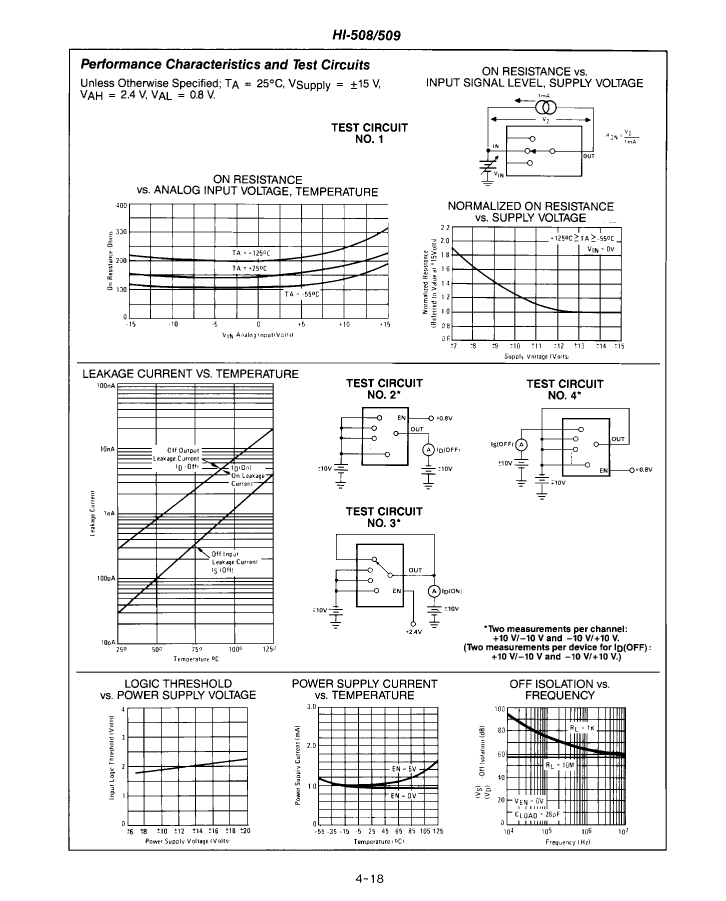

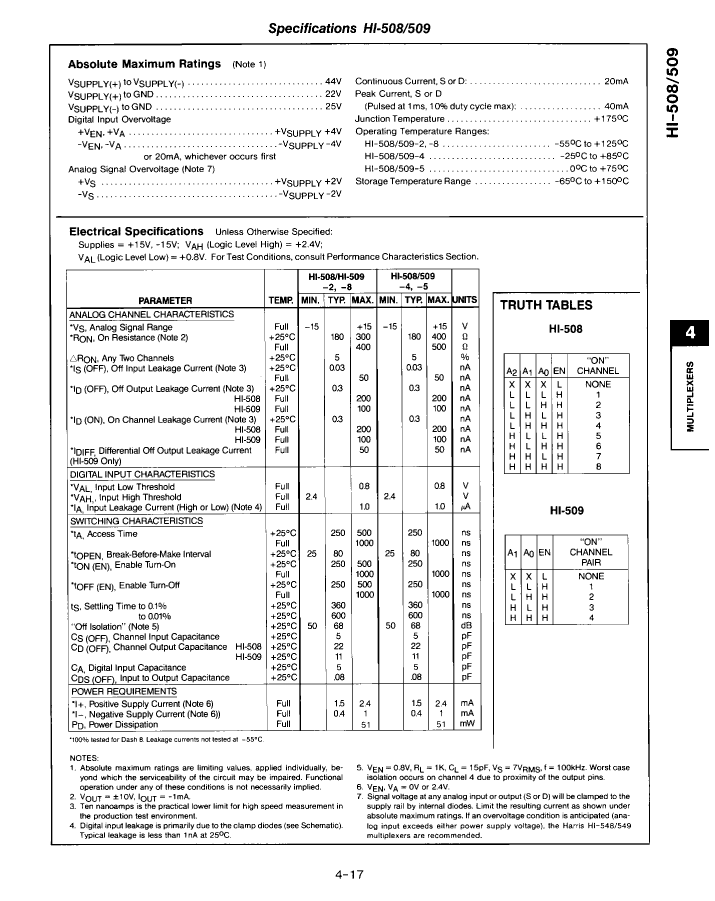

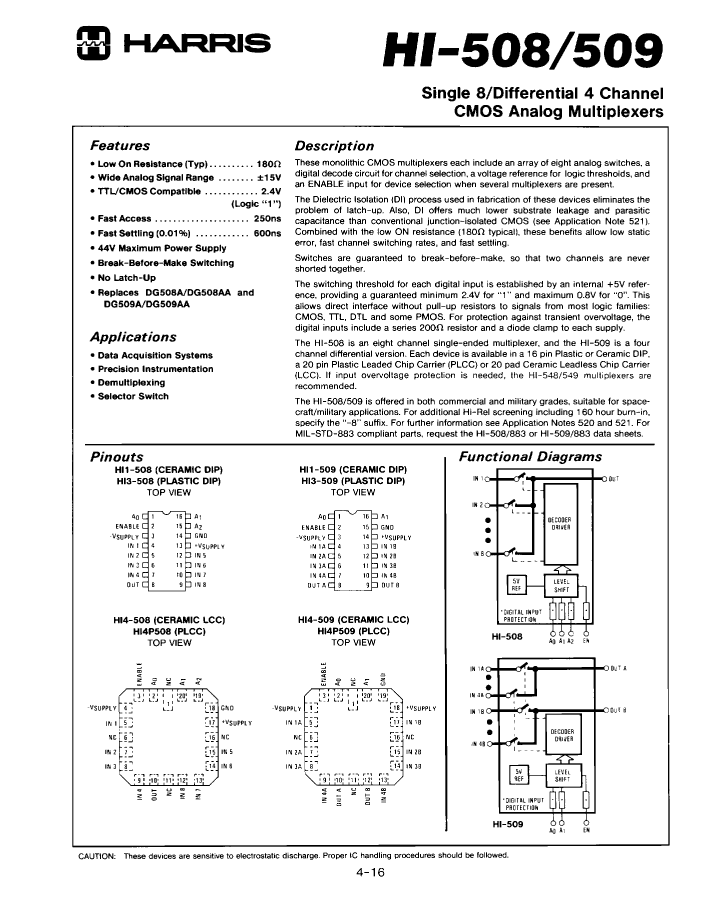

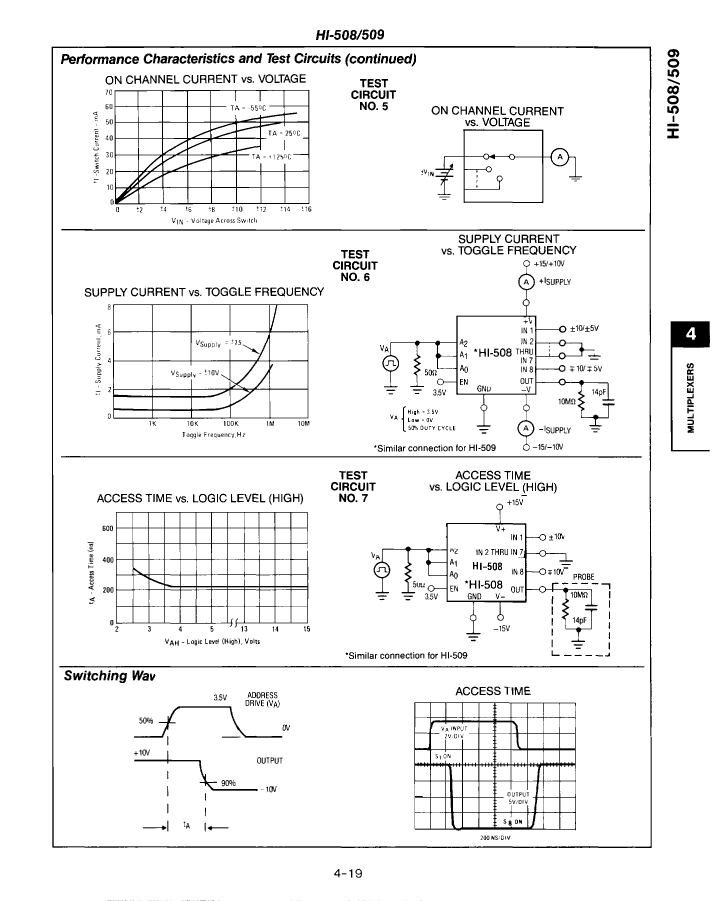

Preview

HI4-0509-8: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, CQCC20; CategoryAnalog mixed-signal IC The signal circuit; File Size226KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HI4-0509-8 Overview

Differential Multiplexer, 1 Func, 4 Channel, CMOS, CQCC20

HI4-0509-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	20
Nominal off-state isolation	68 dB
On-state resistance matching specifications	15 Ω
Maximum on-state resistance (Ron)	300 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2.4 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	500 ns
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

HI4-0509-8 Related Products

	HI4-0509-8	HI4-0508-8
Description	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CQCC20	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CQCC20
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	S-CQCC-N20	S-CQCC-N20
JESD-609 code	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	4	8
Number of functions	1	1
Number of terminals	20	20
Nominal off-state isolation	68 dB	68 dB
On-state resistance matching specifications	15 Ω	15 Ω
Maximum on-state resistance (Ron)	300 Ω	300 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum signal current	0.02 A	0.02 A
Maximum supply current (Isup)	2.4 mA	2.4 mA
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
Maximum disconnect time	500 ns	500 ns
Maximum connection time	500 ns	500 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
