FACT SHEET
i.MX RT1170 MCU FAMILY
i.MX RT1170 CROSSOVER MCUs
Ushering in the GHZ ERA
i.MX RT1170 crossover MCUs are setting speed records
at 1GHz. This ground-breaking family combines superior
computing power and multiple media capabilities with ease
of use and real-time functionality.
PRODUCT HIGHLIGHTS
• High-performing Arm
®
Cortex
®
-M based device
– Up to 6468 total CoreMarks
®
with Cortex-M7 @
1 GHz + Cortex-M4 @ 400 MHz
• Real-time, low-latency response
– Up to 2 MB SRAM:
•
512 KB Cortex-M7 TCM + 128 KB ECC
•
256 KB Cortex-M4 TCM with ECC
•
1 MB on-chip RAM + 128 KB ECC
– Fast real-time response with latency as low as 12 ns
• Low-power operation
– Low dynamic power with integrated DC-DC converter
– Low-power run modes at 24 MHz
• Highly integrated
– Advanced multimedia for GUI and enhanced HMI
•
Multiple display and CMOS sensor interfaces
•
OpenVG
TM
graphics accelerator running up to 500 MHz
i.MX RT1170 CROSSOVER MCU FAMILY BLOCK DIAGRAM
i.MX RT1170 CROSSOVER MCU
System Control
DC-DC and LDO
Main CPU Platform
Arm
®
Cortex
®
-M7 (up to 1 GHz)
32 KB D-cache w/ ECC
FPU
MPU
Up to 512 KB TCM w/ ECC
Secondary CPU Platform
Arm Cortex-M4 (up to 400 MHz)
PLL, OSC
16KB D-cache
w/ Parity Check
FPU
MPU
256 KB TCM w/ ECC
Multimedia
2D GPU with Vector Graphics Acceleration
Semaphore
2D Graphics Acceleration (PXP)
Resize, CSC, Overlay, Rotation
MIPI
®
CSI
MIPI DSI
Internal Memory
Up to 2MB SRAM Total
(Configurable ECC)
ROM
External Memory
Dual Channel QSPI FLASH x2 w/ Encrypted Execution
HyperRAM™/HyperFLASH™/PSRAM
External Memory Controller w/ Memory Crypto Engine
8/16/32-bit SDRAM/LPSDRAM
8/16-bit Parallel NAND/NOR Flash/FPGA/SRAM/8080
Security
AES-128/256
RSA4096
Code Watchdog Timer
Secure RAM
DES/3DES
Secure RTC
eFuse
SHA-1/SHA-2
Elliptic Curve Cryptography
SRAM PUF/UDF
HAB
Tamper Detection
Memory Crypto Engine
TRNG
Parallel CSI
Parallel LCD
16KB I-cache
w/ Parity Check
NVIC
32 KB I-cache w/ ECC
NVIC
ASRC
3 x CAN-FD
8-ch. DMIC
2 x eMMC/SD
2 x EMVSIM
10/100 ENET w/ IEEE
®
1588
1Gbps ENET w/ AVB
1Gbps ENET w/ TSN
2 x FlexIO
Timers
1 x EWM
4 x FlexPWM
6 x GP Timer
Analog
2 x 12b ADC 4.2 Msps
1 x 12b DAC
4 x Analog Comparator w/ 8b DAC
4 x Quadrature ENC
4 x QuadTimer
4 x Watchdog
• Extensive memory interface options
– Quad/Octal SPI and HyperFlash™/HyperRAM™,
SDRAM, NAND/NOR Flash, SD/eMMC, PSRAM,
LPSDRAM
• Security
– Hardware Elliptic Curve Cryptography
– Hardware-protected keys for secure boot
– AES engine for data encryption
– On-the-fly AES decryption for execute-in-place (NOR)
from Quad/Octal SPI/HyperFlash
– Part of the EdgeLock™ Assurance program, more
details available at nxp.com/EdgeLockAssurance
TARGET APPLICATIONS
• ML-based edge applications
• Industrial computing designs
• Motor control and power conversion
• Personal health and fitness
• Voice-enabled IoT devices
FAMILY BLOCK DIAGRAM
Connectivity
GPIO
HS GPIO
6 x I
2
C
4 x I
2
S/SAI
8 x 8 Keypad
S/PDIF Tx/Rx
6 x SPI
12 x UART
2 x USB 2.0 OTG w/ PHY
2 x eDMA
Message Unit
Resource Domain Control
Secure JTAG, SWD
Temp Monitor
Available on certain products within the family
Available on certain products within the fami y
l
i.MX RT1170 MCU FAMILY CONFIGURATIONS
Device
Arm
®
Cortex
®
-M7
Cortex-M4
MIPI CSI / DSI
OpenVG™ 1.1
CSI / LCDIF / PXP
Ethernet
TSN
Tamper Protection
HAB/AES/DES
Packages
Qualification/
Temperature
i.MX RT1171
1 GHz/800 MHz*
–
–
–
–
Y
–
–
Y
289 MAPBGA
Commercial/0-95 °C
Industrial/-40 – 105 °C
Auto/-40 – 125 °C
MIMXRT1171DVMAA
Part Numbers
MIMXRT1171CVM8A
MIMXRT1171AVM8A
i.MX RT1172
1 GHz/800 MHz*
–
Y
Y
Y
Y
-
-
Y
289 MAPBGA
Commercial/0 – 95 °C
Industrial/-40 – 105 °C
Auto/-40 – 125 °C
MIMXRT1172DVMAA
MIMXRT1172CVM8A
MIMXRT1172AVM8A
MIMXRT1173CVM8A
i.MX RT1173
800 MHz
400 MHz
Y
Y
Y
Y
-
Y
Y
289 MAPBGA
Industrial/-40 – 105 °C
i.MX RT1175
1 GHz/800 MHz*
400 MHz
-
-
-
Y
-
-
Y
289 MAPBGA
Commercial/0 – 95 °C
Industrial/-40 – 105 °C
Auto/-40 – 125 °C
MIMXRT1175DVMAA
MIMXRT1175CVM8A
MIMXRT1175AVM8A
i.MX RT1176
1 GHz/800 MHz*
400 MHz
Y
Y
Y
Y
Y
-
Y
289 MAPBGA
Commercial/0 – 95 °C
Industrial/-40 – 105 °C
Auto/-40 – 125 °C
MIMXRT1176DVMAA
MIMXRT1176CVM8A
MIMXRT1176AVM8A
*First speed listed is speed for commercial-qualified device. Second speed listed is for industrial- and automotive-qualified devices.

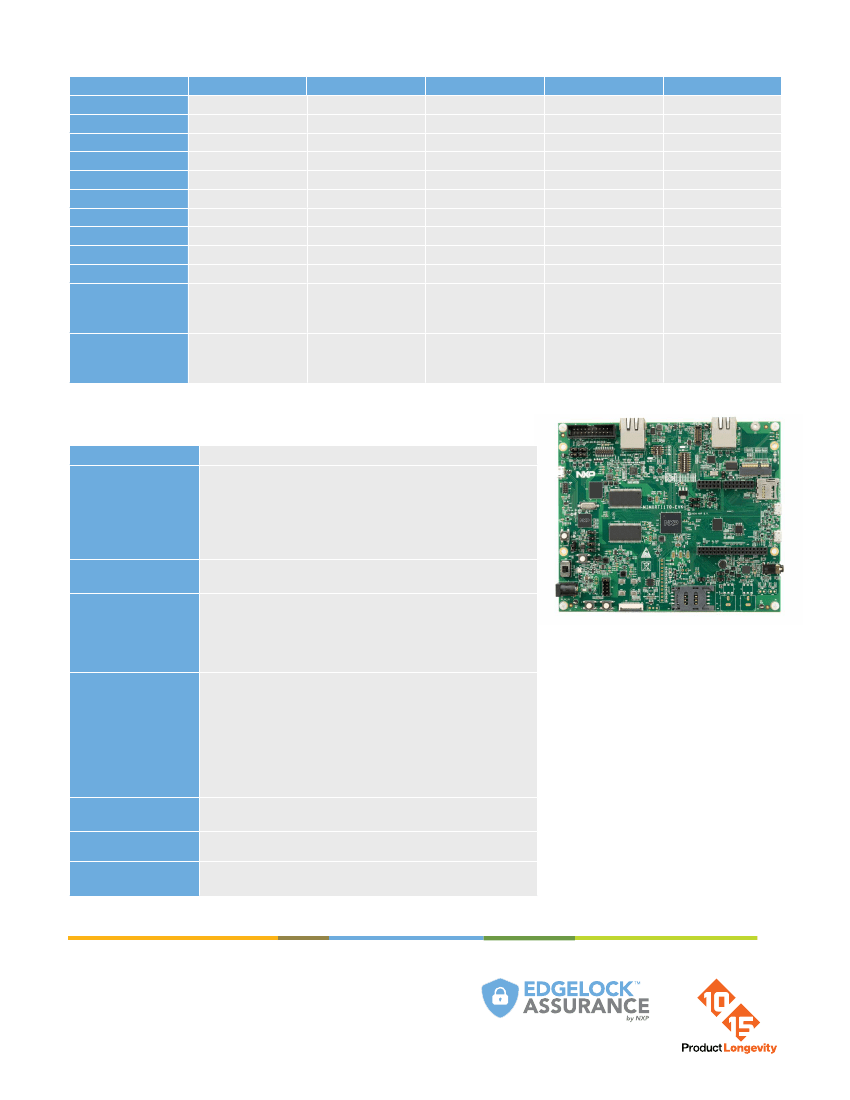

i.MX RT1170 EVK FEATURES
Processor
• MIMXRT1176DVMAA
• 512 Mbit SDRAM memory
• 512 Mbit Octal flash
Memory
• 128 Mbit QSPI flash
• 2 Gbit Raw NAND flash
• 64 Mbit LPSPI flash
• TF socket for SD card
Graphics
• MIPI LCD connector
• MIPI camera sensor connector
• Audio codec
• 4-pole audio headphone jack
Audio
• External speaker connection
• Microphone (analog and digital)
• SPDIF connector
• 2 x Micro USB OTG connectors
• Ethernet (10/100/1000M) connector
• Ethernet (10/100M) connector
Connectivity
• M.2 connector
• CAN transceivers
• Arduino
®
interface
• FRDM motor control interface
• SIM card slot
Debug
Sensor
Ordering Information
• JTAG connector
• Onboard DAP-Link debugger
• 6-Axis ecompass (3-Axis magnetometer, 3-Axis accelerometer) sensor
FXOS8700CQ
• MIMXRT1170-EVK
• RK055HDMIPI4M (5.5” 720p display)
GET STARTED NOW
The i.MX RT1170 evaluation kit (EVK)
helps you take your design to the
next level by reducing complexity and
accelerating time to market.
SOFTWARE AND TOOLS
NXP’s
MCUXpresso software and
tools
offer comprehensive development
solutions designed to optimize, ease
and accelerate embedded system
development of applications based
on Cortex-M core devices from NXP,
including its general purpose, crossover
and Bluetooth-enabled MCUs.
nxp.com/iMXRT1170
NXP, the NXP logo and Kinetis and eIQ are trademarks of NXP B.V. All other product or service names are
the property of their respective owners. OpenVG and the OpenVG logo are trademarks of the Khronos
Group, Inc. Arm and Cortex are trademarks or registered trademarks of Arm Limited (or its subsidiaries) in the
US and/or elsewhere. The related technology may be protected by any or all of patents, copyrights, designs
and trade secrets. All rights reserved. © 2021 NXP B.V.
Document Number: IMXRT1170FAMFS REV 2
