2VQ05CTFTRRH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 2VQ05CTFTRRH

2VQ05CTFTRRH: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 50V V(RRM), Silicon, TO-252AA; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

2VQ05CTFTRRH Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 50V V(RRM), Silicon, TO-252AA

2VQ05CTFTRRH Parametric

Parameter Name	Attribute value
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	20 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	1000 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

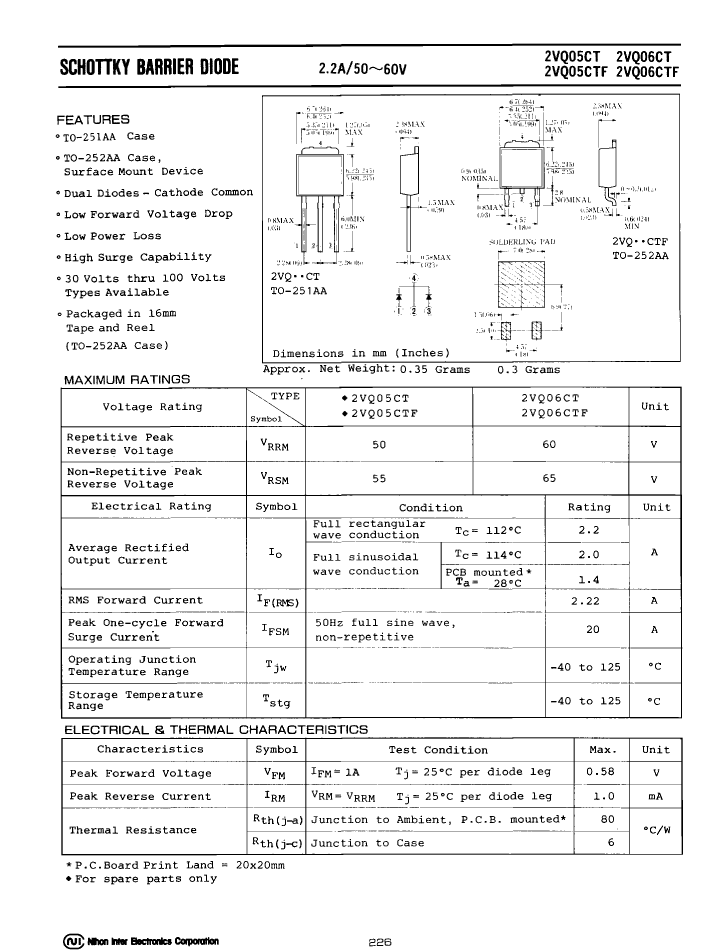

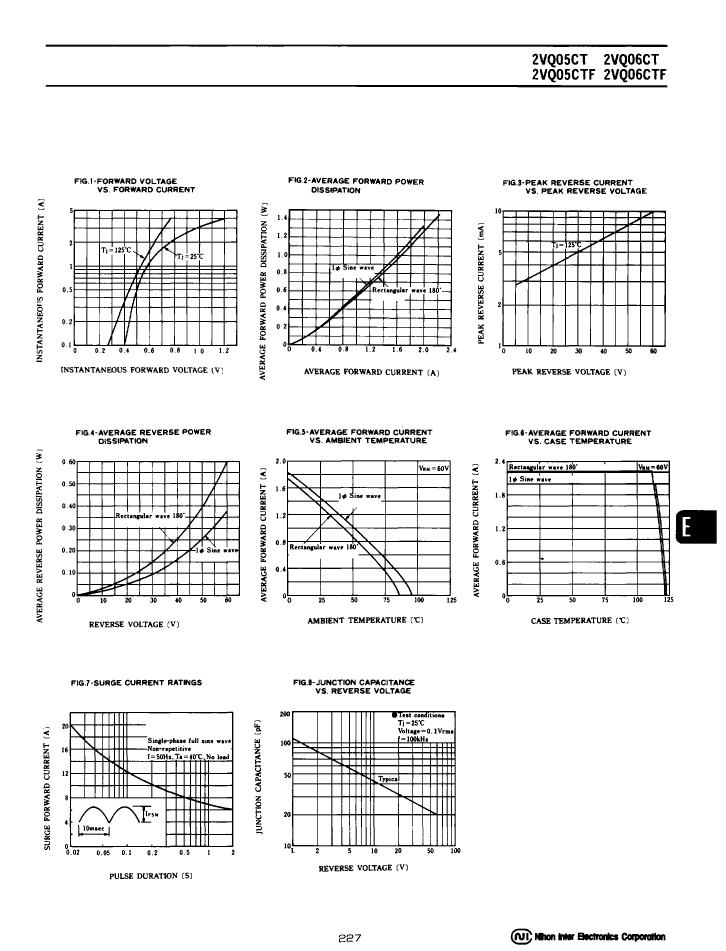

Preview

Download Datasheet

View All

2VQ05CTFTRRH Related Products

	2VQ05CTFTRRH	2VQ06CTFTRRH	2VQ06CTFTRLH	2VQ05CTFTR	2VQ06CTFTR	2VQ05CTFTRLH
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 50V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 60V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 60V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 50V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 60V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 50V V(RRM), Silicon, TO-252AA
package instruction	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V	0.58 V	0.58 V	0.58 V	0.58 V	0.58 V
JEDEC-95 code	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Maximum non-repetitive peak forward current	20 A	20 A	20 A	20 A	20 A	20 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	60 V	60 V	50 V	60 V	50 V
Maximum reverse current	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1
