GRM022B30J682ME19L datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GRM022B30J682ME19L

GRM022B30J682ME19L: DescriptionCeramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, B, 10% TC, 0.0068uF, Surface Mount, 01005, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size89KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM022B30J682ME19L Overview

Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, B, 10% TC, 0.0068uF, Surface Mount, 01005, CHIP, ROHS COMPLIANT

GRM022B30J682ME19L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 01005
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Capacitor GRM02 L=0.4mm W=0.2mm T=0.2mm
capacitance	0.0068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.2 mm
JESD-609 code	e3
length	0.4 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
size code	01005
surface mount	YES
Temperature characteristic code	B
Temperature Coefficient	10% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

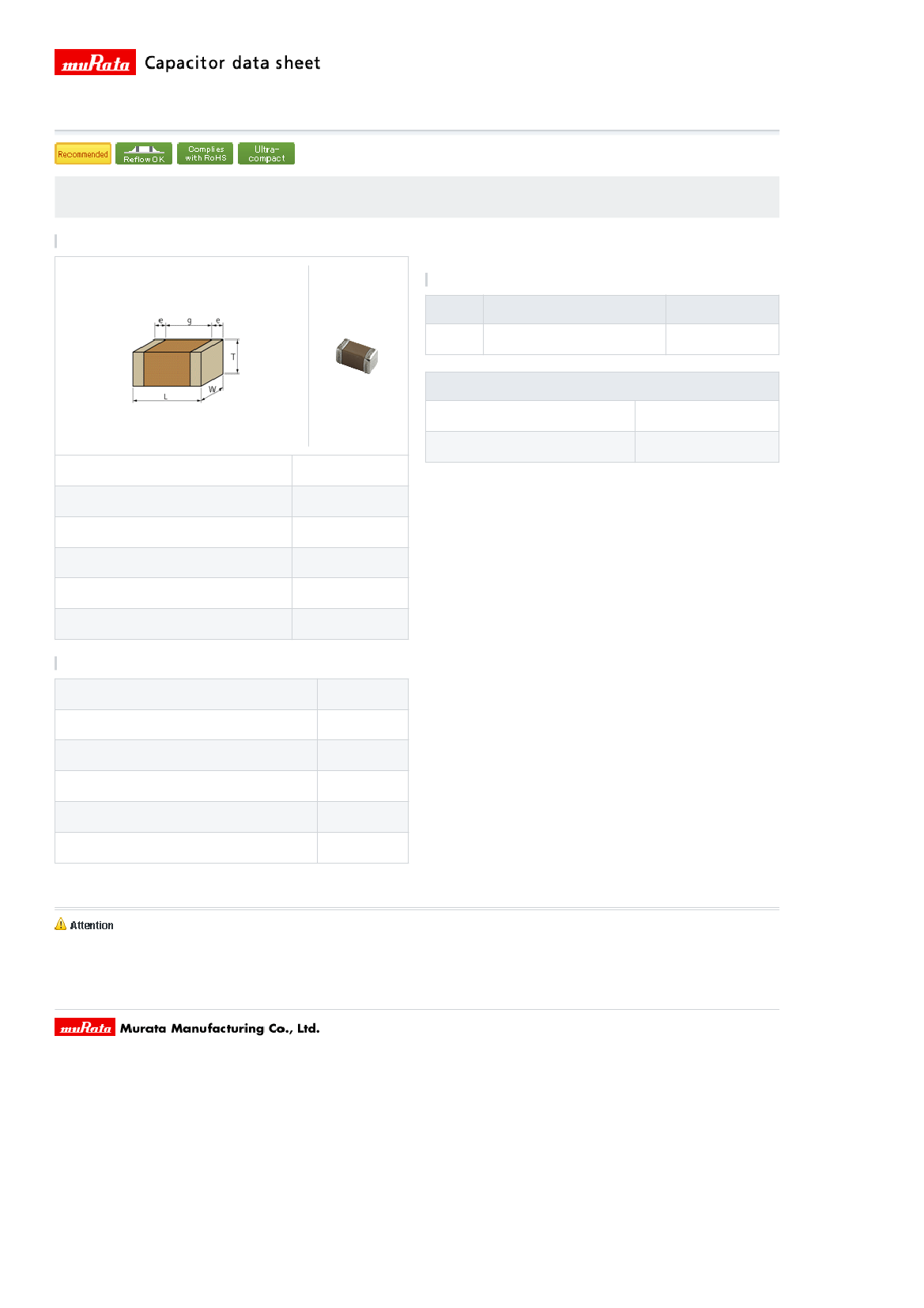

GRM022B30J682ME19#

# indicates a package specification code.

< List of part numbers with package codes >

GRM022B30J682ME19L

Shape

References

Packaging

Specifications

φ180mm Embossed taping

Minimum quantity

40000

Mass (typ.)

1 piece

φ180mm Reel

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

0.4 ±0.02mm

0.2 ±0.02mm

0.07 to 0.14mm

0.13mm min.

01005 (0402)

0.09mg

117g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

6800pF ±20%

6.3Vdc

B(JIS)

±10.0%

-25 to 85℃

1 of 2

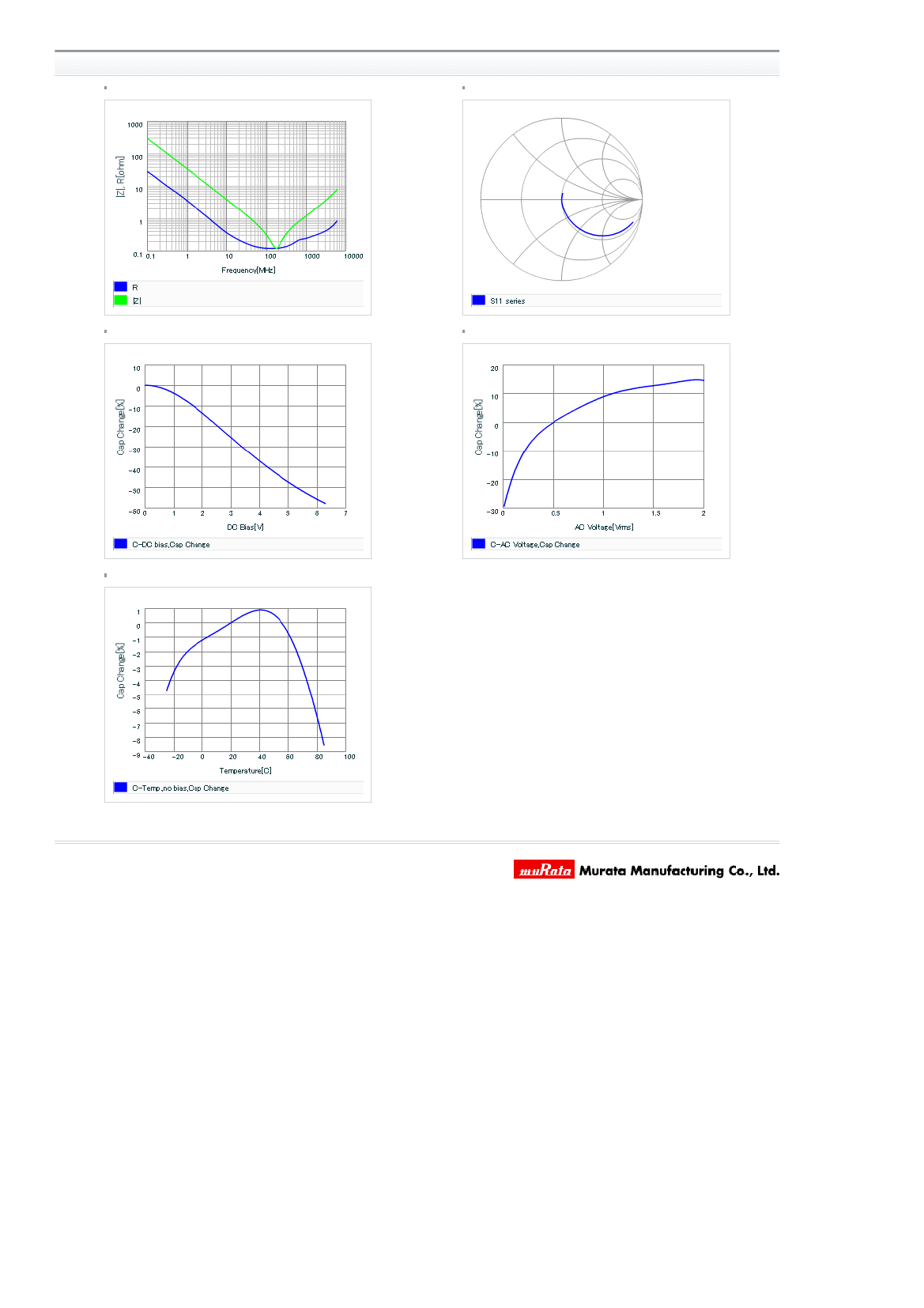

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
