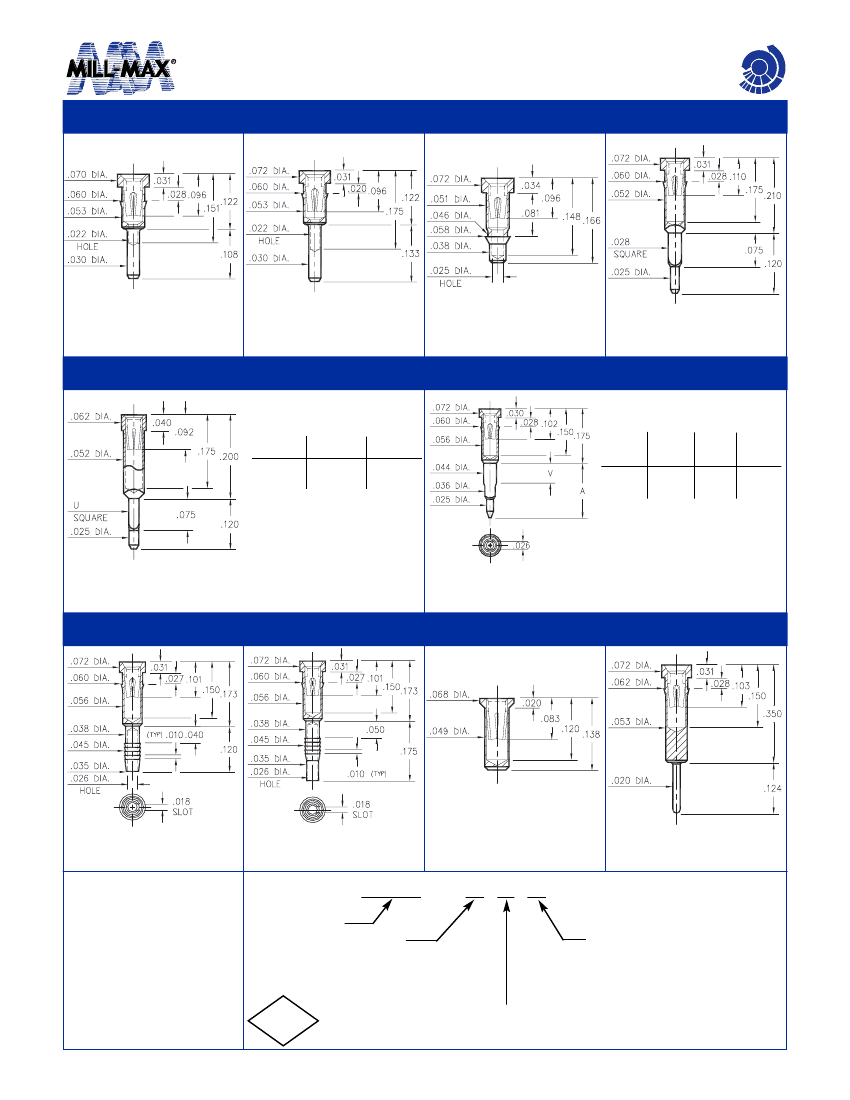

PIN RECEPTACLES
for .015” - .025” diameter pins
M
ON
S
I
CHI
A
PINS
NE
D
0501
8427
1434
9970
0501-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
8427-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
1434-0-15-XX-30-XX-10-0
Press-fit in .055 mounting hole
9970-0-15-XX-30-XX-04-0
Square press-fit for .032 ±.002
plated thru hole
5970
Basic Part
Number
U
Square
Mounting
Hole
0477/0478
Basic
Part
Number
Board
Thick-
ness
Length
V
Length
A
5970-1
5970-2
.028
.034
.032
.039
0477-0
0478-0
.062
.125
.075
.140
.175
.250
5970-X-15-XX-32-XX-04-0
Square press-fit for .032 or .039 ±.002
plated thru hole
047X-0-18-XX-30-XX-04-0
Solderless press-fit in .038 +.003 / -.002
plated thru hole (use 1.1mm drill prior to plating)
4612
4613
0680
0149
4612-0-31-XX-30-XX-04-0
Compliant press-fit in .040 ±.003 plated
hole. For .060
→
.100 thick board
4613-0-31-XX-30-XX-04-0
Compliant press-fit in .040 ±.003 plated
hole. For .090
→
.130 thick board
0680-0-15-XX-32-XX-10-0
Solder mount in .051 min.
mounting hole
0149-0-15-XX-30-XX-04-0
Press-fit in .059 mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - XX - XX - 3X - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
15
10μ” GOLD OVER NICKEL
RoHS
SPECIFY CONTACT FINISH:
02
100μ” TIN/LEAD OVER NICKEL
84
100μ” TIN OVER NICKEL
27
30μ” GOLD OVER NICKEL
2002/95/EC
SELECT CONTACT
#30 or #32
CONTACT (DATA ON PAGES 218 & 219)
w w w. m i l l - m a x . c o m
133
516-922-6000
