831-02522F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 831-02522F

831-02522F: DescriptionGeneral Purpose Inductor, 0.7uH, 20%, 2 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size102KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance; Related ProductsFound1parts with similar functions to 831-02522F

Download Datasheet Parametric View All

831-02522F Overview

General Purpose Inductor, 0.7uH, 20%, 2 Element, SMD, ROHS COMPLIANT

831-02522F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.00253 Ω
Nominal inductance(L)	0.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	831-02522
Number of functions	2
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	J BEND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

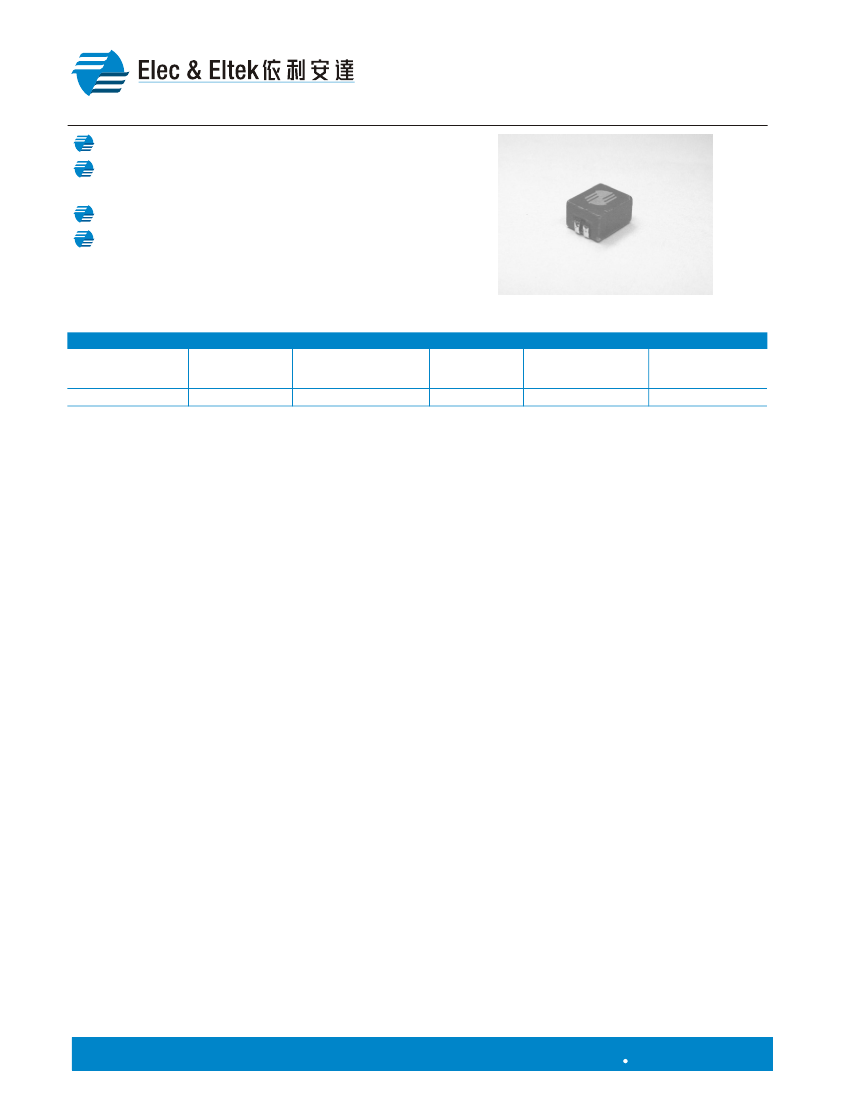

E & E Magnetic Products Limited

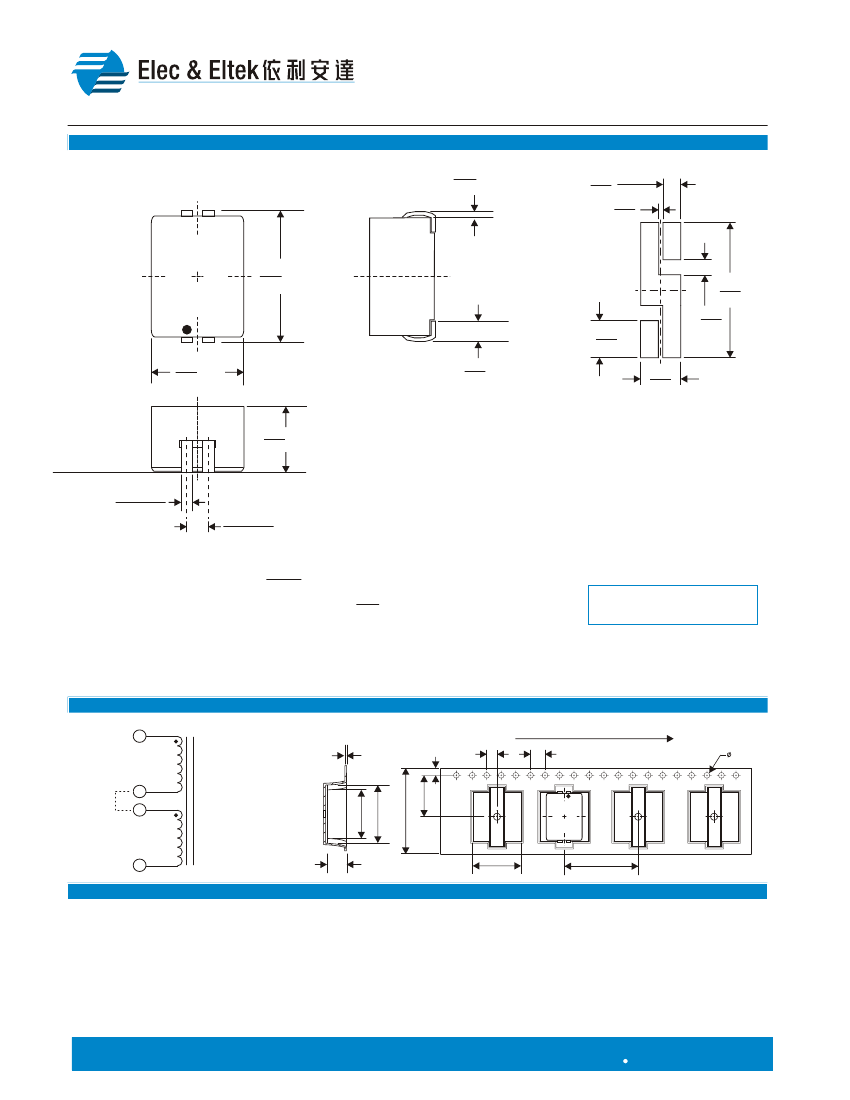

SHIELDED SURFACE MOUNT

POWER INDUCTOR

Power Beads Type

CHEMATICS

Miniature in size and exceptionally low DC resistance

Ideal for high current requirements of notebook,

mobile phones, and other handheld products

Custom inductance value or tolerance is available

RoHS compliant

LECTRICAL

PECIFICATION

@ 25

Part

Number

831-02522F

Inductance

(nH±

20%

)

700

Inductance@Irated

(nH±

20%

)

600

DCR

Max)

2.53

Saturation Current

(Adc)

12.6

Heating Current

(A)

10.7

Notes:

1. Inductance is tested at 0.1Vrms, 100kHz.

2. The rated current is either 85% of the saturation current or the heating current depending on which value is

lower. In this case, the rated current is 10.7A.

3. Saturation current, Isat, indicates the value of DC current when the inductance is 30% typical lower than its

initial value.

4. Heating current, Irms, is the value of current when the temperature rising

DT=40

C typical.

5. Operating temperature range: -40°C to +125°C.

6. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the

operating temperature under worst case operating conditions. Circuit design, component placement, PWB

trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application.

1/F., Harbour View 1, No.12 Science Park East Avenue, Phase II, Hong Kong Science Park, Shatin, N.T. Hong Kong

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PI131(0２)

Revised in 0９/１２
