8980K14 datasheet, PDF - EEWORLD Datasheet

8980K14: DescriptionToggle Switch, DPST, Latched, 30A, 250VDC, Screw Terminal, Square Lever Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size674KB，1 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

8980K14 Overview

Toggle Switch, DPST, Latched, 30A, 250VDC, Screw Terminal, Square Lever Actuator, Panel Mount, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	SQUARE LEVER
Contact (AC) maximum rated R load	30A@250VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@250VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Installation features	PANEL MOUNT
Maximum operating temperature	66 °C
Minimum operating temperature	-16 °C
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

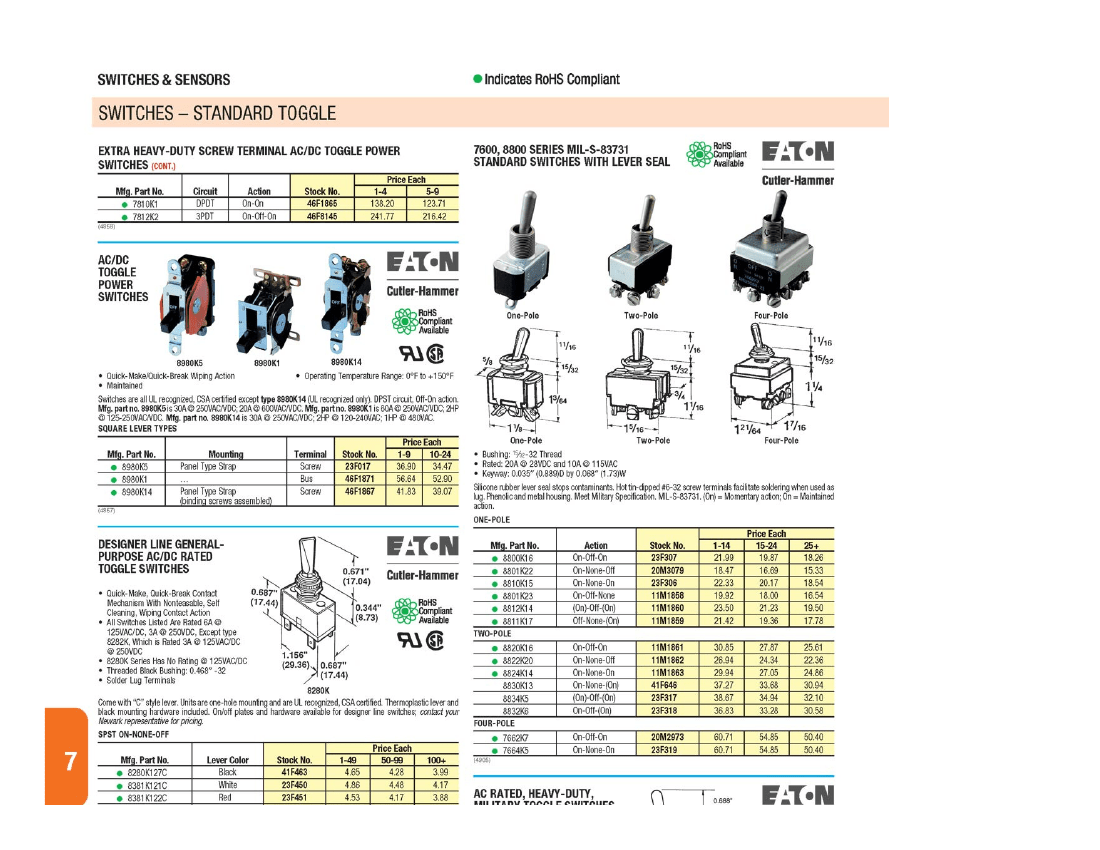

Page 1 of 1

http://au.newark.com/ext/printCatalog/cat125/1350w/1686.jpg

9/26/2008
