2SJ198 datasheet, PDF - EEWORLD Datasheet

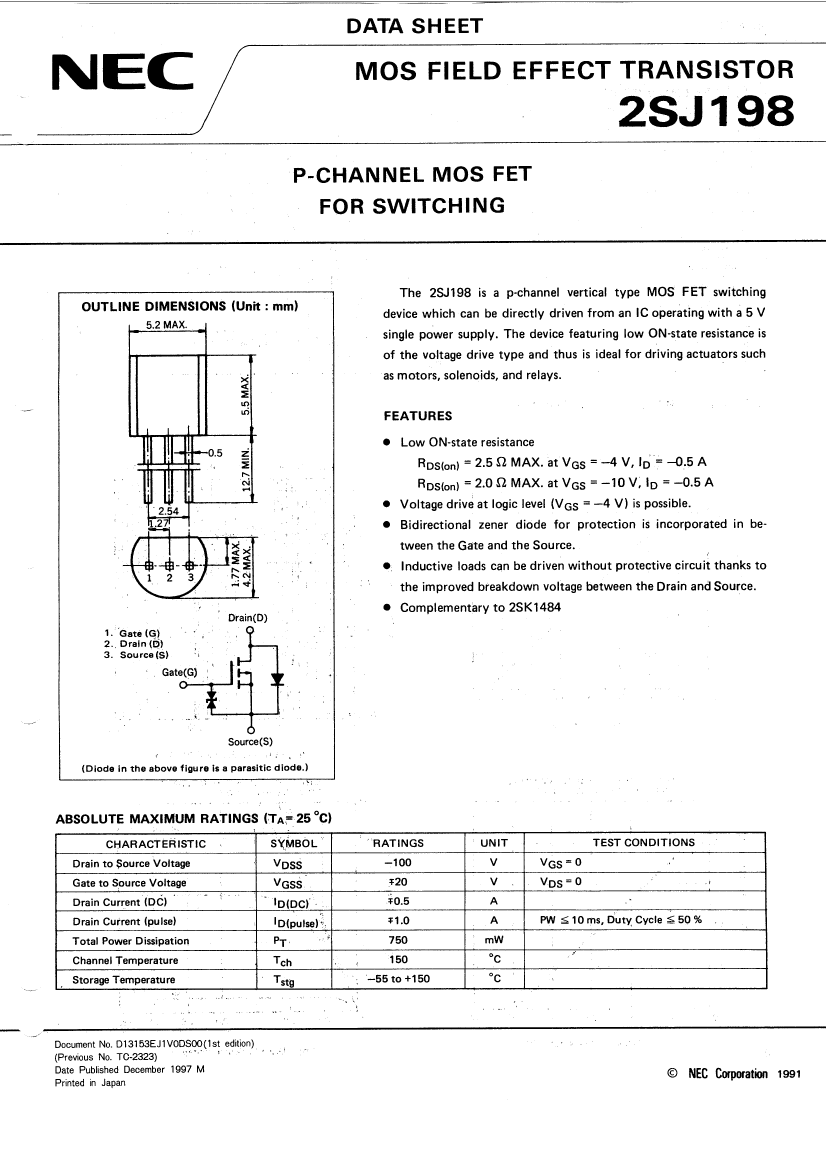

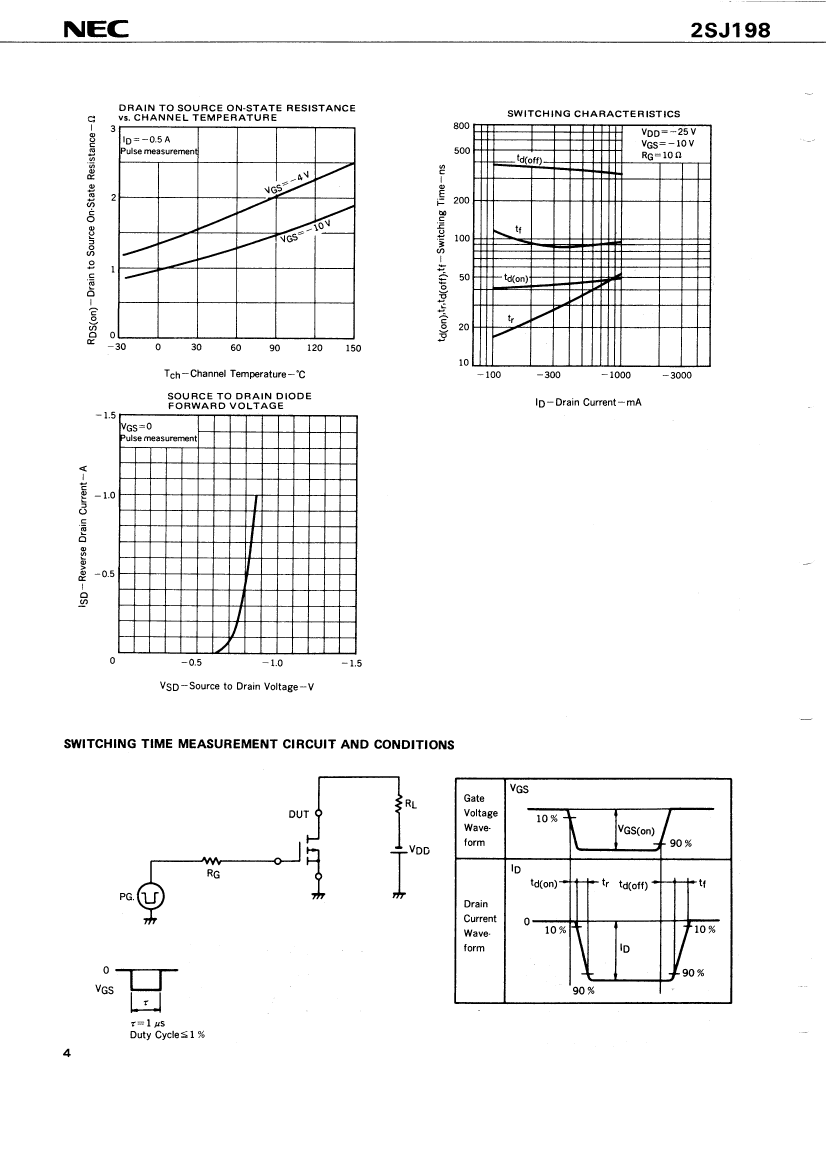

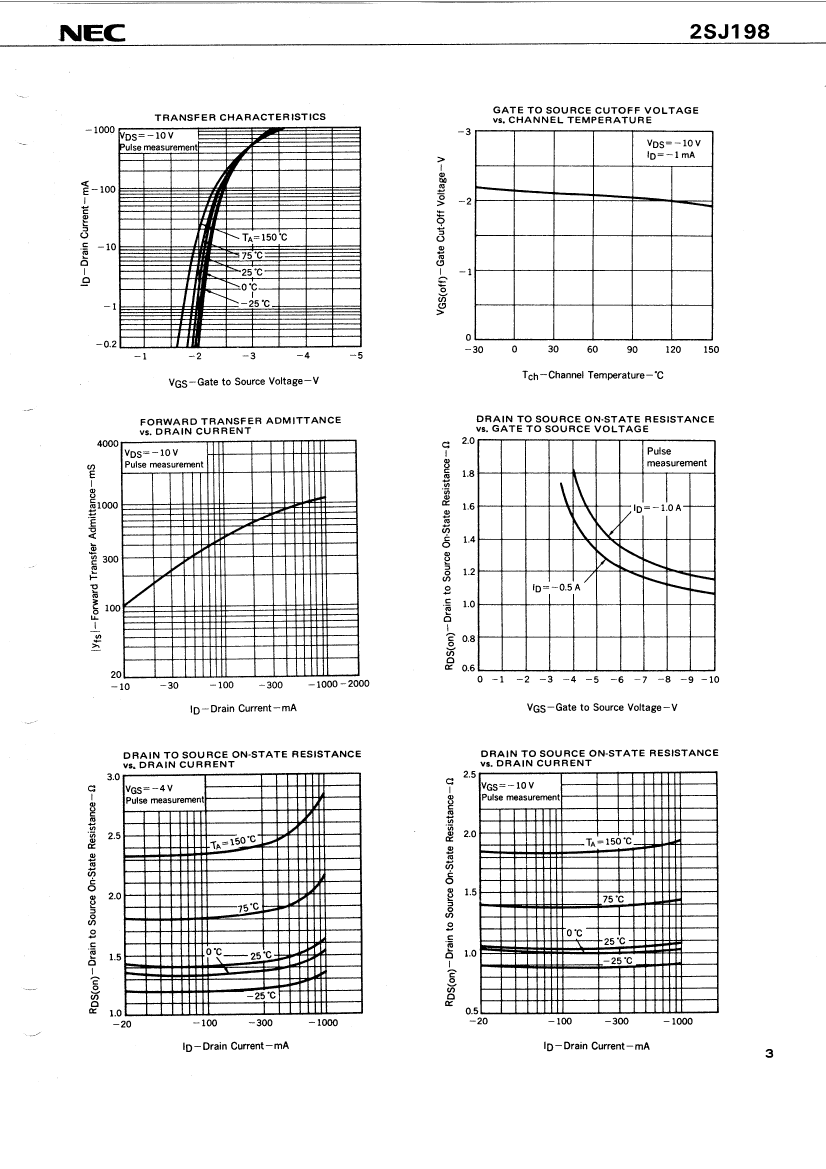

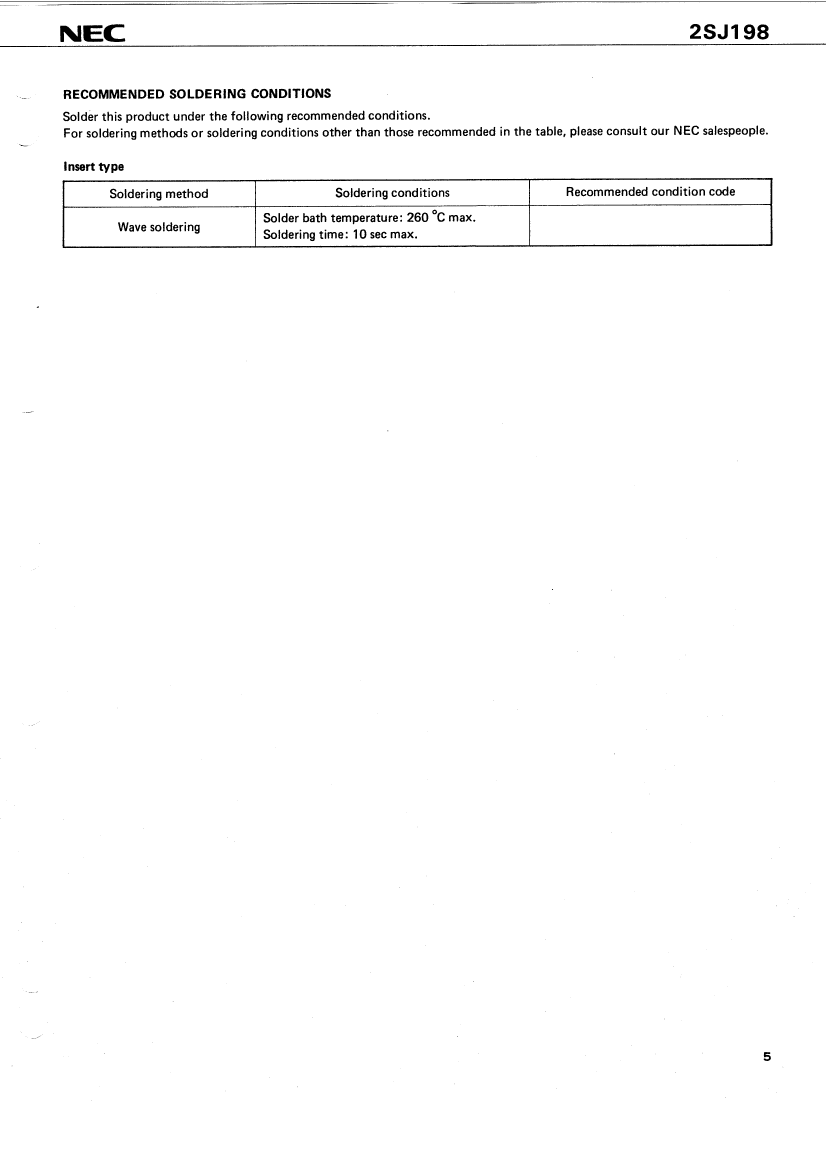

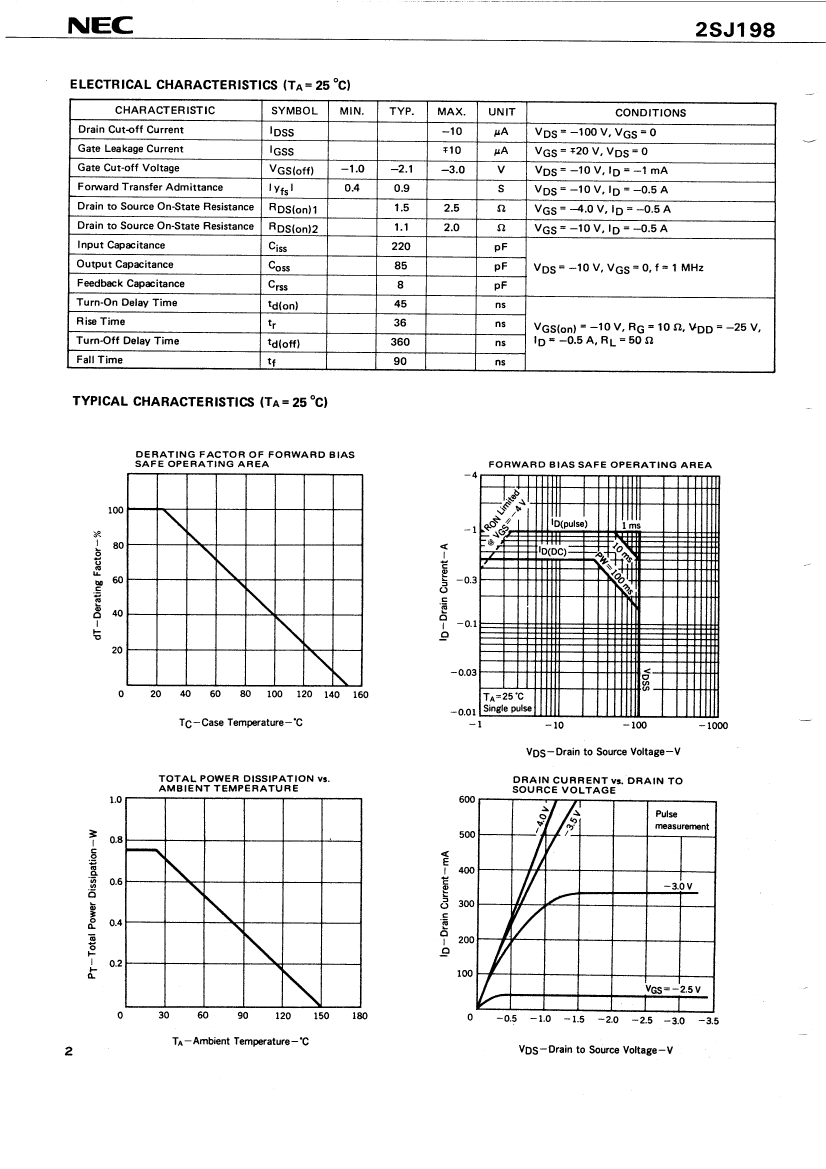

2SJ198: DescriptionSmall Signal Field-Effect Transistor, 0.5A I(D), 100V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET; CategoryDiscrete semiconductor The transistor; File Size341KB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric View All

2SJ198 Overview

Small Signal Field-Effect Transistor, 0.5A I(D), 100V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	GATE PROTECTED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	0.5 A
Maximum drain-source on-resistance	2.5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
