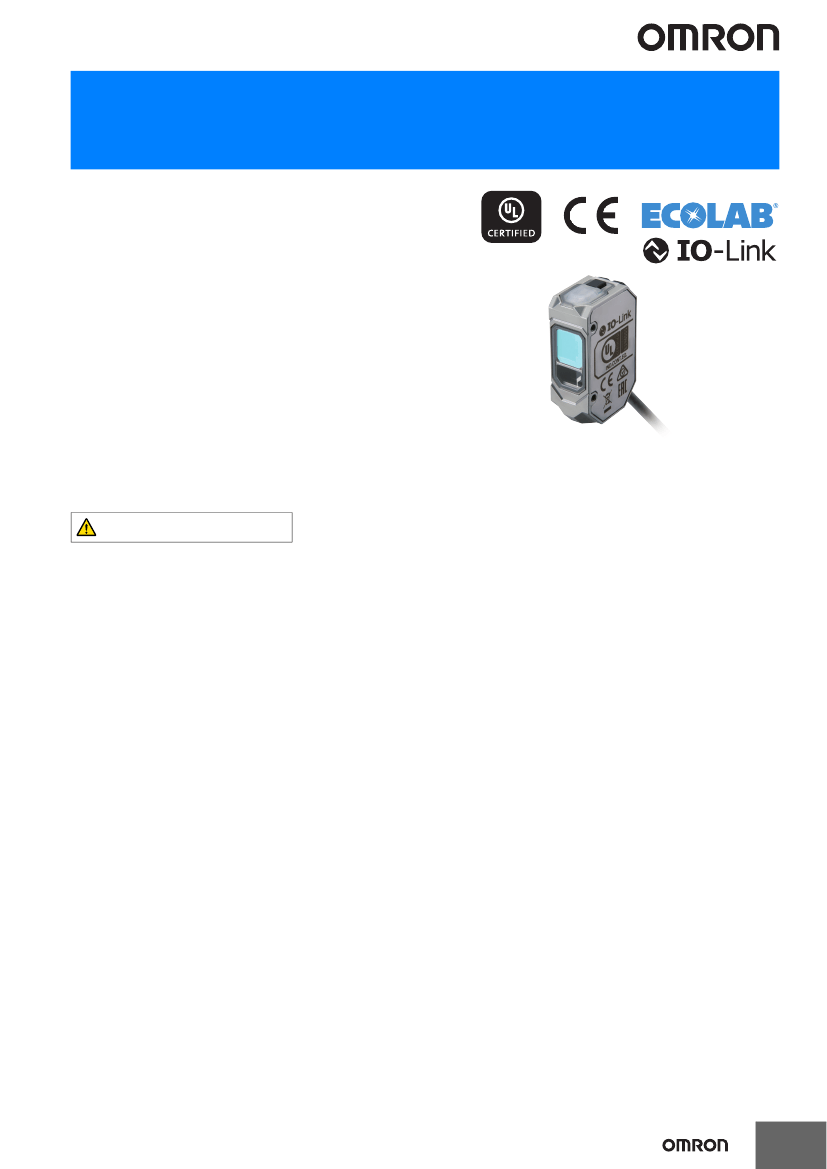

Distance-settable Photoelectric Sensors
E3AS-HL Series
CMOS Photoelectric
Sensor for precise part detection
E3AS-HL Series
• CMOS photoelectric sensor for advanced part detection
capabilities
• Spot beam and line beam options for small part or uneven
surfaces
• 500mm and 150mm sensing options fit for most sensing
applications
• Antifouling coating prevents contamination
on the sensing surface
• Ecolab certified in addition to IP67/69K/67G protection
• All models with IO-Link connectivity allowing users to
collect and use measurement values
(NPN type excluded)
For the most recent information on models that have been
certified for safety standards, refer to your Omron website.
Refer to
Safety Precautions
on page 13.
1
E3AS-HL Series
Ordering Information
E3AS-HL models
Line beam type
Connection method
Sensing distance
(white paper)
Model
Output
IO-Link baud rate
500 mm
[Refer to
Dimensions
on page 15]
Red light
NPN output
---
E3AS-HL500LMN 2M
E3AS-HL500LMN M3
E3AS-HL500LMN-M1TJ 0.3M
PNP output
COM3 (230.4 kbps)
3
E3AS-HL500LMT 2M
E3AS-HL500LMT M3
E3AS-HL500LMT-M1TJ 0.3M
E3AS-HL150LMT 2M
E3AS-HL150LMT M3
E3AS-HL150LMT-M1TJ 0.3M
Pre-wired (2 m)
1
M8 Connector
M12 Pre-wired Smartclick
Connector (0.3m)
2
Pre-wired (2 m)
1
M8 Connector
M12 Pre-wired Smartclick
Connector (0.3m)
2
35 mm
35 mm
150 mm
E3AS-HL150LMN 2M
E3AS-HL150LMN M3
E3AS-HL150LMN-M1TJ 0.3M
Spot type
Connection method
Sensing distance
(white paper)
Model
Output
IO-Link baud rate
500 mm
NPN output
---
E3AS-HL500MN 2M
E3AS-HL500MN M3
E3AS-HL500MN-M1TJ 0.3M
E3AS-HL150MN 2M
E3AS-HL150MN M3
E3AS-HL150MN-M1TJ 0.3M
PNP output
COM3 (230.4 kbps)
3
E3AS-HL500MT 2M
E3AS-HL500MT M3
E3AS-HL500MT-M1TJ 0.3M
E3AS-HL150MT 2M
E3AS-HL150MT M3
E3AS-HL150MT-M1TJ 0.3M
Pre-wired (2 m)
1
M8 Connector
M12 Pre-wired Smartclick
Connector (0.3m)
2
Pre-wired (2 m)
1
M8 Connector
M12 Pre-wired Smartclick
Connector (0.3m)
2
35 mm
35 mm
150 mm
Note: 1.
Models with 5-m cable length are also available with “5M” suffix. (Example: E3AS-HL500MN 5M/E3AS-HL500LMN 5M)
2.
M8 Pre-wired Connector Models are also availavble. When ordering, add "-M3J 0.3M" to the end of the model number
(e.g., E3AS-HL500MN-M3J 0.3M/E3AS-HL500LMN-M3J 0.3M).
3.
COM2 (38.4kbps) Models are also available.
2
E3AS-HL Series
Accessories (Sold Separately)
Sensor I/O Connectors (Sockets on One Cable End)
(Models for Connectors / Pre-wired Connectors)
A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
Round Water-resistant Connectors XS3F-M8 series
Appearance
M8 Connector
Straight type
Straight
5
PVC cable
Right-angle type
Right-angle
5
XS3F-M8PVC4A5M
5 dia.
2
XS3F-M8PVC4A2M
XS3F-M8PVC4S5M
Cable specification
Cable diameter
(mm)
Cable connection
direction
Cable length (m)
2
Sensor I/O Connector
model number
XS3F-M8PVC4S2M
Note: 1.
The XS3W (Socket and Plug on Cable Ends) is also available. Refer to
XS3 Series Datasheet
(Cat. No. G147).
2.
The connectors will not rotate after they are connected.
3.
The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.
Round Water-resistant Connectors XS2 series
Appearance
M12 Connector
Straight type
Straight
5
PVC robot cable
Right-angle type
Right-angle
5
XS2F-M12PVC4A5M
6 dia.
2
XS2F-M12PVC4A2M
XS2F-M12PVC4S5M
Cable specification
Cable diameter
(mm)
Cable connection
direction
Cable length (m)
2
Sensor I/O Connector
model number
XS2F-M12PVC4S2M
Note: 1.
The XS2W (Socket and Plug on Cable Ends) is also available. Refer to
XS2
on your OMRON website for details.
2.
The connectors will not rotate after they are connected.
3.
The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.
3
E3AS-HL Series

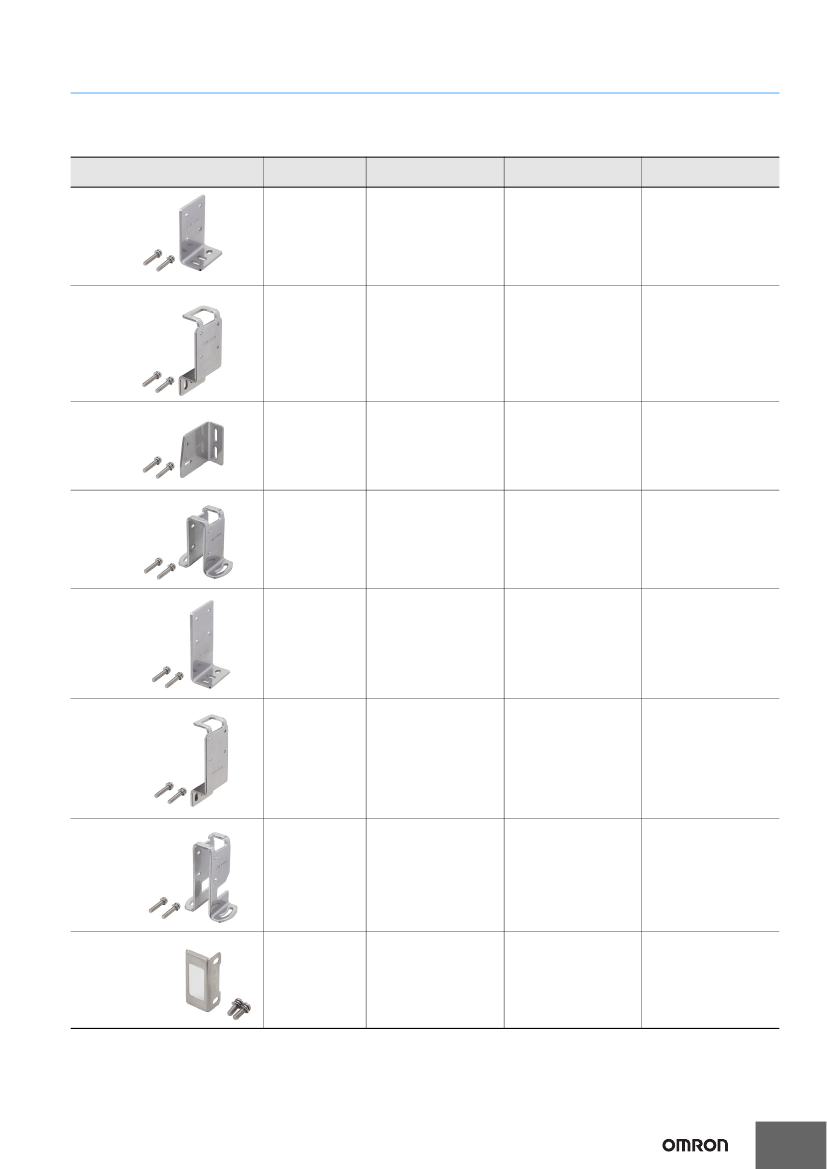

Mounting Brackets
A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.
For E3AS-HL series
[Refer to
Dimensions
on page 16]
Appearance
L-shaped
Mounting Bracket
E39-L221
(SUS304)
Yes
Yes
---
Model
(material)
Pre-wired
M12 Pre-wired
Smartclick Connector
M8 Connector
Horizontal Protective
Cover Bracket
E39-L222
(SUS304)
Yes
Yes
---
Rear
Mounting Bracket
E39-L223
(SUS304)
Yes
Yes
Yes
2
Robust
Mounting Bracket
E39-L224
(SUS304)
Yes
Yes
---
L-shaped
Mounting Bracket
E39-L231
(SUS304)
---
1
---
1
Yes
3
Horizontal Protective
Cover Bracket
E39-L232
(SUS304)
---
1
---
1
Yes
3
Robust
Mounting Bracket
E39-L234
(SUS304)
---
1
---
1
Yes
3
Front Protection
Cover
E39-E19
4
Yes
Yes
Yes
Note: 1.
2.
3.
4.
Can be used for Pre-wired models and M12 Pre-wired Smartclick Connector models. However, confirm the bracket shape in advance.
Confirm the installation environment and bracket shape of the Sensor I/O Connector to be connected.
Use an L-shaped Sensor I/O Connector. Straight types cannot be installed.
Front Protection Cover is Accessory for E3AS-HL. E3AS-F model and E3AS-L model cannot be installed.
4
E3AS-HL Series
E3AS-HL series
[Refer to
Dimensions
on page 19]
A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.
Appearance
Flexible
Mounting Bracket
E39-L261
(SUS304)
1
Model
(material)
Pre-wired
M12 Pre-wired
Smartclick Connector
M8 Connector
Yes
Yes
Yes
Post 50 mm
E39-L262
Yes
Yes
Yes
Post 100 mm
E39-L263
Yes
Yes
Yes

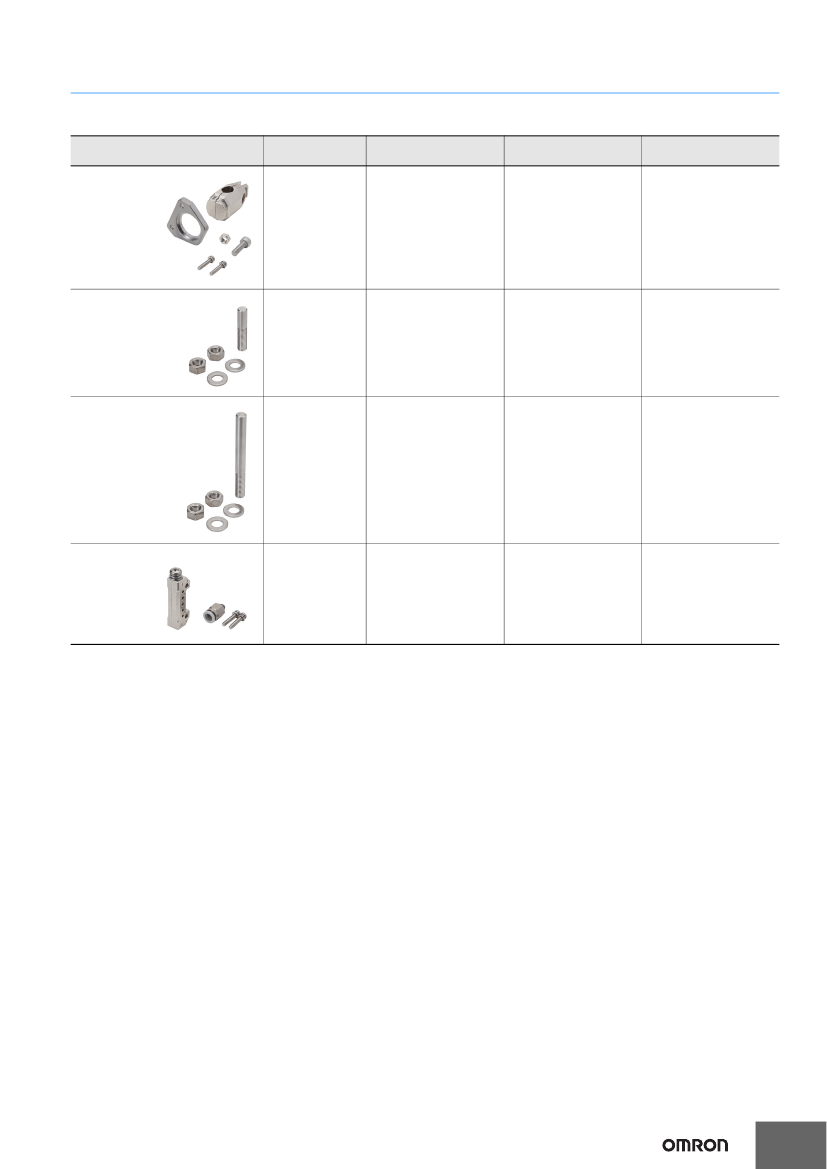

Air Blow Unit
E39-E16
2
Yes
Yes
Yes
Note: 1.
The Flexible Mounting Bracket is not provided with a Post (E39-L262/E39-L263). It must be ordered separately.
2.
The tube for air is not included.
5
