KBP2005G - KBP210G
2.0A GLASS PASSIVATED BRIDGE RECTIFIER
SPICE MODELS: KBP005G KBP01G KBP02G KBP04G KBP06G KBP08G KBP10G
Features
·
·
·
·
·
·
·
Glass Passivated Die Construction
High Case Dielectric Strength of 1500V
RMS
Low Reverse Leakage Current
Surge Overload Rating to 65A Peak
Ideal for Printed Circuit Board Applications
Plastic Material - UL Flammability
Classification 94V-0
UL Listed Under Recognized Component
Index, File Number E94661
KBP
Dim
A
Min
14.25
10.20
14.25
3.56
0.76
1.17
Max
14.75
10.60
14.73
4.06
0.86
1.42
L
J
A
K
M
B
C
D
E
2.29 Typical
+
_
B
N
G
H
Mechanical Data
·
·
·
·
·
·
·
Case: Molded Plastic
Terminals: Plated Leads, Solderable per
MIL-STD-202, Method 208
Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 4, on Page 3
Polarity: Marked on Body
Approx. Weight: 1.52 grams
Mounting Position: Any
Marking: Type Number
H
G
C
D
P
J
K
L
M
N
P
2.8 X 45°
Chamfer
0.80
3.35
1.10
3.65
E
3° Nominal
2° Nominal
0.30
0.64
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
C
= 105°C
Non-Repetitive Peak Forward Surge Current, 8.3 ms single
half-sine-wave superimposed on rated load
(JEDEC method)
Forward Voltage per element
Peak Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance (Note 1)
Operating and Storage Temperature Range
Notes:
@ I
F
= 2.0A
@ T
C
= 25°C
@ T
C
= 125°C
@ T
A
= 25°C unless otherwise specified
KBP
Symbol 2005G
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
C
T
R
qJC
T
j
, T
STG
50
35
KBP
201G
100
70
KBP
202G
200
140
KBP
204G
400
280
2.0
65
1.1
5.0
500
25
14
-65 to +150
KBP
206G
600
420
KBP
208G
800
560
KBP
210G
1000
700
Unit
V
V
A
A
V
µA
pF
°C/W
°C
Typical Total Capacitance per Element (Note 2)
1. Thermal resistance from junction to case per element. Unit mounted on 75 x 75 x 1.6mm aluminum plate heat sink.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
DS21205 Rev. 8 - 2
1 of 3
www.diodes.com
KBP2005G-KBP210G
ã
Diodes Incorporated
2.0
I
O
, AVERAGE RECTIFIED CURRENT (A)
I
F
, INSTANTANEOUS FWD CURRENT (A)
10
1.5
Lead
T
J
= 150°C
T
J
= 25°C
Case
1.0
1.0
Ambient
0.1
0.5
0
0
50
100
150
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
T, TEMPERATURE (°C)

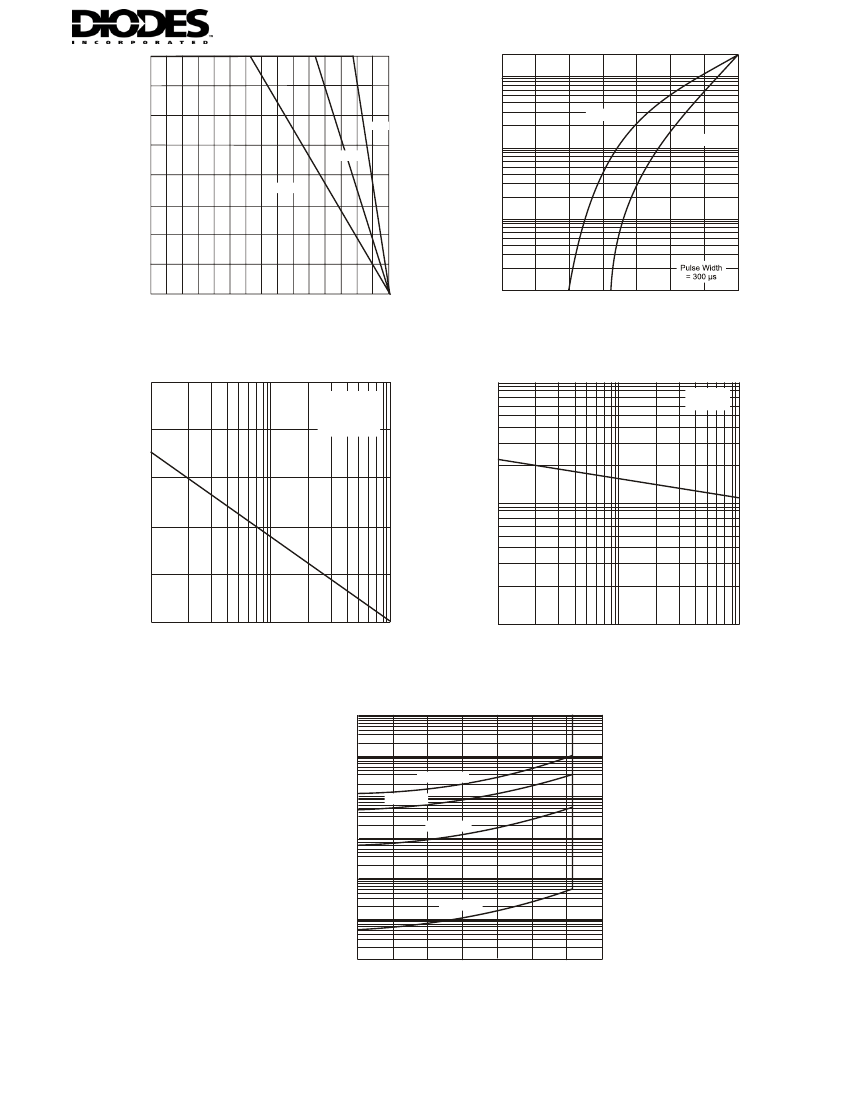

Fig. 1 Forward Current Derating Curve
V
F
, INSTANTANEOUS FWD VOLTAGE (V)
Fig. 2 Typical Fwd Characteristics
100
I
FSM
, PEAK FWD SURGE CURRENT (A)
T
j
= 150°C
Single Half
Sine Wave
(JEDEC Method)
100
T
j
= 25°C
f = 1MHz
80
60
C
T
, TOTAL CAPACITANCE (pF)
100
10
40
20
0
1
10
1
1
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Fwd Surge Current
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
10,000
1000
T
j
= 150°C
100
T
j
= 125°C
T
j
= 100°C
10
1.0
T
j
= 25°C
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics
DS21205 Rev. 8 - 2
2 of 3
www.diodes.com
KBP2005G-KBP210G
