www.lemo.com
FGG.2K.303.YLAC55Z
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
3
0
0
0
0
0
0
2K
Male solder
68
5.10 - 5.50 mm
EGG.2K.303.YLL
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
FG*: Straight plug, cable collet and nut for fitting a bend relief
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Special housing (see notes for details)
C55: 5.1 - 5.5 mm
Z : Nut for fitting a bend relief
40.57 g
Performance
Configuration
Insulator
Rated Current
2K.303 : 3 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
17 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact Dia.: 1.6 mm (0.063in)
Bucket Dia.: 1.4 mm (0.055in)
Max. Solid Conductor: 1 mm^2 (AWG 16)
Max. Stranded Conductor: 1 mm^2 (AWG 18)
R (max): 3.5 mOhm
Vtest (contact-shell): 1850 V (AC), 2600 V (DC)
Vtest (contact-contact): 2400 V (AC), 3390 V (DC)
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +200°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz)
IP Rating: 68

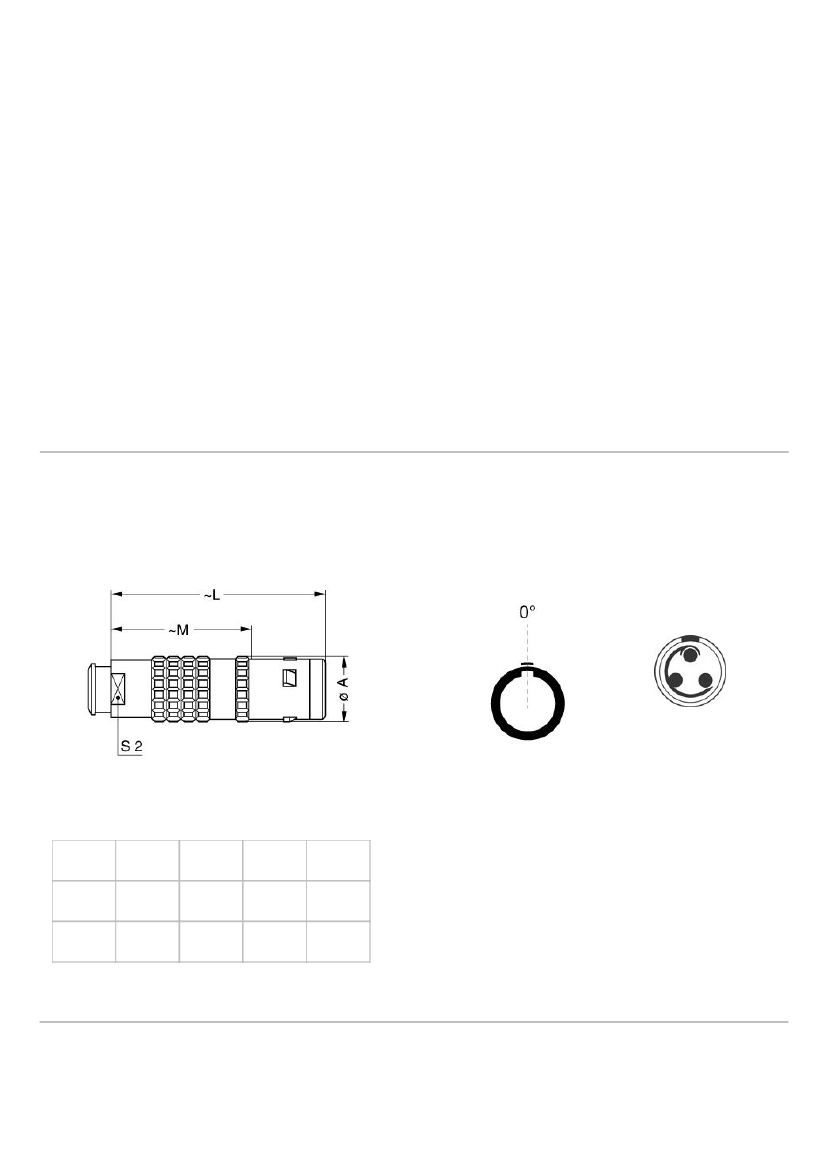

DRAWINGS
Draws
Dimensions
A
mm.
in.
16
0,63
L
52
2,05
M
36
1,42
S2
12
0,47
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Spanner wrench: DCD.2E.020.PA120
Caps: BFG.2K.100.NAS
Cables
CMN.03.T18.055PGCE
CMN.03.T18.055PGZE
CMN.03.T18.055PNCE
CMN.03.T18.055PNZE
CMN.03.T18.055QGZE
030 200
TPR (medical)
PVC
Grey
Black
PVC
PVC
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
