M80-4C1060500-06-325-02-305 datasheet, PDF

M80-4C1060500-06-325-02-305: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

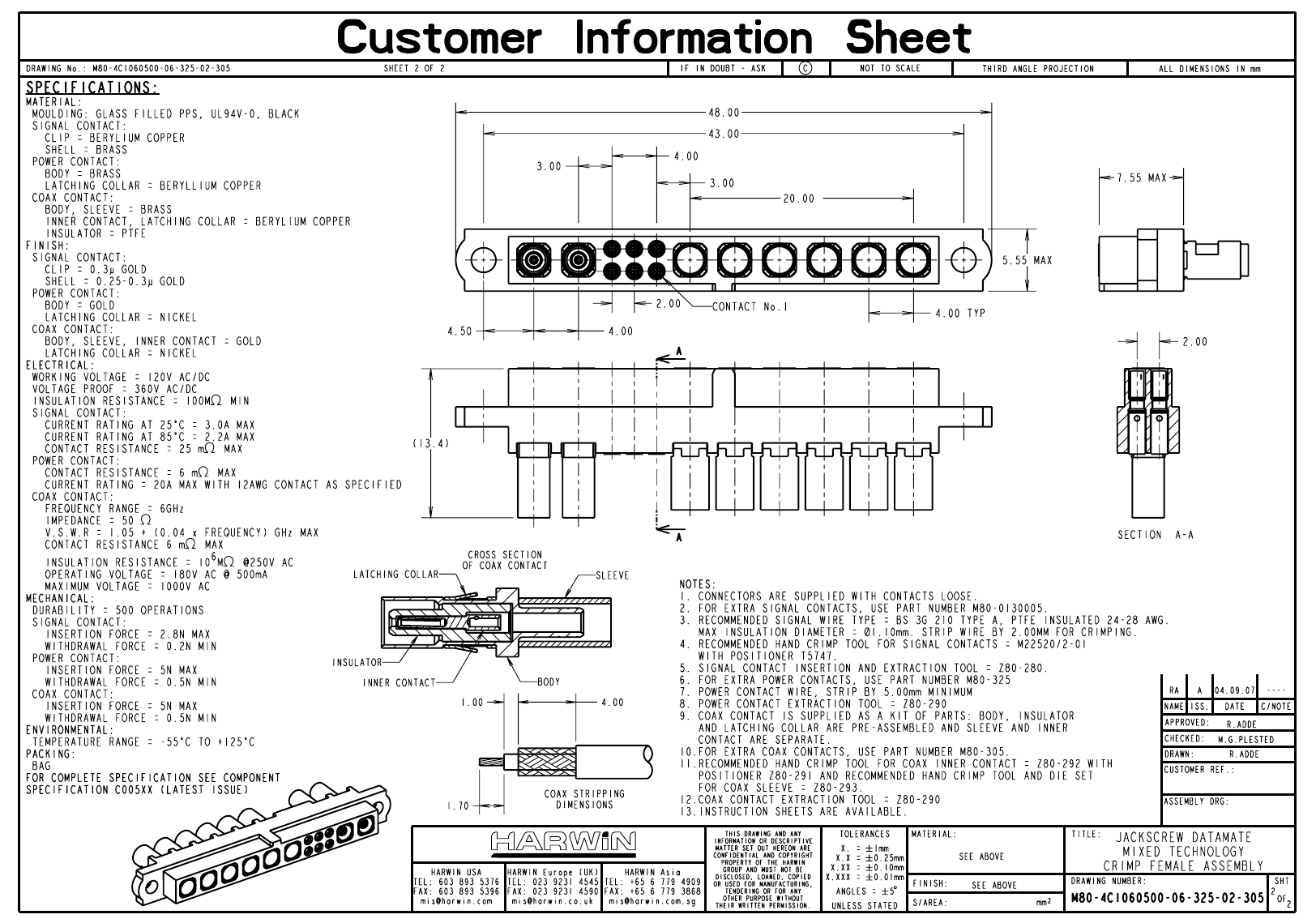

M80-4C1060500-06-325-02-305 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	6 SIGNAL, 6 POWER, 2 COAXIAL
body width	0.219 inch
subject depth	0.297 inch
body length	1.89 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	25 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1
