HCTS27DMSH datasheet, PDF - EEWORLD Datasheet

HCTS27DMSH: DescriptionNOR Gate, HCT Series, 3-Func, 3-Input, CMOS, CDIP14; Categorylogic logic; File Size209KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

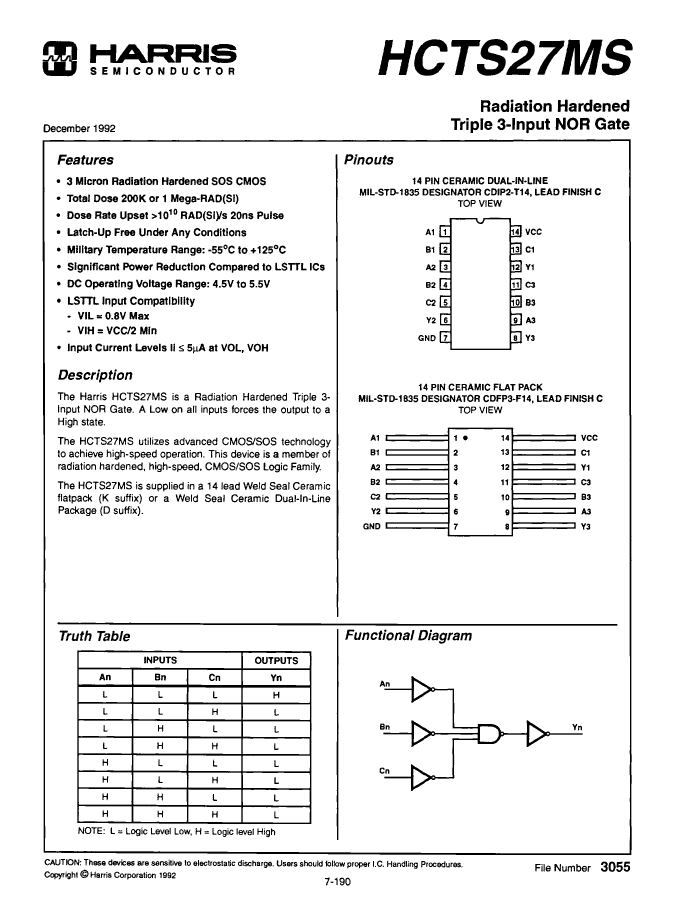

HCTS27DMSH Overview

NOR Gate, HCT Series, 3-Func, 3-Input, CMOS, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HCT
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.004 A
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

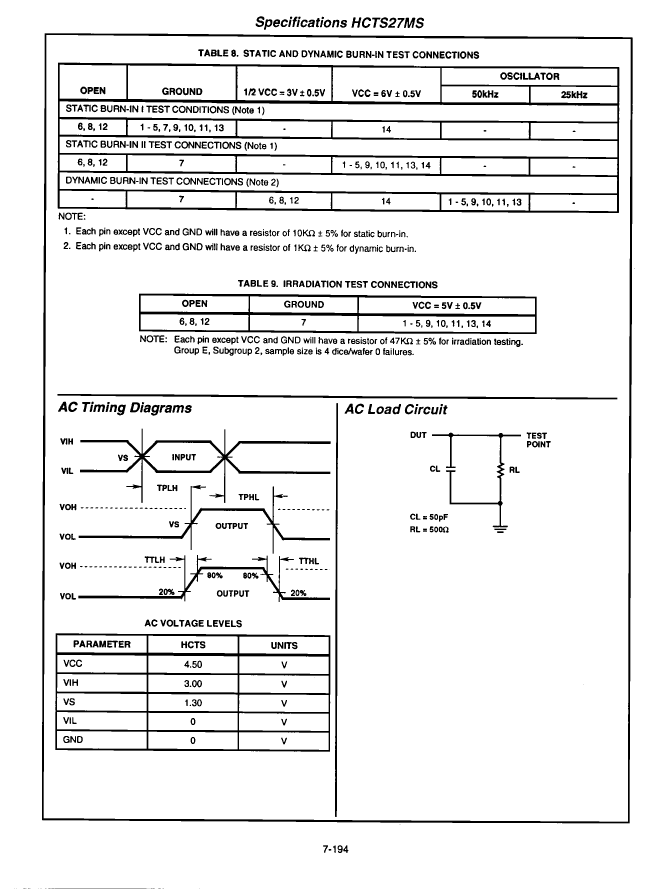

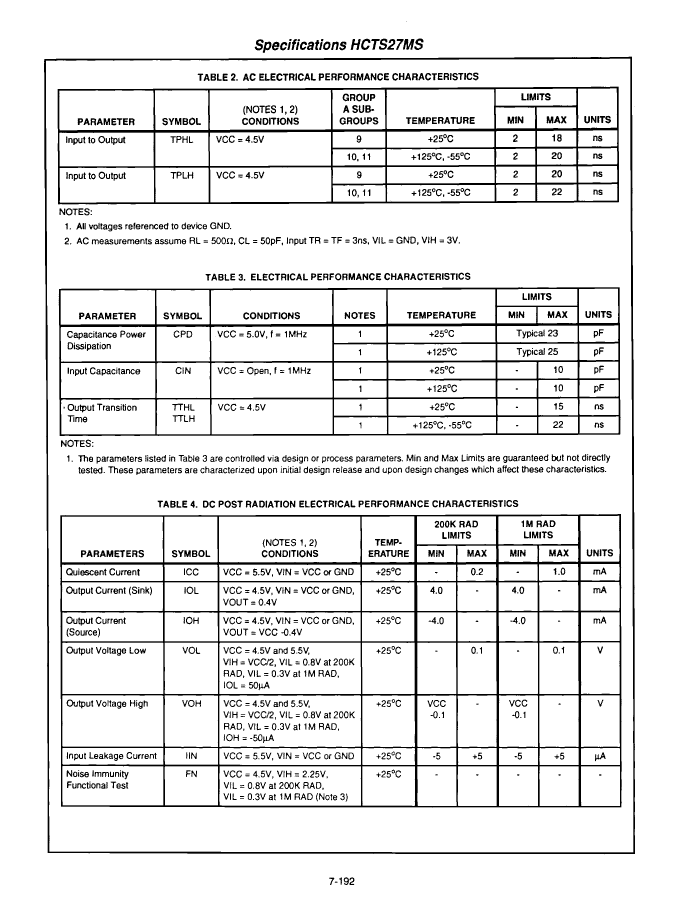

Prop。Delay @ Nom-Sup	26 ns
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S

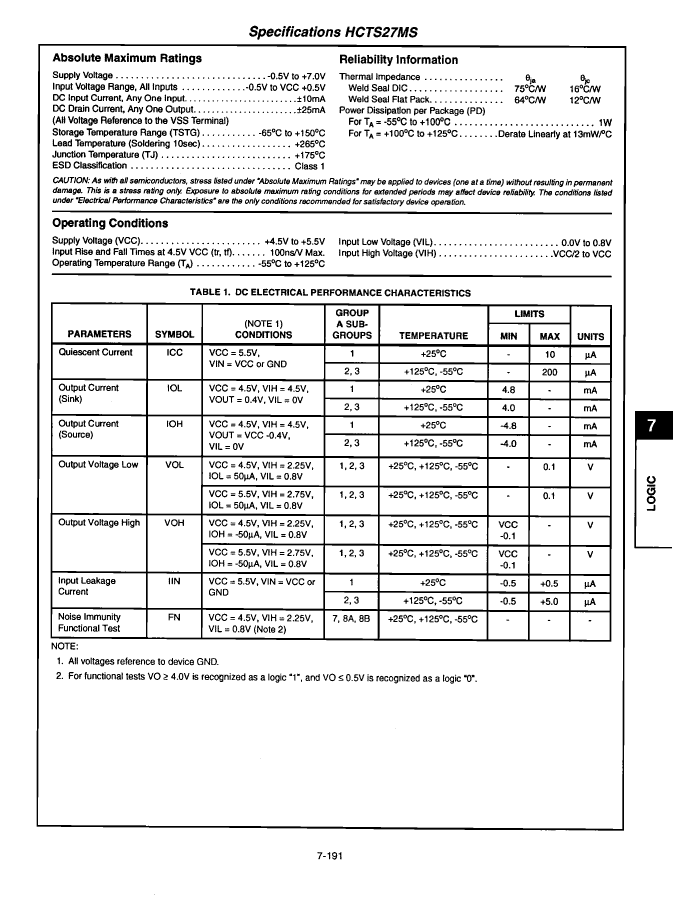

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

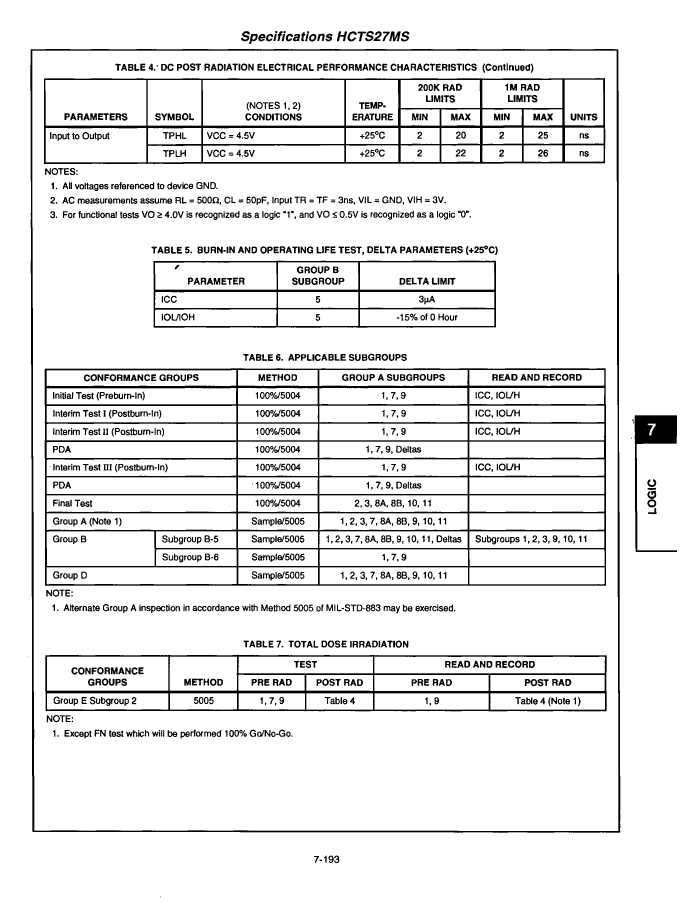

total dose	1M Rad(Si) V
Base Number Matches	1

	HCTS27DMSH	HCTS27KMSH
Description	NOR Gate, HCT Series, 3-Func, 3-Input, CMOS, CDIP14	NOR Gate, HCT Series, 3-Func, 3-Input, CMOS, CDFP14
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	DIP, DIP14,.3	DFP, FL14,.3
Reach Compliance Code	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HCT	HCT
JESD-30 code	R-CDIP-T14	R-CDFP-F14
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NOR GATE	NOR GATE
MaximumI(ol)	0.004 A	0.004 A
Number of functions	3	3
Number of entries	3	3
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	26 ns	26 ns
propagation delay (tpd)	25 ns	25 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Filter level	38535V;38534K;883S	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	1M Rad(Si) V	1M Rad(Si) V
Base Number Matches	1	1
