803-83-043-10-001101: DescriptionBoard Connector, 86 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html; Environmental Compliance

Download Datasheet Parametric View All

803-83-043-10-001101 Overview

Board Connector, 86 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

803-83-043-10-001101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PRECI-DIP
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	86
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PRECI-DIP SA -

Page 1 of 1

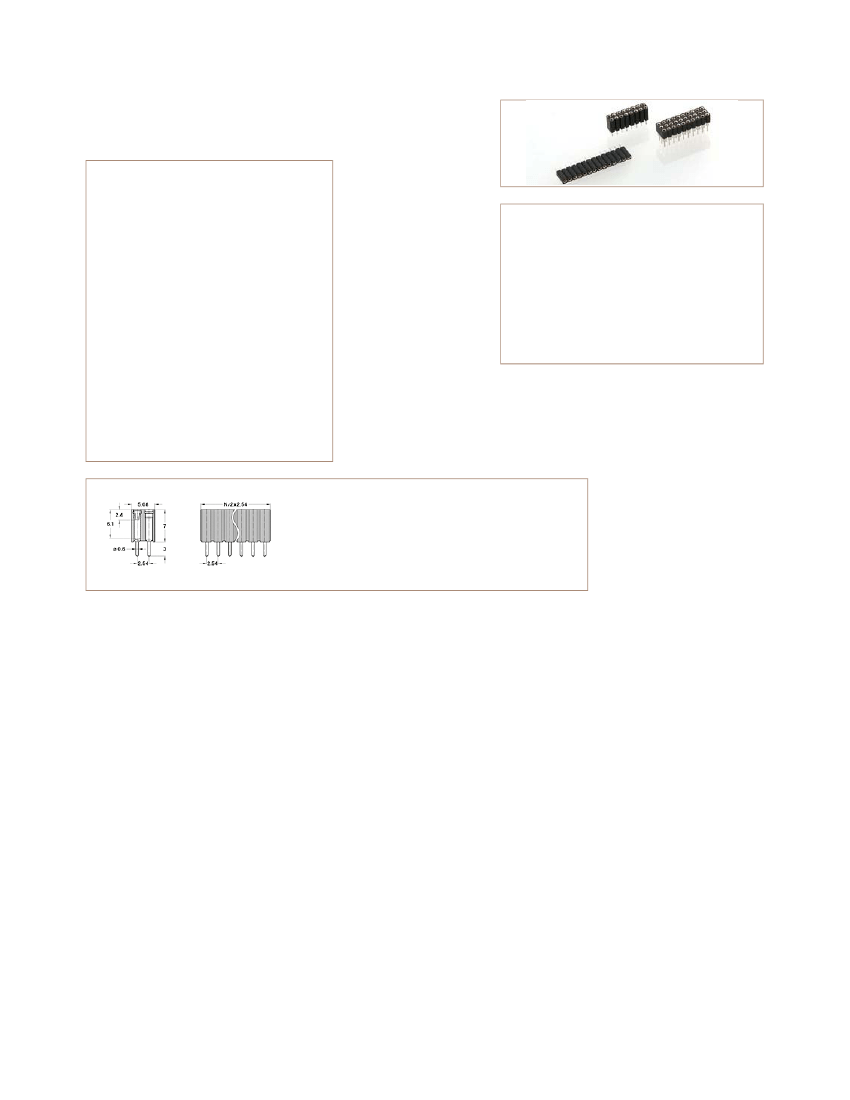

PCB CONNECTORS - STRAIGHT SOLDER TAIL

Series

803

PCB Connectors - Straight solder tail

Double row

2.54 mm, Straight solder tail, Mating pin Ø 0.76 mm

Socket connectors, solder tail

Ordering information RoHS-compliant parts

Technical specs.:

Insulator:

Flammability:

Sleeve:

Contact:

Mating pin Ø:

Insertion force:

Withdrawal force:

Mechanical life:

Rated current:

Contact resistance:

Dielectric strength:

Black glass filled polyester

PCT-GF30-FR

UL 94V-O

Brass CuZn36Pb3 (C36000)

Clip (6 finger): Beryllium

copper (C17200)

0.70 to 0.90 mm, 0.635 mm

square

1.2 N typ.

0.6 N typ.

(polished steel gauge Ø 0.76

mm)

Min. 500 cycles

3A

Max. 10 mΩ

Min. 1000 V RMS

PP Plating code

Sleeve Clip

87

83

Tin

Gold flash

Gold 0.75 µm

NNN number of poles.

Replace

NNN

with the requested

number of poles, e.g. 803-87-NNN-10-268101 for a double

row version with 16 pins becomes 803-87-016-10-268101

General technical specs. ...

803-PP-NNN-10-001101

Straight socket connector height 7 mm:

solder tail, double row.

Mating pins: Ø 0.76 mm

Availability from: 4 to 100 contacts

Standard number of contacts 100.

http://www.precidip.com/catalog/product.asp?c=0&p=108&i=391&q=803-PP-NNN-10... 05-Sep-2011
