53K15R-010N3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 53K15R-010N3

53K15R-010N3: DescriptionRF/Microwave Termination, 0MHz Min, 3000MHz Max, 50ohm,; CategoryWireless rf/communication Radio frequency and microwave; File Size243KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

53K15R-010N3 Overview

RF/Microwave Termination, 0MHz Min, 3000MHz Max, 50ohm,

53K15R-010N3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	N
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Base Number Matches	1

Preview

Download Datasheet

View All

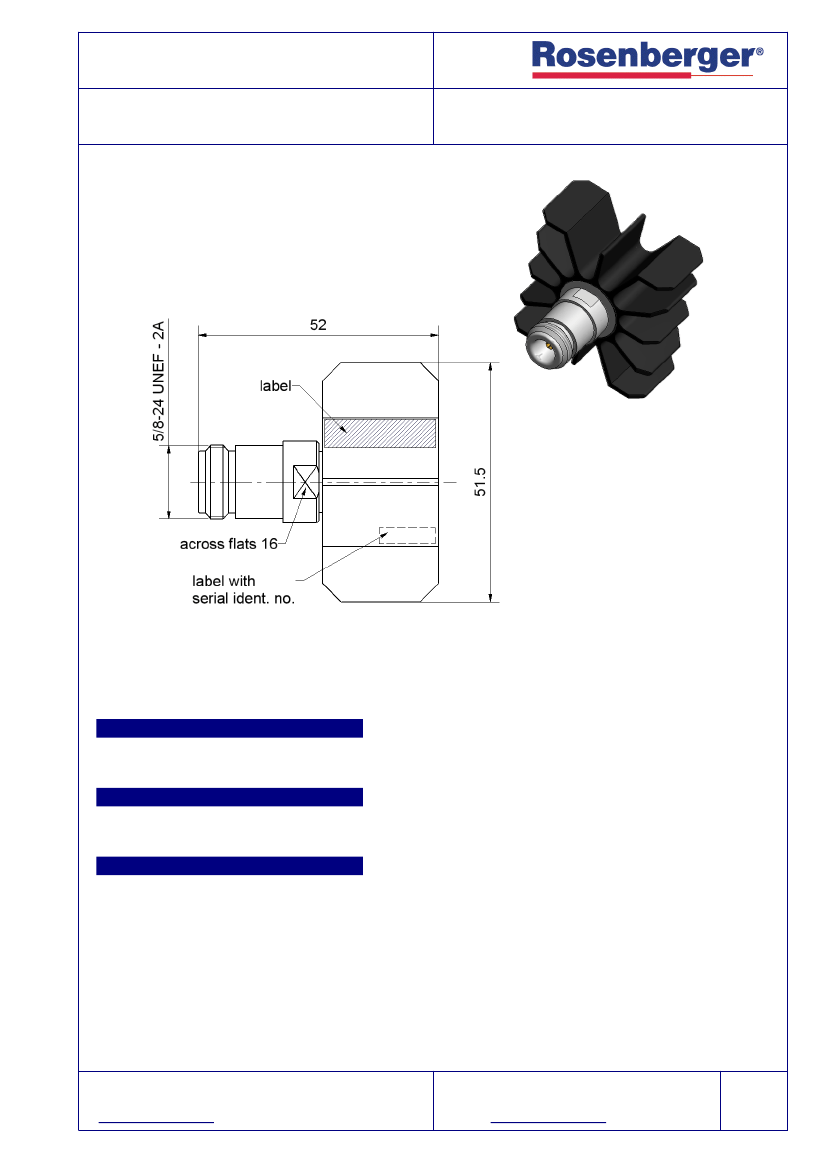

TECHNICAL DATA SHEET

N 50

Ω

TERMINATION

JACK 10 WATT

53K15R-010N3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-16, MIL-PRF-39012, CECC 22210

Documents

N/A

Material and plating

Connector parts

Center contact

Outer contact

Heatsinks

Dielectric

Substrate

Material

Beryllium copper

Brass

PTFE

ALN

Plating

Gold, min. 1.27 µm, over nickel

Flash white bronze over silver(e.g. Optargen®)

Black anodized

RF_35/08.06/4.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/1
