5962-8863902RX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8863902RX

5962-8863902RX: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20; Categorylogic logic; File Size202KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8863902RX Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20

5962-8863902RX Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20
Contacts	20
Reach Compliance Code	unknown
series	FCT
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	9.8 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

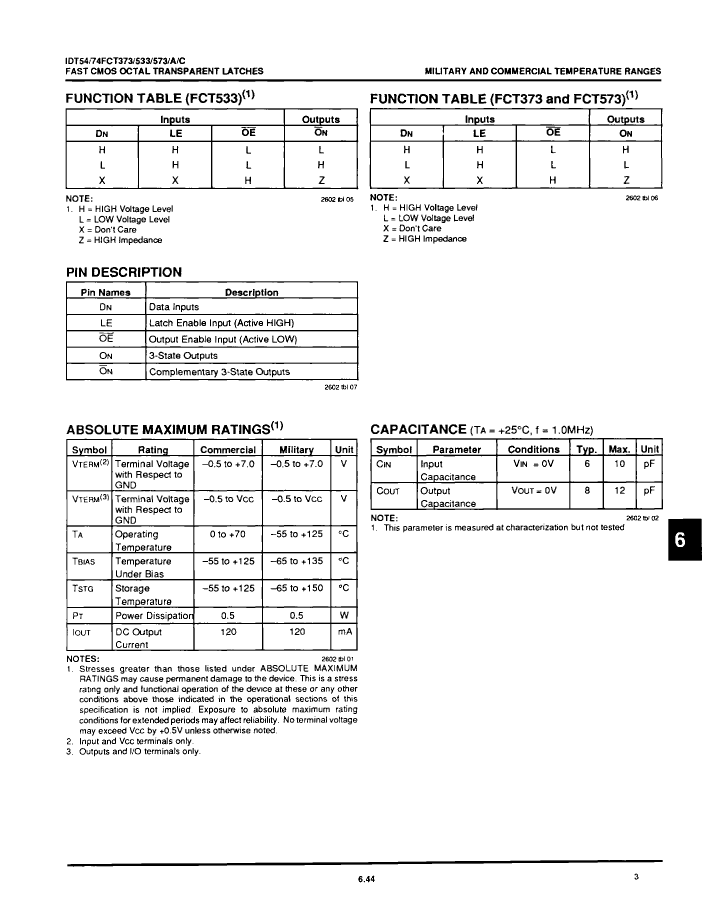

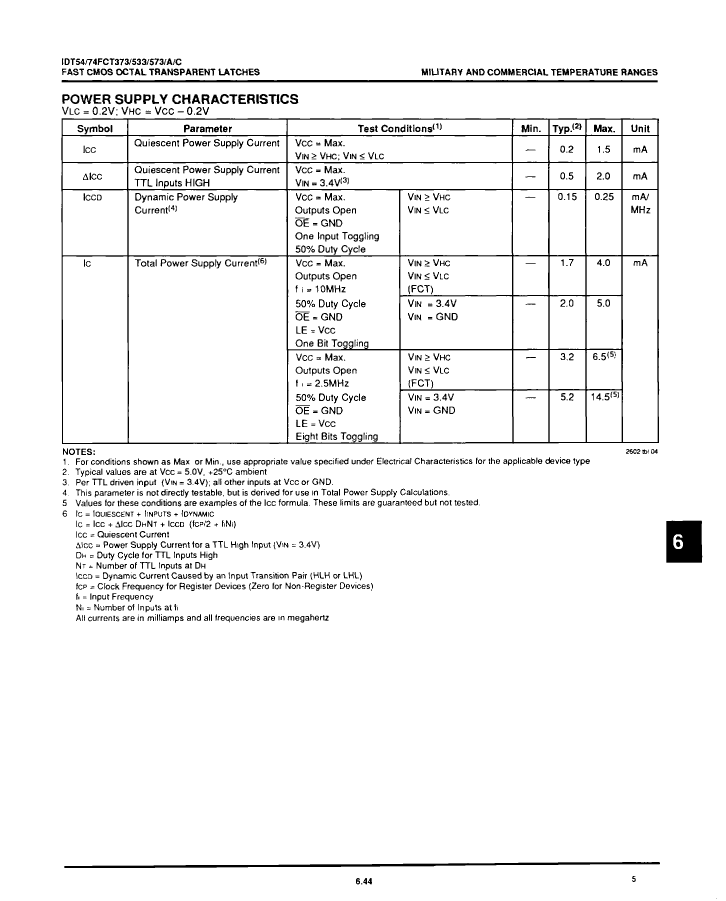

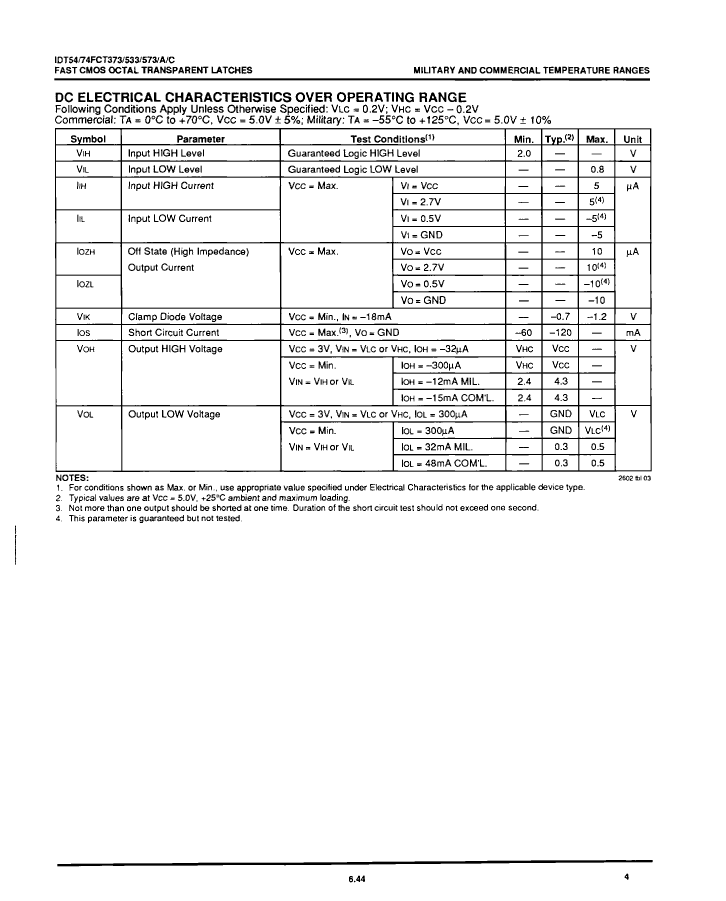

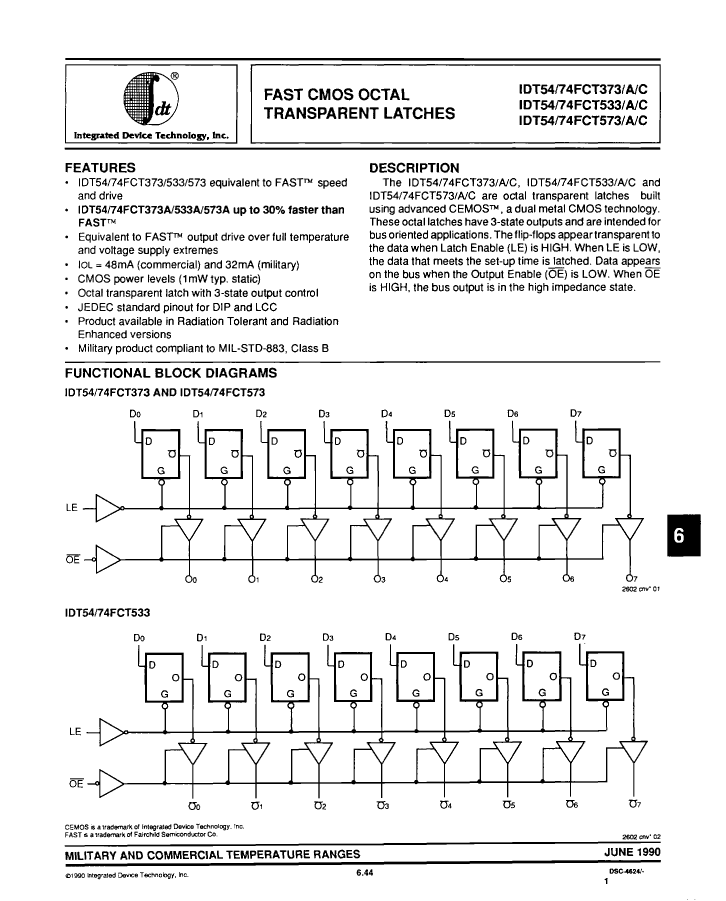

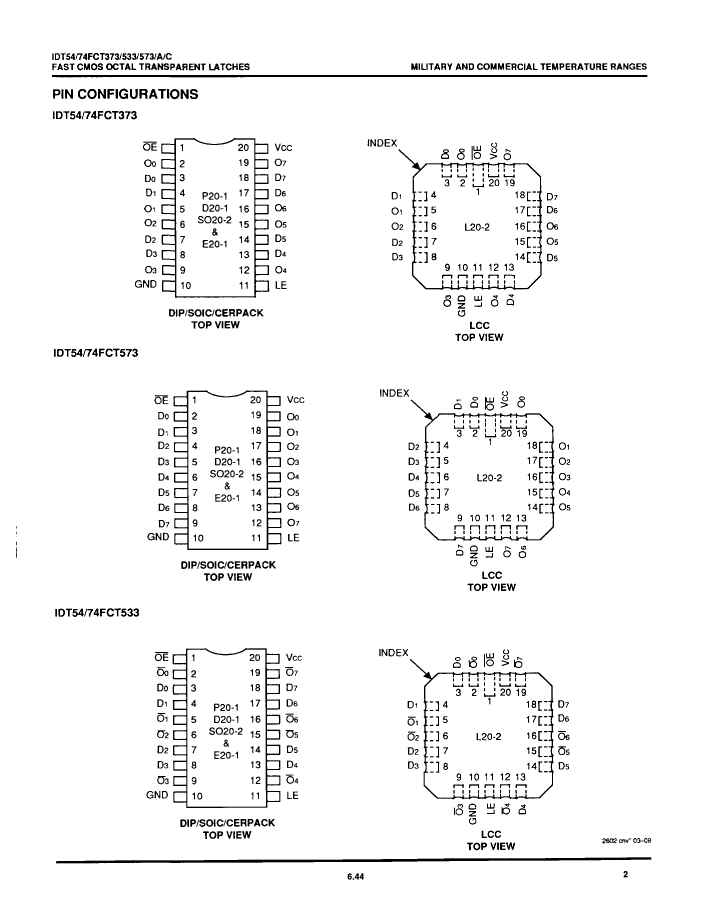

Preview

Download Datasheet

View All

5962-8863902RX Related Products

	5962-8863902RX	5962-8863902SX	5962-88639022X
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.540 X 0.300 INCH, 0.100 INCH HEIGHT, FP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.358 X 0.358 INCH, 0.100 INCH, LCC-20
Parts packaging code	DIP	DFP	QLCC
package instruction	1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20	DFP,	0.358 X 0.358 INCH, 0.100 INCH, LCC-20
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
series	FCT	FCT	FCT
JESD-30 code	R-XDIP-T20	R-XDFP-F20	S-XQCC-N20
JESD-609 code	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DFP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
propagation delay (tpd)	9.8 ns	9.8 ns	9.8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)
