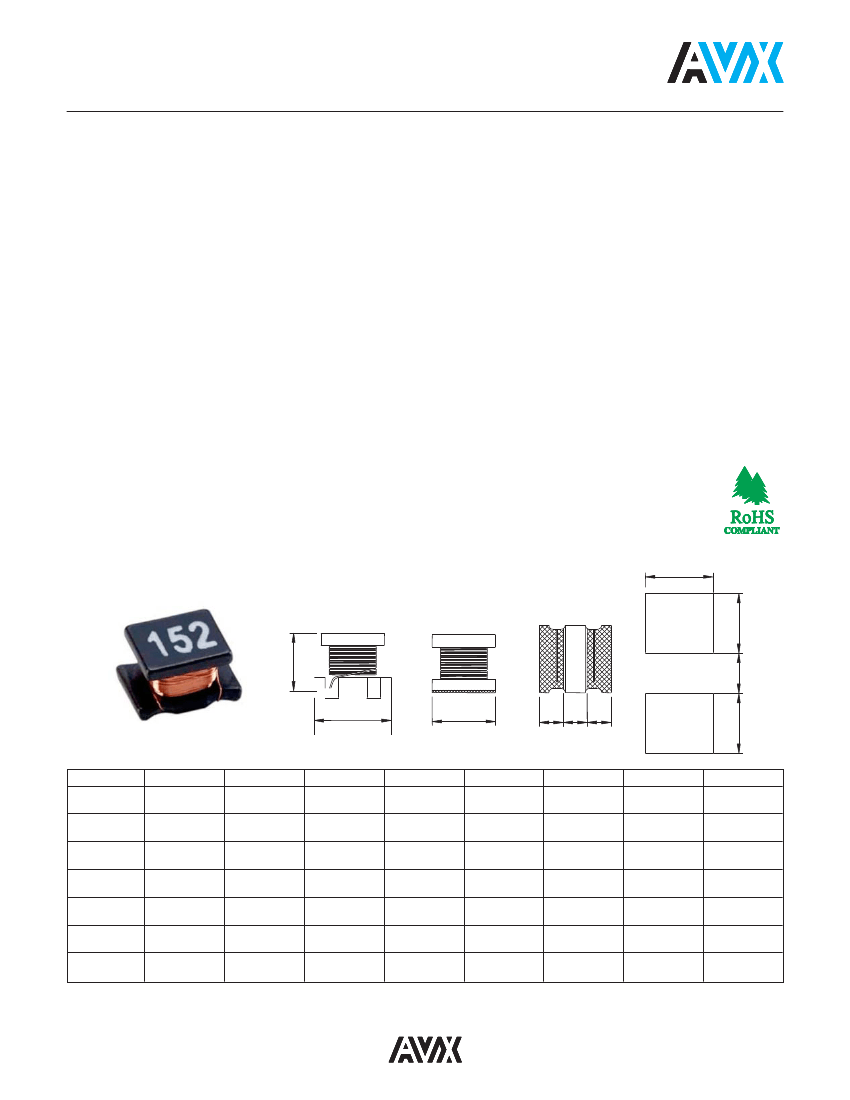

LMax SMD Power Inductor
LMMN Series – Miniature Style M
FEATURES
• The miniature chip inductors is wound on a special ferrite core.
• 0302/ 03A2/ 0403 are high Q value at high frequency and low
DC resistance.
• 03A2/ 0403/ 0605 are low DC resistance, high current
capacity, and high impedance characteristics. They are
excellent for using as a choke coil in DC power supply circuits.
CHARACTERISTICS FOR
LWI0I/LWI02/LWI03/LWI04
• Rated DC Current (Isat): The current when the inductance
becomes 30% typical its initial value (Ta=25°C)
• TemperatureRise Current(I rms): The actual currentwhen the
temperature of coil becomes A T=40°C (Ta=25°C)
• Operating temperature range: -40
~
105°C
APPLICATIONS
• Pagers, Cordless Phone
• High Frequency Communication Products
• Personal Computers
• Disk Drives And Computer Peripherals
• DC Power Supply Circuits
INDUCTANCE AND RATED
CURRENT RANGES
• 0202
1.00
~
10μH
2.80
~
0.65A
• 02A2
1.00
~
10μH
3.70
~
0.90A
• 02B2
1.00
~
22μH
2.30
~
0.51A
• 0302
1.00
~
100μH
1.00
~
0.1A
• 03A2
1.00
~
560μH
0.445
~
0.04A
• 0403
1.00
~
2200μH
0.50
~
0.03A
• 0302 (C) 0.47
~
120μH
3.40
~
0.17A
• 03A2 (C) 1.00
~
560μH
1.00
~
0.06A
• 0403 (C) 1.00
~
470μH
1.08
~
0.09A
• 0605 (C) 0.12
~
10000μH 6.00
~
0.05A
• Electrical specifications at 25°C
H
CHARACTERISTICS
Except 0202/02A2/02B2/0302
• Rated DC Current: The current when the inductance becomes
10% lower than its initial value or the current when the
temperature of coil increases A T20°C. The smaller one is
defined as Rated DC Current. (Ta=25°C)
• Operating temperature range: -40
~
85°C
DIMENSIONS
I
C
PAD
LAYOUT
A
B
E
F
E
J
I
mm (inches)
A
2.50 ± 0.20
0202
(0.098 ± 0.008)
2.50 ± 0.20
02A2
(0.098 ± 0.008)
2.50 ± 0.20
02B2
(0.098 ± 0.008)
3.20 ± 0.30
0302 / 0302 (C)
(0.126 ± 0.012)
3.20 ± 0.30
03A2 / 03A2 (C)
(0.126 ± 0.012)
4.50 ± 0.30
0403 / 0403 (C)
(0.177 ± 0.012)
5.70 ± 0.30
0605 (C)
(0.224 ± 0.012)
Type
B
2.00 ± 0.20
(0.079 ± 0.008)
2.00 ± 0.20
(0.079 ± 0.008)
2.50 ± 0.20
(0.098 ± 0.008)
2.50 ± 0.20
(0.098 ± 0.008)
2.50 ± 0.20
(0.098 ± 0.008)
3.20 ± 0.20
(0.126 ± 0.008)
5.00 ± 0.30
(0.197 ± 0.012)
C
1.00 max.
(0.039)
1.25 max.
(0.049)
1.05 max.
(0.041)
1.55 ± 0.30
(0.061 ± 0.012)
2.00 ± 0.30
(0.079 ± 0.012)
2.60 ± 0.30
(0.102 ± 0.012)
4.70 ± 0.50
(0.185 ± 0.020)
E
0.40 ± 0.20
(0.016 ± 0.008)
0.40 ± 0.20
(0.016 ± 0.008)
0.85 ref
(0.033)
1.05 ± 0.30
(0.041 ± 0.012)
1.05 ± 0.30
(0.041 ± 0.012)
1.00 min.
(0.039)
1.30 min.
(0.051)
F
1.00 min.
(0.039)
1.00 min.
(0.039)
0.85 ref
(0.033)
1.05 ± 0.30
(0.041 ± 0.012)
1.05 ± 0.30
(0.041 ± 0.012)
1.00 min.
(0.039)
1.70 min.
(0.067)
H
2.10
(0.083)
2.10
(0.083)
2.50
(0.098)
2.00
(0.079)
2.00
(0.079)
3.00
(0.118)
5.00
(0.197)
I
0.90
(0.035)
0.90
(0.035)
1.20
(0.047)
1.50
(0.059)
1.50
(0.059)
2.00
(0.079)
2.00
(0.079)
J
0.80
(0.031)
0.80
(0.031)
0.80
(0.031)
1.00
(0.039)
1.00
(0.039)
1.20
(0.047)
2.00
(0.079)
