2697-1010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2697-1010

2697-1010: Description12000MHz - 18000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3.7dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size180KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2697-1010 Overview

12000MHz - 18000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3.7dB INSERTION LOSS-MAX

2697-1010 Parametric

Parameter Name	Attribute value
Objectid	1439181006
Reach Compliance Code	unknown
structure	MODULE
Maximum input power (CW)	30 dBm
Maximum insertion loss	3.7 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	12000 MHz
Maximum operating temperature	95 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	2

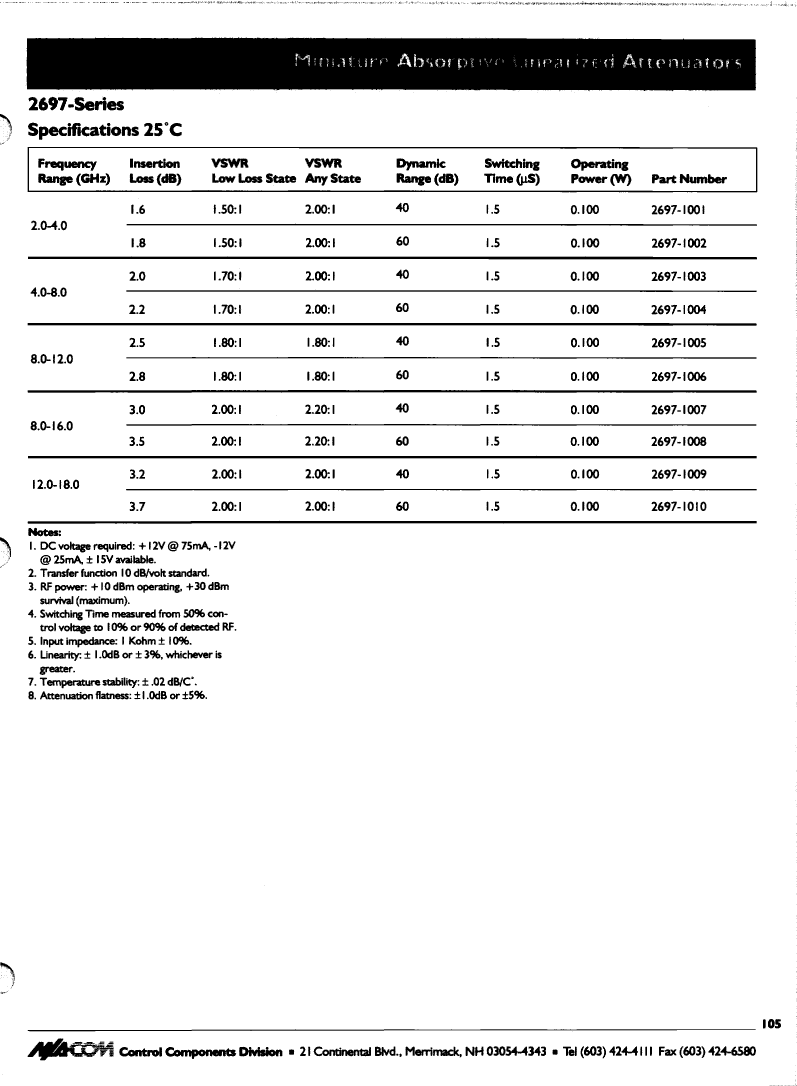

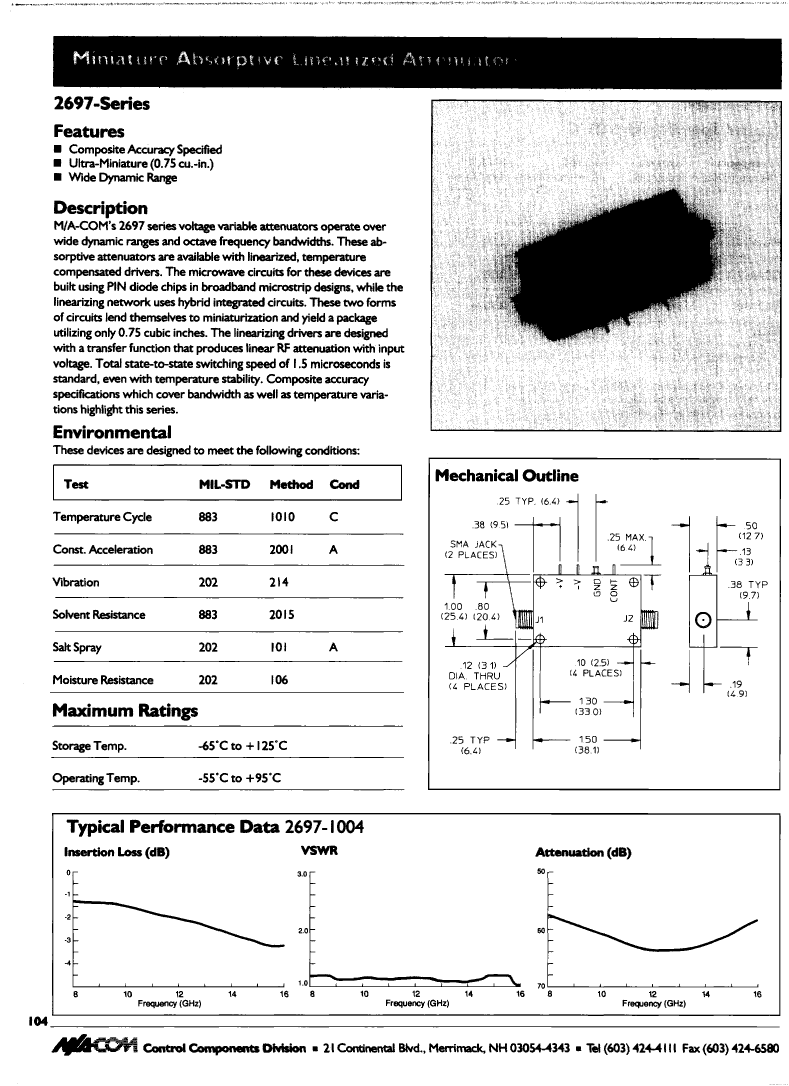

Preview

Download Datasheet

View All

2697-1010 Related Products

	2697-1010	2697-1003	2697-1002	2697-1005	2697-1006	2697-1009	2697-1008	2697-1001	2697-1004	2697-1007
Description	12000MHz - 18000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3.7dB INSERTION LOSS-MAX	4000MHz - 8000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2dB INSERTION LOSS-MAX	2000MHz - 4000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 1.8dB INSERTION LOSS-MAX	8000MHz - 12000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.5dB INSERTION LOSS-MAX	8000MHz - 12000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.8dB INSERTION LOSS-MAX	12000MHz - 18000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3.2dB INSERTION LOSS-MAX	8000MHz - 16000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3.5dB INSERTION LOSS-MAX	2000MHz - 4000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 1.6dB INSERTION LOSS-MAX	4000MHz - 8000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.2dB INSERTION LOSS-MAX	8000MHz - 16000MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3dB INSERTION LOSS-MAX
Reach Compliance Code	unknown	unknow	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	3.7 dB	2 dB	1.8 dB	2.5 dB	2.8 dB	3.2 dB	3.5 dB	1.6 dB	2.2 dB	3 dB
Maximum operating frequency	18000 MHz	8000 MHz	4000 MHz	12000 MHz	12000 MHz	18000 MHz	16000 MHz	4000 MHz	8000 MHz	16000 MHz
Minimum operating frequency	12000 MHz	4000 MHz	2000 MHz	8000 MHz	8000 MHz	12000 MHz	8000 MHz	2000 MHz	4000 MHz	8000 MHz
Maximum operating temperature	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	2	2	2	1.8	1.8	2	2.2	2	2	2.2
Objectid	1439181006	-	1439180982	-	1439180994	-	1439181000	1439180979	1439180988	-
