DRA2TG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> DRA2TG

Preview

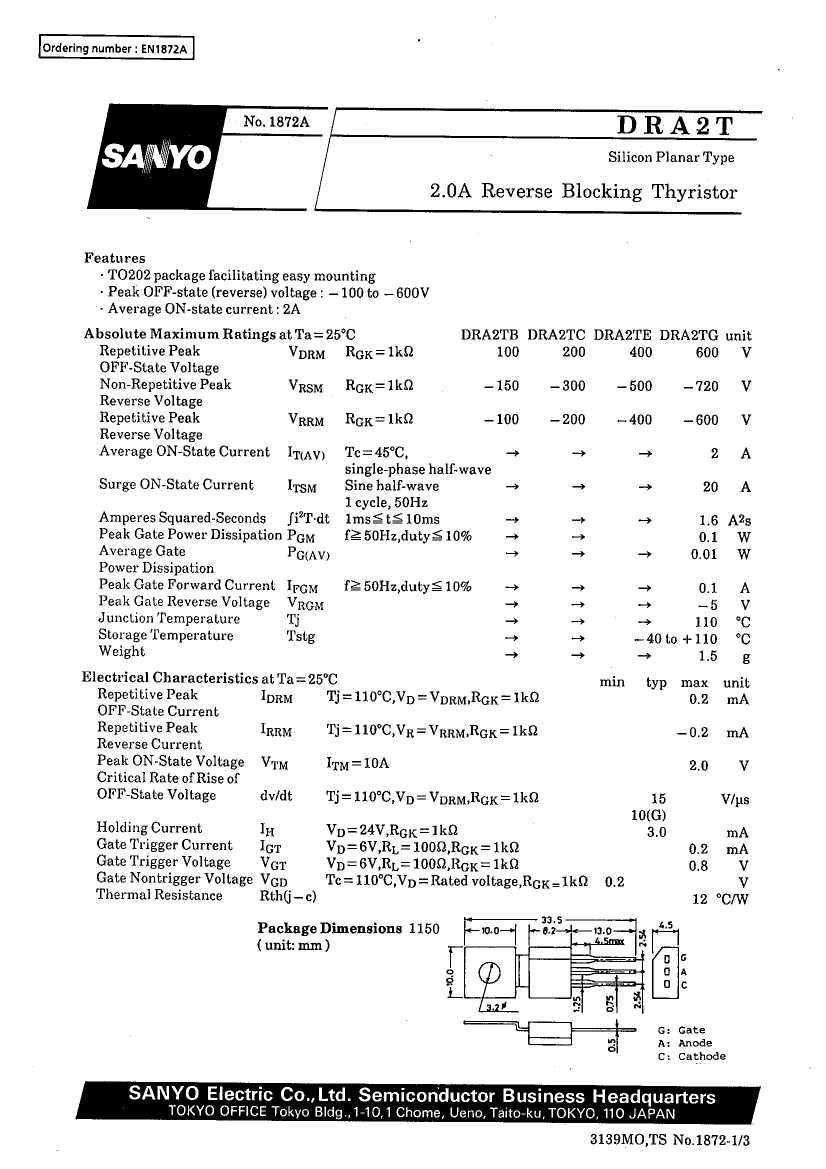

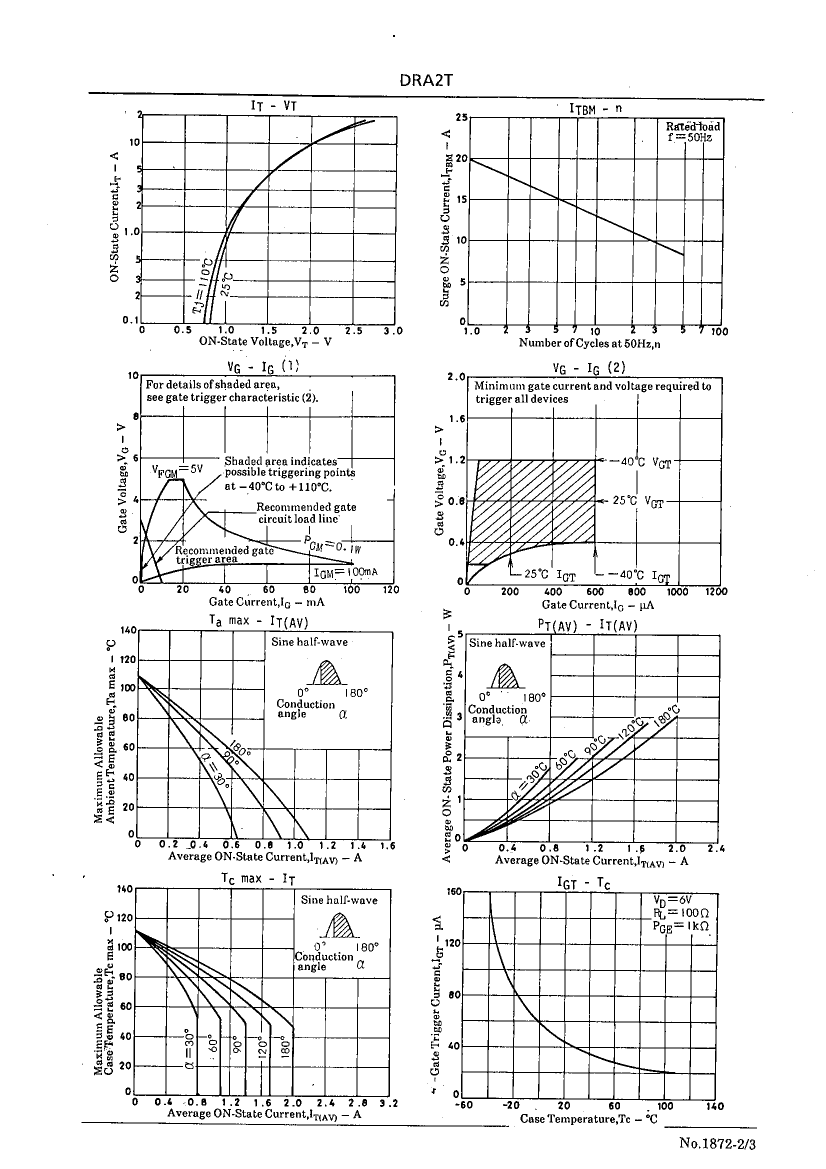

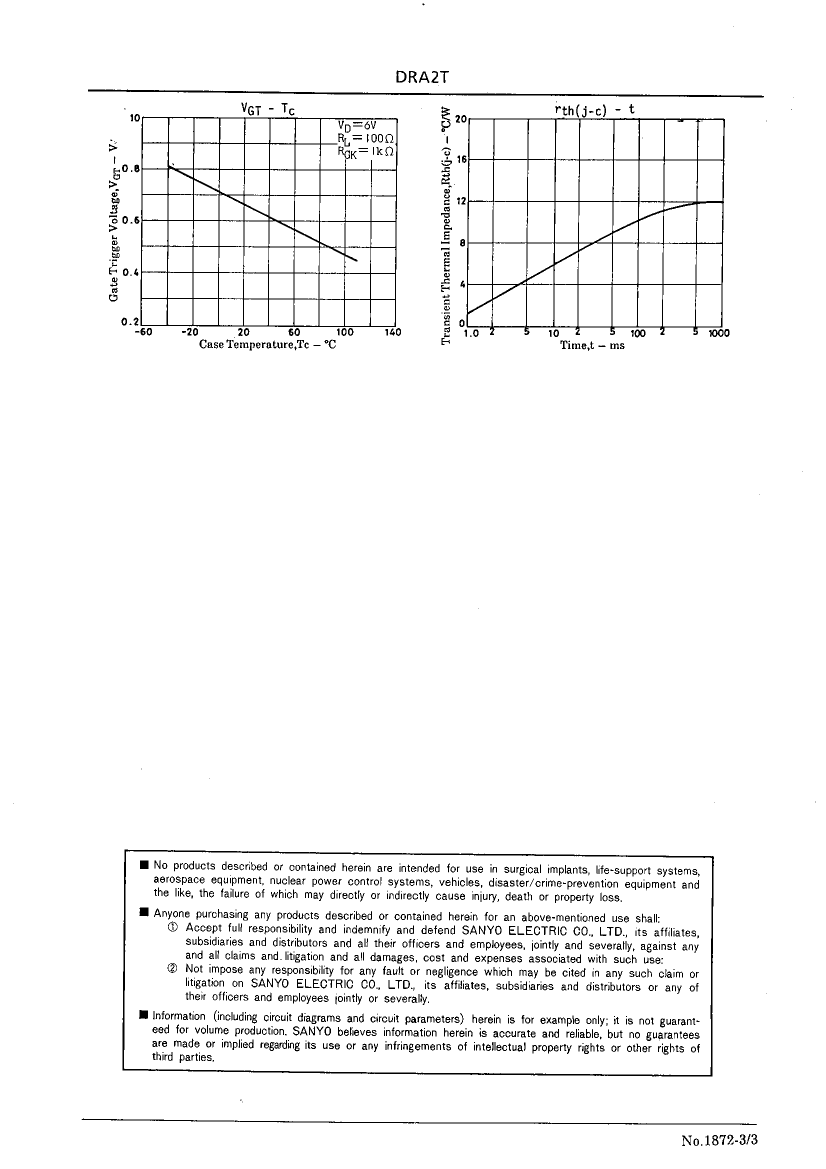

DRA2TG: Description2.0A Reverse Blocking Thyristor　; CategoryAnalog mixed-signal IC Trigger device; File Size88KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DRA2TG Overview

2.0A Reverse Blocking Thyristor　

DRA2TG Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	15 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	3 mA
JEDEC-95 code	TO-202
JESD-30 code	R-PSFM-T3
Maximum leakage current	0.2 mA
On-state non-repetitive peak current	20 A
Number of components	1
Number of terminals	3
Maximum on-state current	2000 A
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	3.14 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	SCR

Preview

Download Datasheet

View All

DRA2TG Related Products

	DRA2TG	DRA2T	DRA2TC	DRA2TB	DRA2TE
Description	2.0A Reverse Blocking Thyristor	2.0A Reverse Blocking Thyristor	2.0A Reverse Blocking Thyristor	2.0A Reverse Blocking Thyristor	2.0A Reverse Blocking Thyristor
Maker	SANYO	SANYO	SANYO	SANYO	SANYO
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
JEDEC-95 code	TO-202	TO-202	TO-202	TO-202	TO-202
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
On-state non-repetitive peak current	20 A	20 A	20 A	20 A	20 A
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum on-state current	2000 A	2000 A	2000 A	2000 A	2000 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	3.14 A	3.14 A	3.14 A	3.14 A	3.14 A
Repeated peak reverse voltage	600 V	100 V	200 V	100 V	400 V
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	SCR	SCR	SCR	SCR	SCR
Critical rise rate of minimum off-state voltage	15 V/us	-	15 V/us	15 V/us	15 V/us
Maximum holding current	3 mA	-	3 mA	3 mA	3 mA
Maximum leakage current	0.2 mA	-	0.2 mA	0.2 mA	0.2 mA
Maximum operating temperature	110 °C	-	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	600 V	-	200 V	100 V	400 V
ECCN code	-	EAR99	EAR99	EAR99	-
