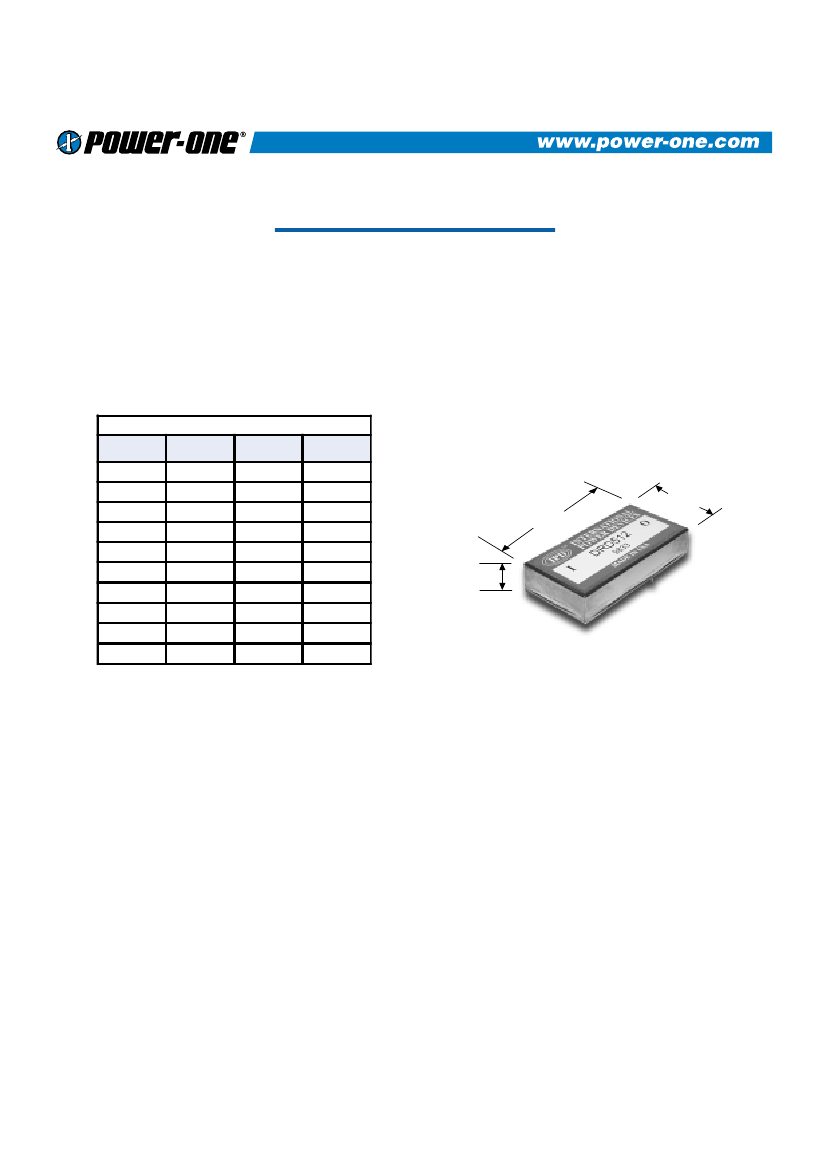

DRD SERIES - DUAL OUTPUT, 2 WATT
DESCRIPTION
DRD dual output DC/DC converters offer excellent
regulation and isolation in an industry standard
package. Available in several input versions, the
DRD is perfect for industrial, datacom, or telecom
applications. The DRD features short circuit protec-
tion and 500 VDC isolation. Please see the DRS
series for single output applications.
FEATURES
• Industry Standard
Package
• Industry Standard
Pinout
• 85°C Case Operation
• Short Circuit
Protection
•
5V, 12V, 24V, 28V,
•
•
•
•
and 48V Inputs
Input Pi Filter
6-Sided Shielding
Regulated Outputs
500V Isolation
Selection Chart
Model
DRD512
DRD515
DRD1212
DRD1215
DRD2412
DRD2415
DRD2812
DRD2815
DRD4812
DRD4815
Input Range
VDC
4.65 - 5.50
4.65 - 5.50
10.90 - 13.2
10.90 - 13.2
21.60 - 26.40
21.60 - 26.40
25.20 - 30.80
25.20 - 30.80
43.20 - 52.80
43.20 - 52.80
Output VDC Output Current
±12
±15
±12
±15
±12
±15
±12
±15
±12
±15
±0.080
±0.065
±0.080
±0.065
±0.080
±0.065
±0.080
±0.065
±0.080
±0.065
0.40”
(10.2mm)
2.00”
(50.8mm)
1.00”
(25.4mm)
Note: For model options, see the last page of this file.
1
OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that
you prefer and add them to the model number. Example ordering options are located below the
options table.
OPTION
Negative Logic
Lucent Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICABLE SERIES
HAS, HBD, HBS, HES, LES, QBS,
QES, TES, TQD
HAS, HBD, HBS, HES, QBS, QES
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
REMARKS
TTL “Low” Turns Module ON
TTL “High” Turns Module OFF
PIN LENGTH AND HEATSINK
OPTIONS
0.110” (2.8mm) Pin Length
0.150” (3.8mm) Pin Length
0.24” (6.1mm) Horizontal Heatsink
0.24” (6.1mm) Vertical Heatsink
0.45” (11.4mm) Horizontal
Heatsink
0.45” (11.4mm) Vertical Heatsink
0.95” (24.1mm) Horizontal
Heatsink
0.95” (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
Standard Pin Length is 0.180”
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and
0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS
Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS
The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
2
