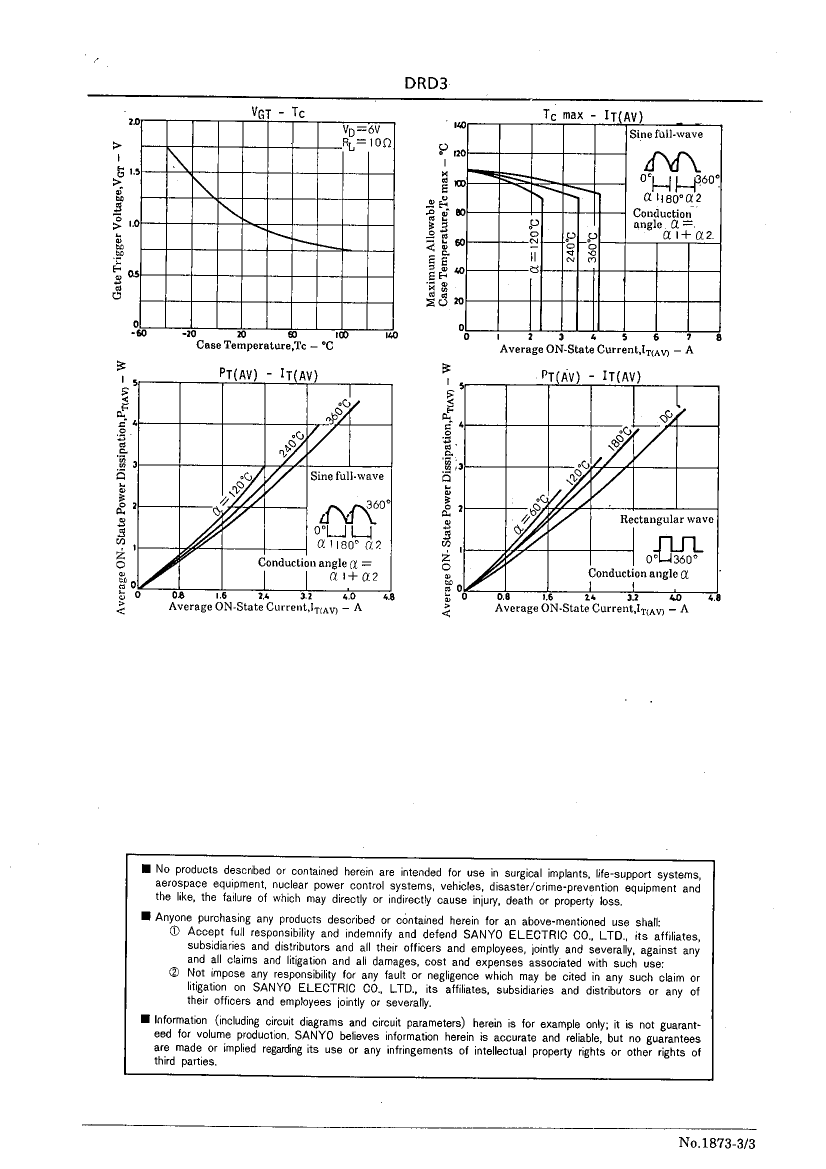

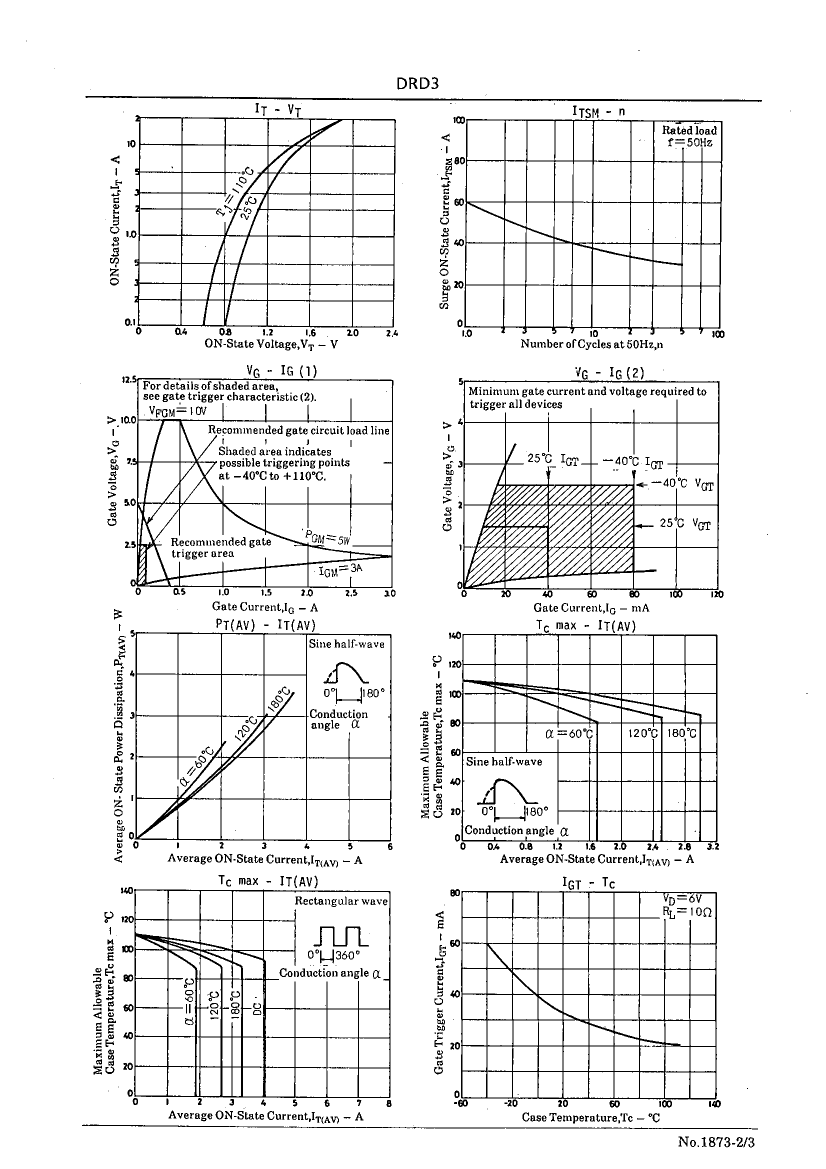

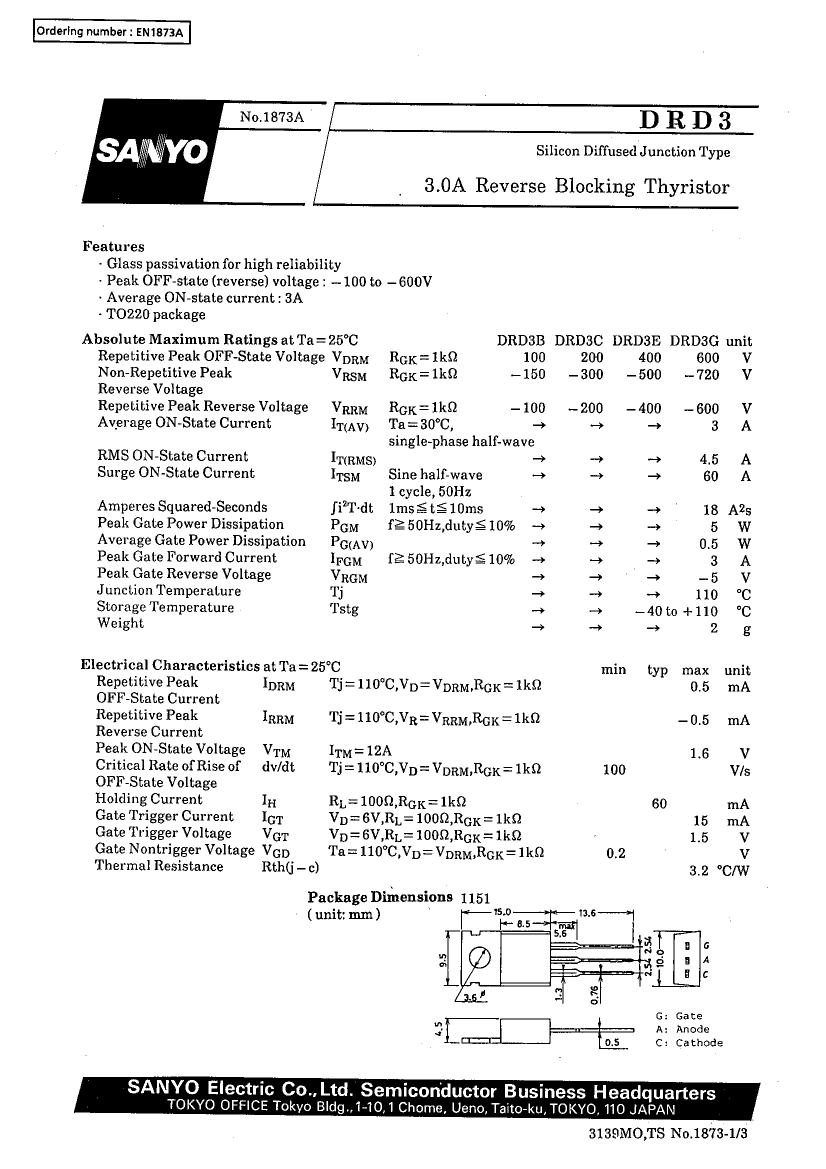

VOLTAGE REFERENCE DIODE
| Parameter Name | Attribute value |
| Maker | SANYO |
| Parts packaging code | TO-220AB |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| Other features | HIGH RELIABILITY |
| Configuration | SINGLE |
| Critical rise rate of minimum off-state voltage | 100 V/us |
| Maximum DC gate trigger current | 15 mA |
| Maximum DC gate trigger voltage | 1.5 V |
| JEDEC-95 code | TO-220AB |
| JESD-30 code | R-PSFM-T3 |
| Maximum leakage current | 0.5 mA |
| On-state non-repetitive peak current | 60 A |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum on-state current | 3000 A |
| Maximum operating temperature | 110 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum rms on-state current | 4.5 A |
| Off-state repetitive peak voltage | 400 V |
| Repeated peak reverse voltage | 400 V |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Trigger device type | SCR |
| DRD3E | DRD3C | DRD3G | DRD3 | DRD3B | |
|---|---|---|---|---|---|
| Description | VOLTAGE REFERENCE DIODE | VOLTAGE REFERENCE DIODE | VOLTAGE REFERENCE DIODE | VOLTAGE REFERENCE DIODE | VOLTAGE REFERENCE DIODE |
| Maker | SANYO | SANYO | SANYO | SANYO | SANYO |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AB | SFM | TO-220AB |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum DC gate trigger current | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA |
| Maximum DC gate trigger voltage | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| JEDEC-95 code | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| On-state non-repetitive peak current | 60 A | 60 A | 60 A | 60 A | 60 A |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Maximum on-state current | 3000 A | 3000 A | 3000 A | 3000 A | 3000 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 4.5 A | 4.5 A | 4.5 A | 4.71 A | 4.5 A |
| Repeated peak reverse voltage | 400 V | 200 V | 600 V | 100 V | 100 V |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Trigger device type | SCR | SCR | SCR | SCR | SCR |
| Other features | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | - | HIGH RELIABILITY |
| Critical rise rate of minimum off-state voltage | 100 V/us | 100 V/us | 100 V/us | - | 100 V/us |
| Maximum leakage current | 0.5 mA | 0.5 mA | 0.5 mA | - | 0.5 mA |
| Maximum operating temperature | 110 °C | 110 °C | 110 °C | - | 110 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | - | -40 °C |
| Off-state repetitive peak voltage | 400 V | 200 V | 600 V | - | 100 V |
| ECCN code | - | EAR99 | - | EAR99 | EAR99 |
