Features
s
s
s
s
Convex and concave terminals
4 isolated elements available
Resistance tolerance 5% and 1%
E24 series from 10 ohms to 1 megohm

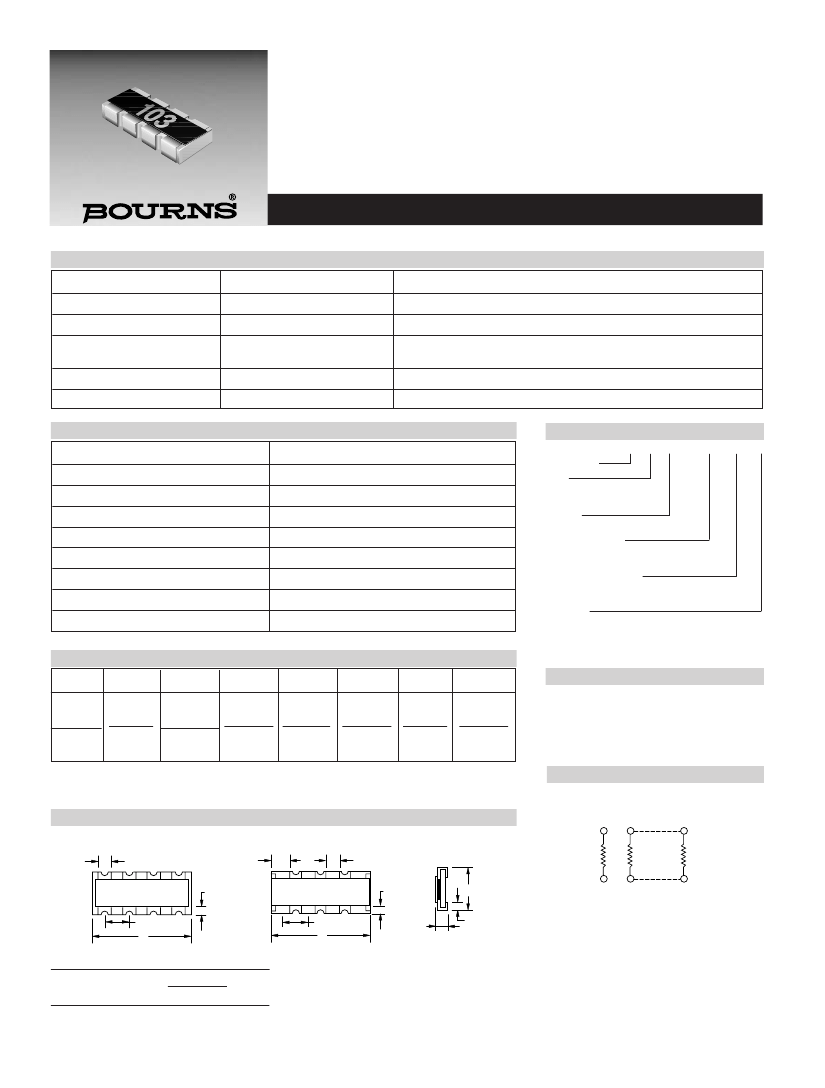

CAT/CAY 16 Series - Chip Resistor Arrays
Specifications
Requirement
Short Time Overload
Soldering Heat
Temperature Cycling (5)
Moisture Load Life
Load Life
Characteristics
Characteristics
Number of Elements
Power Rating
Resistance Tolerance
Resistance Range E24
T.C.R.
Max. Working Voltage
Operating Temp. Range
Rating Temperature
Dimensions
Model
CAT16
0.5±0.15
(.02±.006)
CAY16
Characteristics
±1%
±1%
±1%
±2%
±2%
Test Method
Rated Voltage X 2.5, 5 seconds
260°C ±5°C, 10 seconds ±1 second
125°C (30 minutes) - normal (15 minutes)
-30°C (30 minutes) - normal (15 minutes)
1000 hours
1000 hours
How To Order
CAT16/CAY16
4
62mW
5%, 1%
10 ohms - 1 megohm
±200ppm/°C
50V
-55°C - 125°C
+70°C
CA Y 16 - 103
Chip Arrays
Type
• T = Concave
• Y = Convex
Models
• 16 = 1205 Package Size
Resistance Code
• 103 = 10K ohms
• 1003 = 100K ohms (1% tolerance)
Resistance Tolerance
• J = ±5%
• F = ±1%
Resistors
• 4 = 4 pcs.
J
4
A
A’
—
B
C
D
E
F
3.2±0.2
0.8±0.05
1.6±0.2
0.5±0.1
(.126±.008) (.032±.002) (.063±.008) (.02±.004)
0.65±0.15
(.026±.006)
0.3±0.15
(.012±.006)
Tape And Reel Packaging
• 5,000 pieces per reel
• 178mm diameter plastic reel
• Paper tape
*
5% preferred, 1% available
Configuration
CAT
A
Schematic
n = 2,4,8
CAY
A'
A
R1
R2
Rn
F
F
D
C
B
C
B
E
F
DIMENSIONS ARE:
METRIC
(INCHES)
Specifications are subject to change without notice.
Standard Values Used in Bourns Chip Resistors & Arrays
According to IEC Publication 63
E96
100
102
105
107
110
113
115
118
121
124
127
130
133
137
140
143
147
150
154
158
162
165
169
174
178
182
187
191
196
200
205
210
215
221
226
232
237
243
249
255
261
267
274
280
287
294
301
309
316
324
332
340
348
357
365
374
383
392
402
412
422
432
442
453
464
475
487
499
511
523
536
549
562
576
590
604
619
634
649
665
681
698
715
732
750
768
787
806
Part Number Series Range
CR0402 (1%)
CR0402 (5%)
CR0603 (1%)
CR0603 (5%)
CR0805 (1%)
CR0805 (5%)
CR1206 (1%)
CR1206 (5%)
CAY10
CAT16/CAY16
CAY17
CAT25
E96 + E24
E24
E96 + E24
E24
E96 + E24
E24
E96 + E24
E24
E12
E12
E12
E24
825
845
866
887
909
931
953
976
E24
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
E12
10
12
15
18
22
27
33
39
47
56
68
82
Specifications are subject to change without notice.
Chip Resistor Arrays - Application Note
1. Land Pattern Design
Recommended land pattern design for the chip arrays shown in the following illustration.
Solder resist
f
a
Land
Solder resist
f
a
Land
Chip resistor array CAT
Chip resistor array CAY
b
p
b
p
Model
CAT16..4
CAY16..4
a
0.7 to 0.9
(.028 to .035)
0.7 to 0.9
(.028 to .035)
b
0.4 to 0.45
(.016 to .0178)
0.4 to 0.45
(.016 to .0178)
p
0.80
(.032)
0.80
(.032)
f
2.0 to 2.2
(.079 to .087)
2.4 to 2.8
(.094 to .11)
2. Component Placement
a. Reduce the mechanical stress to a minimum during and after placing of the unit in order not to damage the terminals and
protective coating.
b. Misplacement of components may cause solder bridges.
3. Soldering
a. Reflow soldering: Recommendation is shown in the following chart.
b. Wave soldering: Recommendation according to IEC standards.
c. Hand soldering: Don’t touch the protective coating of the part. Solder within 3 seconds when the temperature is over 280ºC.
Temperature (°C)
Preheating
250
200
150
100
50
0
60 sec. min.
Soldering
Gradual Cooling
10-30 sec.
120 sec. min.
DIMENSIONS ARE:
METRIC
(INCHES)
4. Cleaning
A recommended cleaning method is shown in the following table.
Cleaning Condition
Solvents
Dipping
Isopropyl alcohol
5 minutes maximum
Ultrasonic Wave Washing
1 minute maximum
Power: 20W/L
Frequency: 10 to 100kHz
Specifications are subject to change without notice.
