8FSM15P-30N1-FEC

Description
D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Locking, Plug
CategoryThe connector    The connector
File Size149KB,2 Pages
ManufacturerSPC Multicomp
Download Datasheet Parametric View All

8FSM15P-30N1-FEC Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Locking, Plug

8FSM15P-30N1-FEC Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.494 inch
body length1.539 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance15 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number8F
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Plating thicknessFLASH inch
Rated current (signal)1 A
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialMETAL
Termination typeIDC
Total number of contacts15
Maximum wire diameter26 AWG
Minimum wire diameter28 AWG
Base Number Matches1
PART NO.
ECN #
REV
A
REVISIONS
DESCRIPTION
RELEASED
DRAWN
DATE
CHECKD
Jagan
DATE
19/01/12
APPRVD
Farnell
DATE
02/02/12
8FSM Series
-
Ashok
19/01/12
Dimensions : Millimetres (Inches)
Specifications:
Recommended Panel Cut-out Dimensions
Current rating
Minimum insulation resistance
Minimum dielectric withstanding voltage
Operating temperature
Maximum contact resistance
Insulator material
Contact material
Contact plating
Wire size
: 1 ampere
: 1,000 MΩ (at 500 V dc)
: 500 V ac for one minute
: -55°C to 105°C
: 15 mΩ
: PBT with glass-fibre reinforced
: Brass
: Gold over nickel
: AWG 26 and 28 stranded,
1.27 mm conductor centre flat cable
Important Notice :
This data sheet and its contents (the "Information") belong to the mem-
bers of the Premier Farnell group of companies (the "Group") or are licensed to it. No
licence is granted for the use of it other than for information purposes in connection with
the products to which it relates. No licence of any intellectual property rights is granted. The
Information is subject to change without notice and replaces all data sheets previously sup-
plied. The Information supplied is believed to be accurate but the Group assumes no
responsibility for its accuracy or completeness, any error in or omission from it or for any
use made of it. Users of this data sheet should check for themselves the Information and
the suitability of the products for their purpose and not make any assumptions based on
information included or omitted. Liability for loss or damage resulting from any reliance on
the Information or use of it (including liability resulting from negligence or where the Group
was aware of the possibility of such loss or damage arising) is excluded. This will not oper-
ate to limit or restrict the Group's liability for death or personal injury resulting from its negli-
gence. Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
TOLERANCES:
UNLESS OTHERWISE
SPECIFIED,
DIMENSIONS ARE
FOR REFERENCE
PURPOSES ONLY.
DRAWN BY:
Ashok
CHECKED BY:
Jagan
APPROVED BY:
DATE:
19/01/12
DATE:
19/01/12
DATE:
02/02/12
DRAWING TITLE:

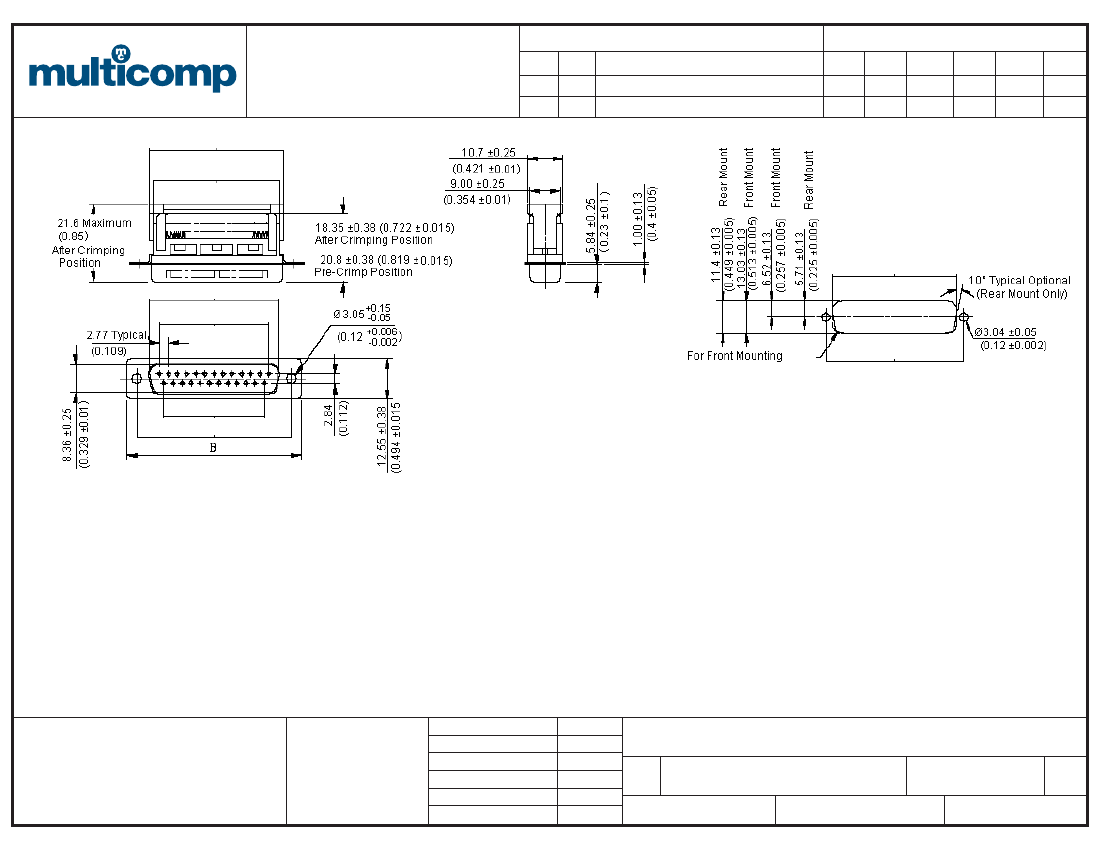

Metal D Type IDC Connectors - Unthreaded
SIZE
A
DWG NO.
M10001971
U.O.M.: mm (Inches)
ELECTRONIC FILE
REV
50301_DWG
SHEET:
1
OF
A
SCALE: NTS
2
