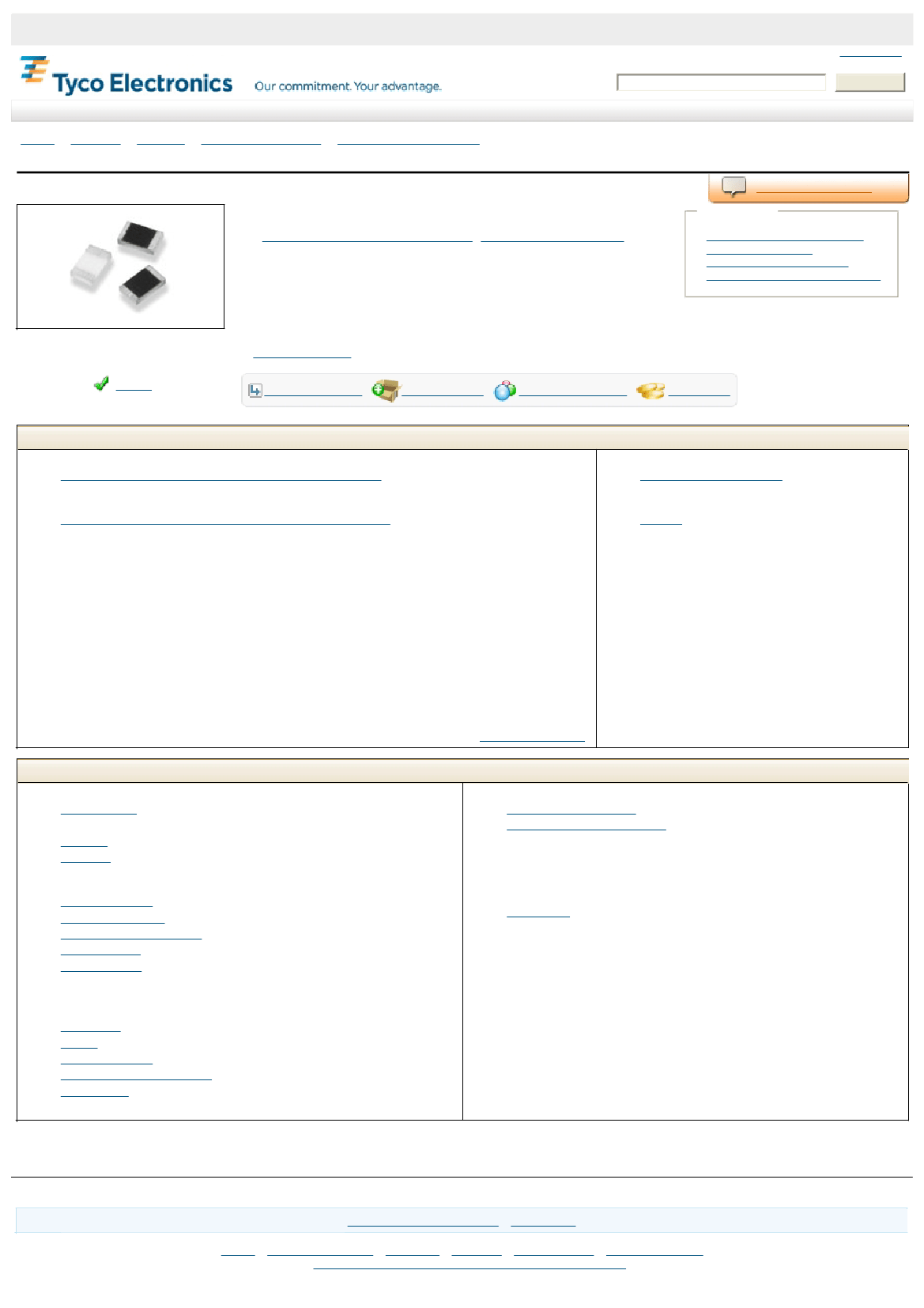

36401J10NGTD Product Details
Live Product Chat
Inductors
C onve rte d to EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
36401J10NGTD
(5-1624109-1)
T E I nternal N umber: 5 - 1 6 2 4 1 0 9 - 1
Product Highlights:
l
Inductor
l
Inductor Type = High Frequency
l
Lead Type = Surface Mount Terminals
l
Thin Film
l
Inductance = .01 ?H
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
HIGH FREQUENC Y INDUC TORS SMD SERIES 3640 0603
(PDF, English)
Catalog Pages/Data Sheets:
l
High Frequency Inductors SMD - Type 3640 Series - Ty...
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= Inductor
l
Inductor Type = High Frequency
l
Element
= Thin Film
l
Shielded
= No
Electrical Characteristics:
l
Inductance (?H)
= 0.01
l
DC Resistance (?)
= 1
l
C urrent, Maximum (mA)
= 300
l
Quality Factor
= 15
l
Package Type
= Taped and Reeled
l
Tolerance (%) = 2
Body Related Features:
l
Lead Type
= Surface Mount Terminals
l
Series
= 3640
l
Packaging Style
= 0603
l
Package, C omponent Size
= 1.6 x 0.8
l
Mount Style
= Surface Mount
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Reflow solder capable to 245?C ,
Reflow solder capable to 260?C
l
RoHS/ELV C ompliance History = C onverted to comply with RoHS
directive
Operation/Application:
l
Application
= High Frequency
Other:
l
Brand = Sigma Inductors
Additional Information:
l
Product Line Information
Related Products:
l
