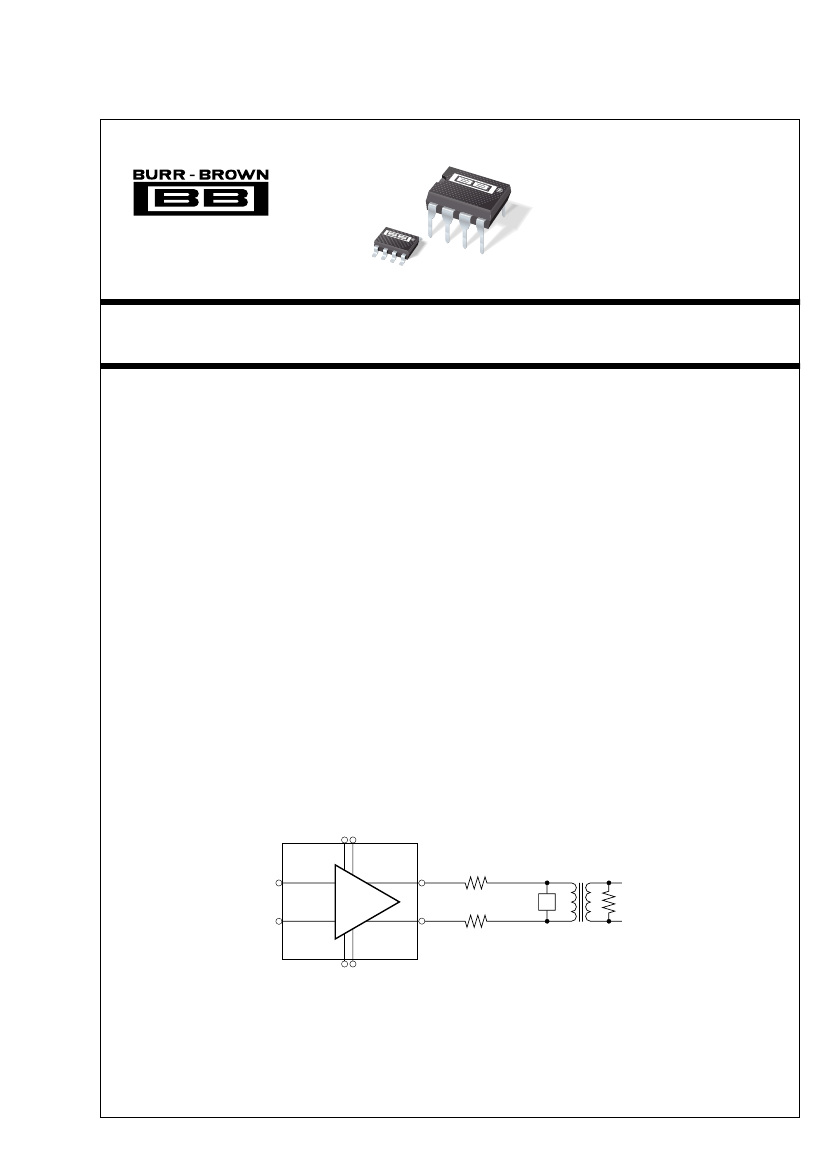

The DRV1100 is fixed gain differential line driver
designed for very low harmonic distortion at the high
powers required of xDSL line interface standards.
Operating on a single +5V supply, it can deliver
230mA peak output current and 9.5Vp-p differential
output voltage swing. This high output power on a
single +5V supply makes the DRV1100 an excellent
choice for the xDSL applications that require up to
17dBm power onto the line with high crest factors.
The DRV1100 is available in both 8-pin plastic DIP
and SO-8 packages.
APPLICATIONS
q
q
q
q
q
q
xDSL TWISTED PAIR LINE DRIVER
COMMUNICATIONS LINE DRIVER
TRANSFORMER DRIVER
SOLENOID DRIVER
HIGH POWER AUDIO DRIVER
CRT YOKE DRIVER
+5V
DRV1100
Out+
In+
G = 3V/V
In–
Patent
Pending
GND
Out–
4Ω
Protection
1:4
Transformer
135Ω
4Ω
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
NOTES: (1) Time from 50% point of input step to 50% point of output step. (2) Measurement Bandwidth = 500kHz. (3) Output common-mode voltage follows input
common-mode voltage; therefore, if input V
CM
= V
DD
/2, then output V
CM
= V
DD
/2.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN
assumes no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject
to change without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not
authorize or warrant any BURR-BROWN product for use in life support devices and/or systems.
®
DRV1100
2
PIN CONFIGURATIONS
Top View
ABSOLUTE MAXIMUM RATINGS
Analog Inputs: Current ..............................................
±100mA,
Momentary
±10mA,
Continuous
Voltage ....................................... GND –0.3V to V
DD
+0.2V
Analog Outputs Short Circuit to Ground (+25°C) ..................... Momentary
Analog Outputs Short Circuit to V
DD
(+25°C) ........................... Momentary
V
DD
to GND .............................................................................. –0.3V to 6V
Junction Temperature ................................................................... +150°C
Storage Temperature Range .......................................... –40°C to +125°C
Lead Temperature (soldering, 3s) ................................................. +260°C
Power Dissipation .............................. (See Thermal/Analysis Discussion)
GND
In+
In–
GND
1
2
3
4
8
7
6
5
Out–
V
DD
(+5V)
V
DD
(+5V)
Out+
PACKAGE/ORDERING INFORMATION
PRODUCT
+5V
6
In+
2
7
5
Out+
PACKAGE
8-Pin PDIP
8-Lead SO-8
PACKAGE DRAWING
NUMBER
(1)
006
182
DRV1100P
DRV1100U
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix C of Burr-Brown IC Data Book.
In–
3
8
Out–
4
1
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
