24Z4897

Description
Datacom Transformer, ISDN Application(s), 1:2
CategoryPower management    transformer
File Size27KB，1 Pages
ManufacturerVitec Electronics Corporation
Download Datasheet Parametric Compare View All

24Z4897 Overview

Datacom Transformer, ISDN Application(s), 1:2

24Z4897 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
applicationISDN
CertificationTUV
high10.2 mm
Insulation voltage1500 V
length23.4 mm
Manufacturer's serial number24Z
Installation featuresTHROUGH HOLE MOUNTED
Number of functions2
physical size23.4mm X 14.2mm X 10.2mm
Primary inductance22000 µH
surface mountNO
Transformer typeDATACOM TRANSFORMER
Turns ratio (Np:Ns)1:2
width14.2 mm
Base Number Matches1

Preview

Download Datasheet

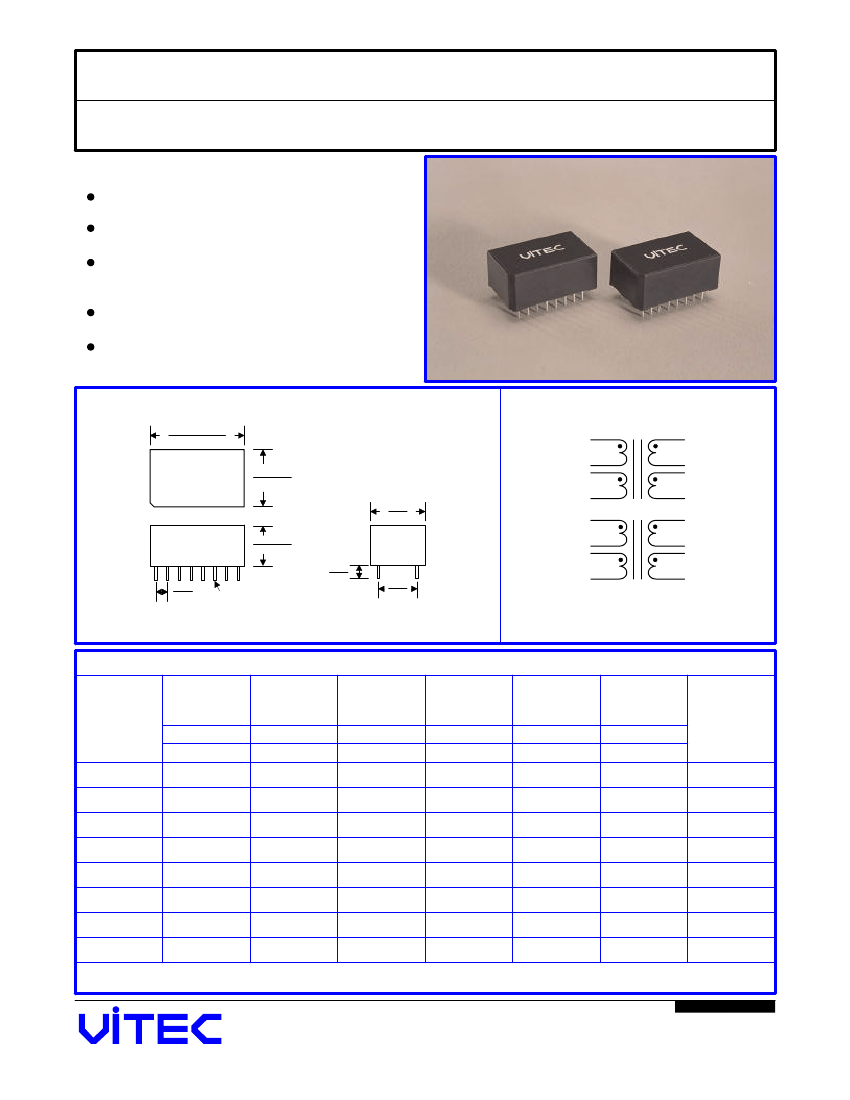

TYPE 24Z - ISOLATION TRANSFORMERS
Dual ISDN S Interface
FEATURES
Designed for ISDN S/T telecom applications.
Meets CCITT 1.430 pulse template.
1500 Vrms, basic insulation per IEC 950:1991, Mod.
EN60950:1992 +A1 +A2:1993, EN41003:1990
TUV Bauart certificate # B 95 04 18725 002
BABT BS EN60950 recognition pending.
PACKAGE
0.930 MAX
23.62 MAX
16
9
SCHEMATIC
1
0.560 MAX
14.20 MAX
8
0.560
14.20
0.445 MAX
11.30 MAX
0.130
3.30
#22
AWG
16
15
14
13
12
11
10
9
VITEC
24Z489X
1
2
3
4
5
6
7
0.400
10.20
0.100
2.54
8
PRI
SEC
Dimensions Inches/mm +/- 0.01" Unless noted
ELECTRICAL CHARACTERISTICS @ 25
o
C
Part
Number
Turns
Ratio
Ratio
+/- 5%
1:1&1:2
1:1&1:1
1:1.8 & 1:1.8
1:2&1:2
1:2.5&1:2.5
1:2&1:2
1:2.5&1:2.5
1:2&1:2
OCL
mH
MIN
22
22
22
22
22
22
22
22
Pri/Sec
L
L
uH
MAX
5
5
10
15
30
35
40
11
Pri/Sec
C
C
pF
MAX
100
130
120
120
125
120
100
100
Primary
DCR
Ohms
+/- 25%
2.4
2.4
2.5
2.5
2.5
2.5
2.5
2.4
Secondary
DCR
Ohms
+/- 25%
2.4
2.4
2.4
4.6
5.8
4.8
5.8
4.4
Primary
Pins
1-4, 5-8
1-4, 5-8
1-4, 5-8
1-4, 5-8
1-4, 5-8
1-4, 5-8
1-4, 5-8
1-4, 5-8
24Z4892
24Z4893
24Z4894
24Z4895
24Z4896
24Z4897
24Z4898
24Z4899
T-650.3
03/02
--
VITEC ELECTRONICS CORPORATION
www.VitecCorp.com
