BSF0302CDKC120MT: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size183KB，9 Pages; ManufacturerKing Core Electronics Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

BSF0302CDKC120MT Overview

General Purpose Inductor,

BSF0302CDKC120MT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	King Core Electronics Inc
package instruction	CHIP
Reach Compliance Code	unknown
uppercase and lowercase codes	1212
structure	Rectangular
core material	Ferrite
DC Resistance	0.32 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.3 mm
Package length	3 mm
Package form	SMT
Package width	3 mm
method of packing	TR
Maximum rated current	1 A
self resonant frequency	20 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

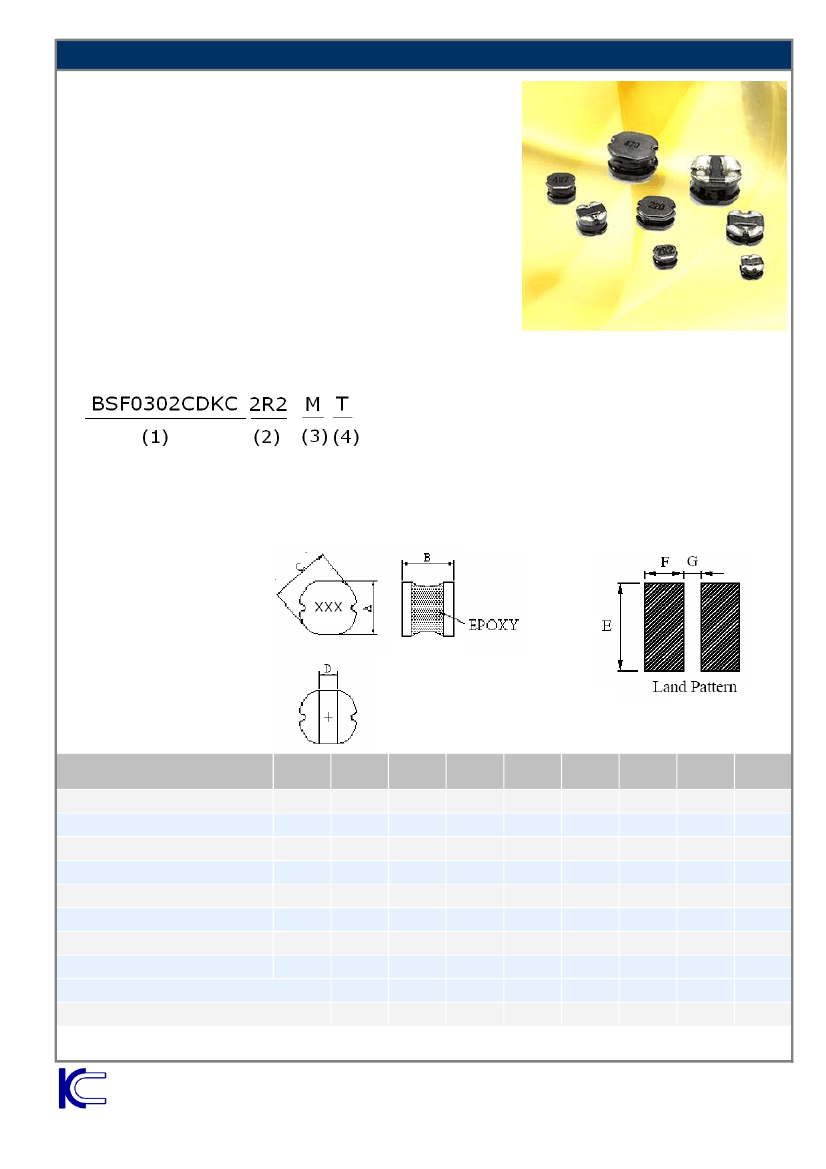

SPECIFICATION OF BSF□□□□CDKC ,CRKC SERIES

FEATURES

1. High saturation current inductor with ferrite core and

magnetic shielding design.

2. Low profile : Surface mounting(SMT) type and thickness with 2.0

to 5.0 mm for different size.

3. Low loss realized with low DCR.

4. Halogen free, lead free, RoHS compliant

APPLICATIONS

1. D/D converter unit design for 3C products, VRM for server.

2. DVD, HDD, STB, LCD display, IP CAM, GPS, USB connector,

Smart phones, Face Recognition System, IoT application...etc

ORDERING CODE

(1) PRODUCT TYPE CODE AND SIZE CODE(CRKC with lower resistance and CDKC with high satuation current

design)

(2) INDUCTANCE

(3) INDUCTANCE TOLERANCE ( K : ±10%, M : ±20% )

(4) REEL TAPING

SHAPE & DIMENSIONS

SIZE CODE

BSF0302CDKC

BSF0402CDKC

BSF0502CDKC

BSF0503CDKC

BSF0504CDKC

BSF0703CDKC

BSF0705CDKC

BSF0402CRKC

Typ.

3.0±0.3 2.3(max) 3.5±0.3

4.0±0.3

5.2±0.3

7.0±0.3

4.0±0.3

2.2±0.3

2.5±0.3

3.0±0.3

4.5±0.3

3.5±0.3

5.0±0.3

2.2±0.3

4.5±0.3

5.8±0.3

7.8±0.3

4.5±0.3

1.2

1.5

2.0

2.5

1.5

3.5

5.5

7.5

4.5

1.60

2.25

3.05

2.10

0.8

1.5

1.9

0.8

UNIT:mm

※All

the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.

KING CORE ELECTRONICS INC.

Tel:886-3-4698855

Fax:886-3-4691395

No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan

E-mail:kc@mail.kingcore.com.tw

Web Site:http://www.kingcore.com.tw

BSF-CDKC.A01
