CERLED
Ceramic Chip SMD
SMD – Wide-Viewing Angle

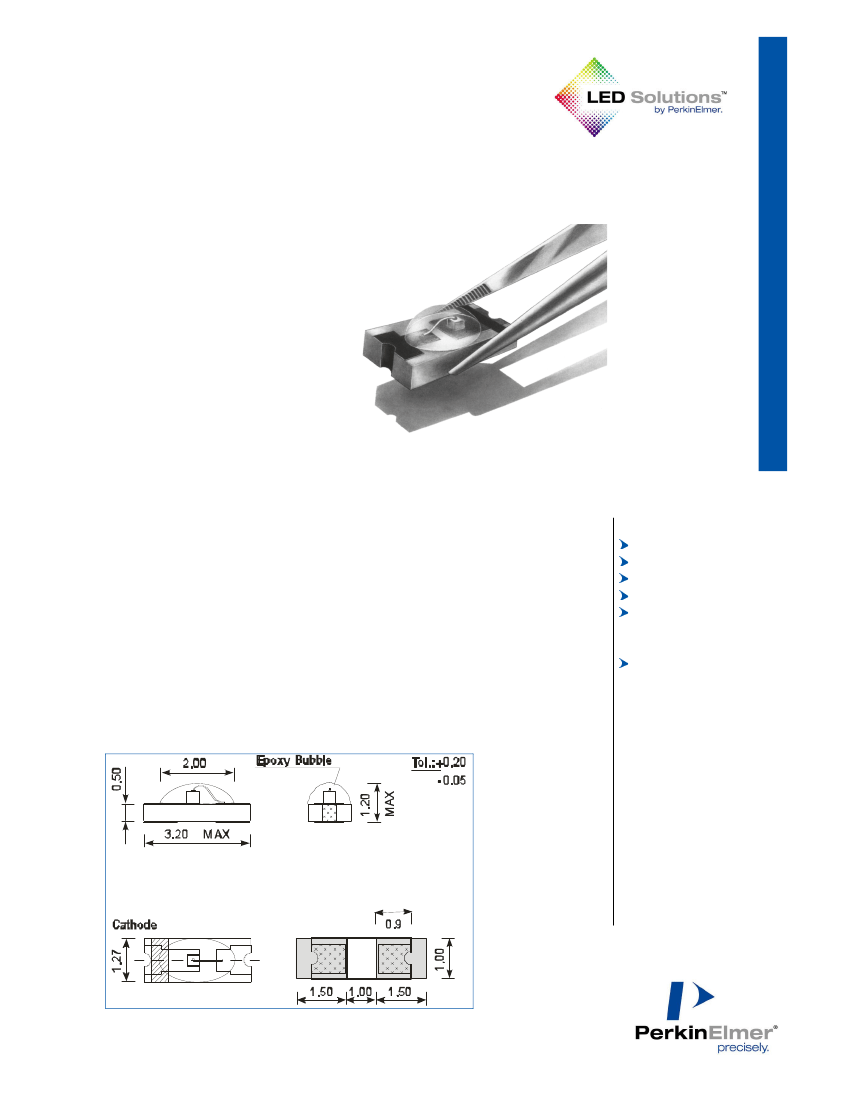

CR 10 YG yellow green
®
D A T A S H E E T
Description
The solder pads provide an excellent heat
sink. For multi-colour arrays just choose 2 or
more CERLEDs and mount them side by side
or even antiparallel. Ideal for back - light
applications. Small true chip - LED to build
custom configurations.
Available on special order in 8 mm blister
tape or solid strips of up to 12 pcs with a true
pitch of 1.27 mm.
The CR 10 YG has a clear epoxy lens.
Also available with diffused lens (CR 12 YG).
Features and Benefits
Solid state ceramic chip
Surface mounting device
High thermal conductivity
Superior light uniformity
End - to - end and
side - to - side stackable
down to a pitch of 1.3 mm
Solder pads conform with
Mil-Std 883 B
www. optoel ectronics. per kinelmer . com
DATASHEET
Maximum Ratings at 25° C
Power dissipation
Derating linear
Peak forward current
Continuous forward current
Junction temperature
Storage temperature
Operating temperature
Soldering temperature
P
tot
I
FSM
(10 µs)
I
F
T
j
T
st
T
op
T
sold
(10 s)
130 mW
2.4 mW / ° C
800 mA
50 mA
120° C
-25° C to 120° C
-25° C to 80° C
240° C
Adequate heat sink is required. Derating must be observed to maintain junction temperature
below maximum. Please note our recommended solder profile at www.optoelectronics.perkinelmer.com.
Optical and Electronic Characteristics at 25° C
I
F
= 20 mA, ambient temperature = 25° C
Luminous intensity
Peak emission wavelength
Spectral half bandwidth
Forward voltage
Reverse leakage
Reverse voltage
Light emission angle
Note: according IEC 60825-1 (EN60825):
LED Radiation
Do not view directly with optical instruments.
6
min
15
570
30
2.3
typ
max
unit
mcd
nm
nm
V
µA
V
Degree
2.6
100
5
180°

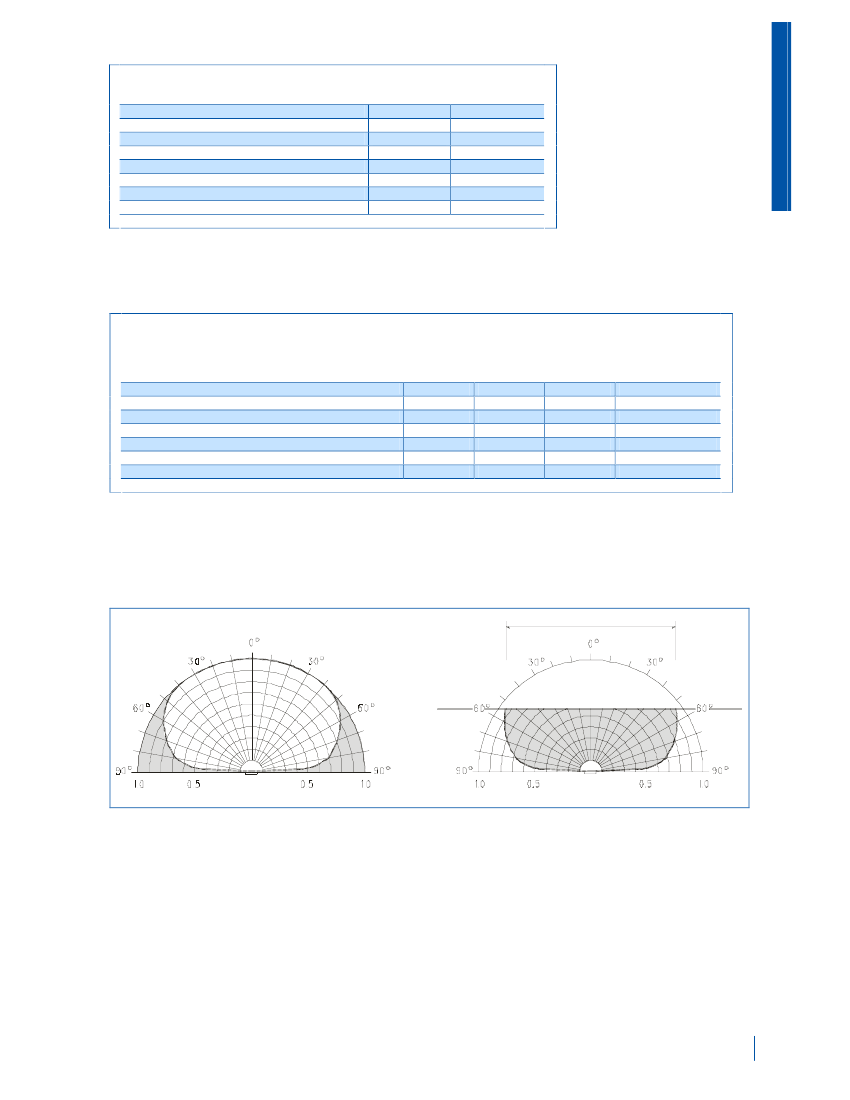

Figure 1
www. optoel ectronics. per kinelmer . com
CERLED
®
2
DATASHEET
Figure 2

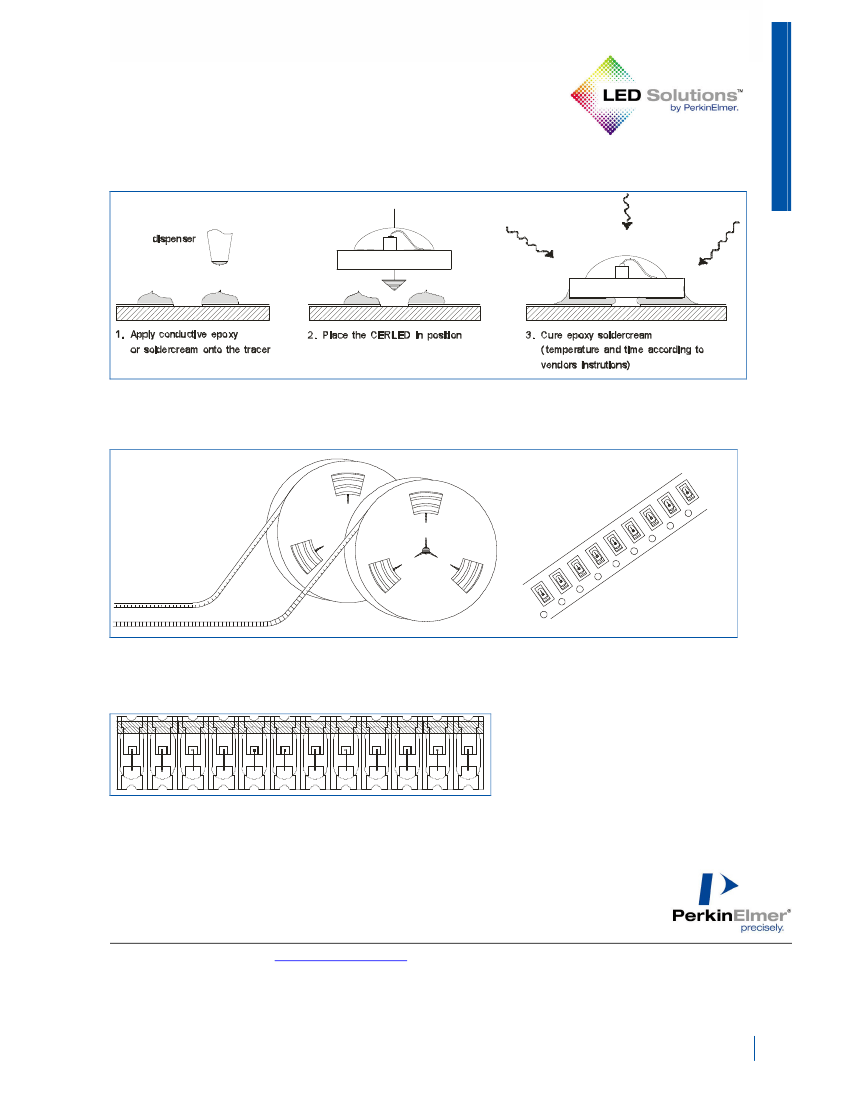

Suggested Mounting Method
Figure 3
Special Packaging Standard 8 mm Blister Tape
Figure 4
Arrays: Available in strips up to 12 CERLEDs with a max. pitch tolerance in spacing and
linearity of ± 0.01 mm between chip centers.
Code to order strips:
CR 10 yg – XX (no. of LEDs)
