30VF30F datasheet, PDF - EEWORLD Datasheet

30VF30F: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 300V V(RRM), Silicon, TO-252AA,; CategoryDiscrete semiconductor diode; File Size66KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

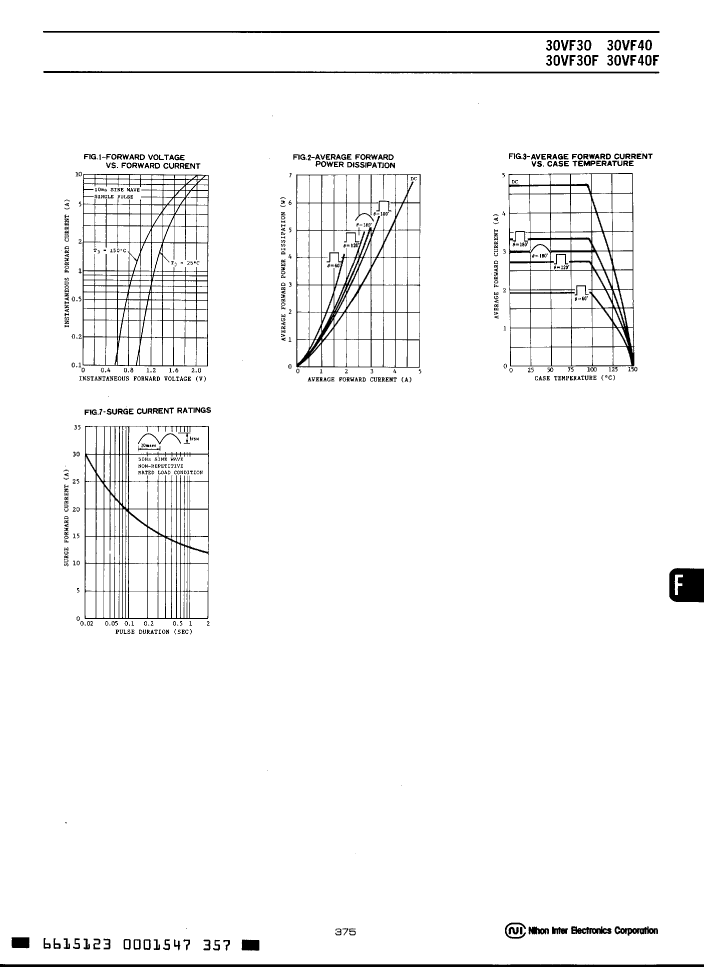

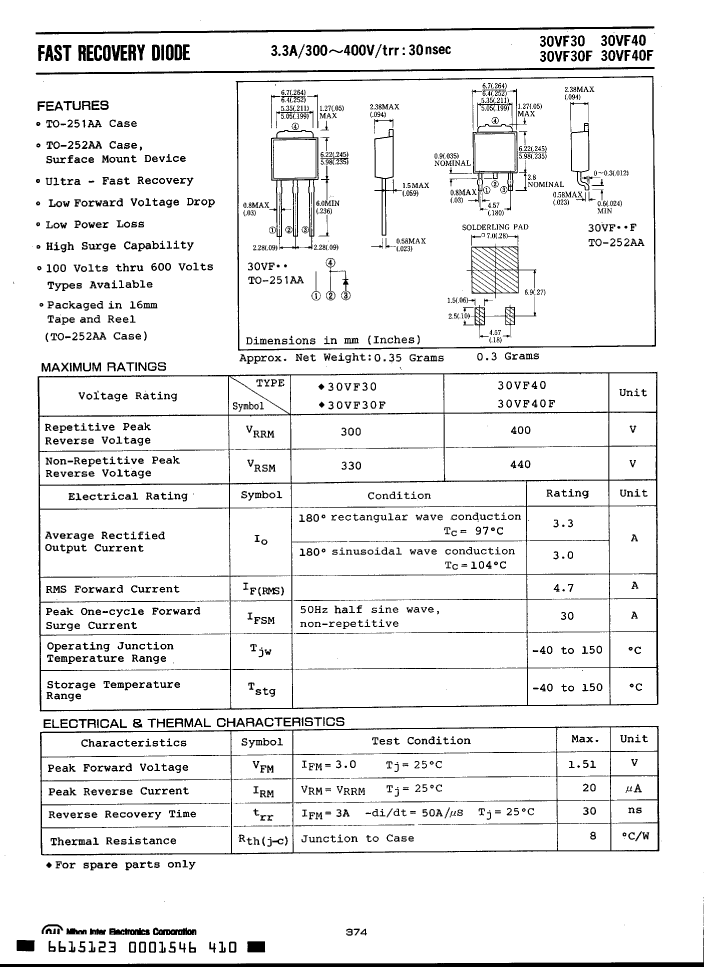

30VF30F Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 300V V(RRM), Silicon, TO-252AA,

Parameter Name	Attribute value
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.51 V
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	20 µA
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

	30VF30F	30VF30
Description	Rectifier Diode, 1 Phase, 1 Element, 3A, 300V V(RRM), Silicon, TO-252AA,	Rectifier Diode, 1 Phase, 1 Element, 3A, 300V V(RRM), Silicon, TO-251AA,
package instruction	R-PSSO-G2	R-PSIP-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.51 V	1.51 V
JEDEC-95 code	TO-252AA	TO-251AA
JESD-30 code	R-PSSO-G2	R-PSIP-T3
Maximum non-repetitive peak forward current	30 A	30 A
Number of components	1	1
Phase	1	1
Number of terminals	2	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	300 V
Maximum reverse current	20 µA	20 µA
Maximum reverse recovery time	0.03 µs	0.03 µs
surface mount	YES	NO
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Base Number Matches	1	1
