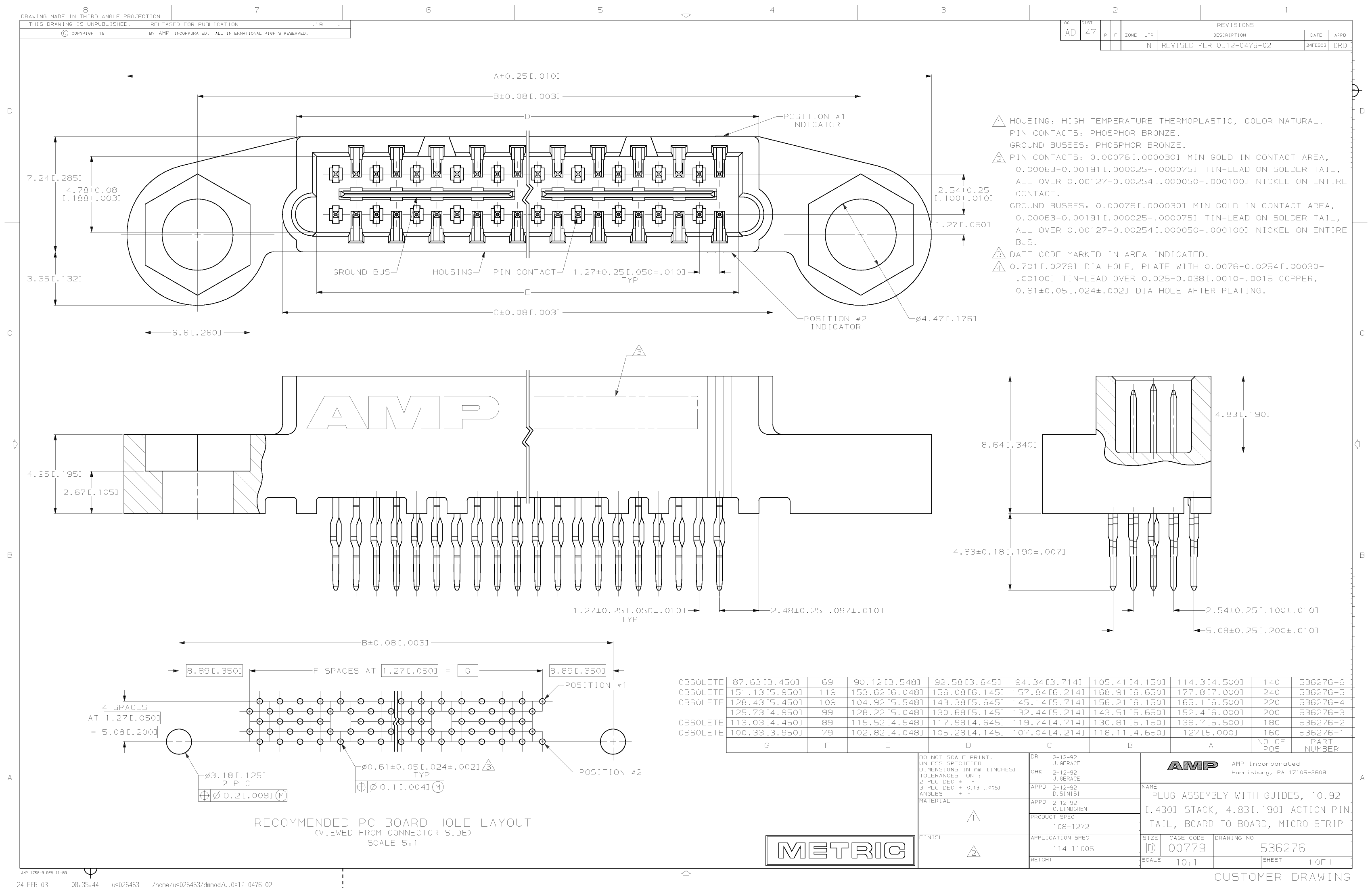

Preview

536276-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,220 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

536276-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,220 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL

536276-4 Parametric

Parameter Name	Attribute value
Objectid	300460652
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	HOLE .125-.137
body width	0.417 inch
subject depth	0.34 inch
body length	6.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	POLYETHYLENE
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
Terminal length	0.19 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	220

Preview

Download Datasheet

View All

536276-4 Related Products

	536276-4	536276-6	536276-2	536276-1	536276-3	536276-5
Description	HEADER CONNECTOR,PCB MNT,RECEPT,220 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,140 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,200 CONTACTS,PIN,0.05 PITCH,COMPLIANT FIT TERMINAL	240 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	3	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	220	140	180	160	200	240
Board mount options	HOLE .125-.137	HOLE .125-.137	HOLE .125-.137	HOLE .125 DIA.TYP	-	-
body width	0.417 inch	0.417 inch	0.417 inch	0.417 inch	-	-
subject depth	0.34 inch	0.34 inch	0.34 inch	0.34 inch	-	-
body length	6.5 inch	4.5 inch	5.5 inch	5 inch	-	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	-
Contact completed and terminated	GOLD	GOLD	GOLD	TIN OVER NICKEL	-	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT	-	-
insulator material	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	-	-
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	-	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-
Number of connectors	ONE	ONE	ONE	ONE	-	-
PCB row number	5	5	5	5	-	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	-
Plating thickness	30u inch	30u inch	30u inch	30u inch	-	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLAR PIN POSITION	-	-
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-
Terminal length	0.19 inch	0.19 inch	0.19 inch	0.19 inch	-	-
