GW10G50K0E: Descriptionwirewound resistors - chassis mount 10watt 50k 2%; CategoryPassive components; File Size279KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com; Environmental Compliance

Download Datasheet Compare View All

GW10G50K0E Overview

wirewound resistors - chassis mount 10watt 50k 2%

Preview

Download Datasheet

View All

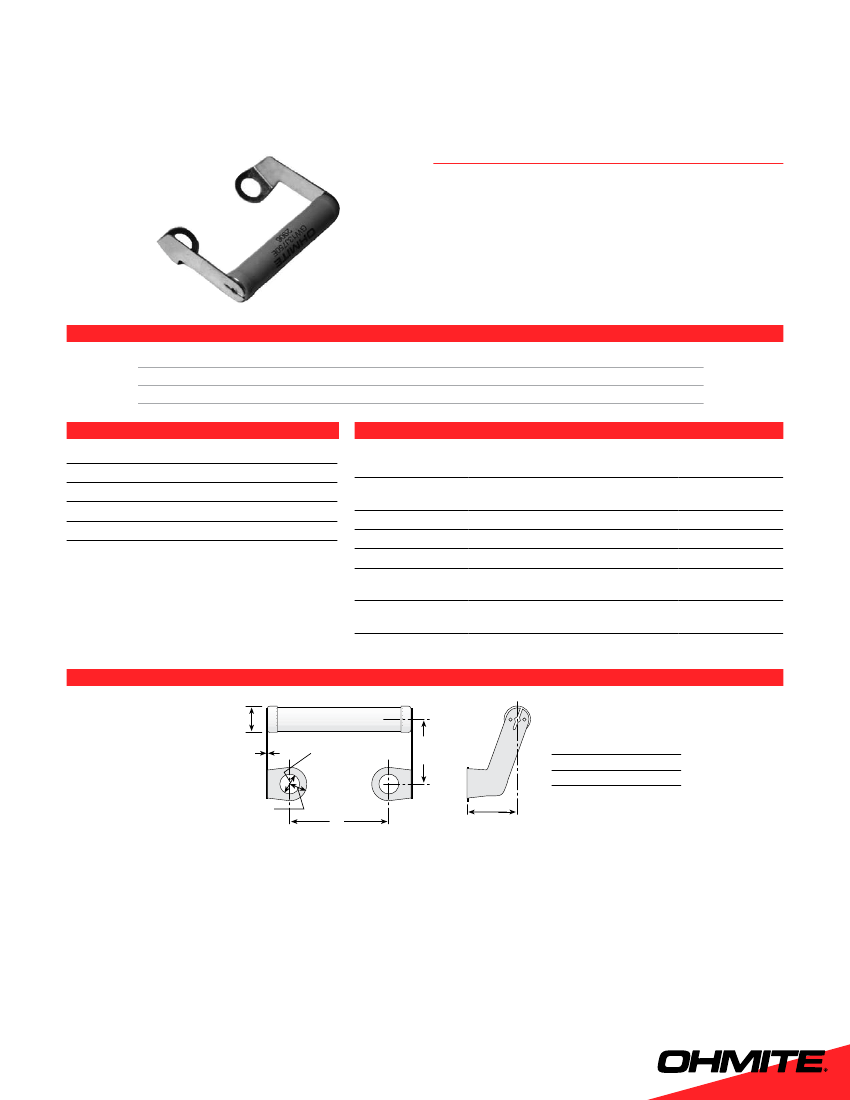

G Series

Capacitor Discharge & Symmetry

f e aT u r e S

• High Power Dissipation up to 13W @25°C

• Specially Designed to meet Repetitive Pulse

Loading

• Corrosion Resistant Terminals for long life

• Superior Vibration Resistance

• IEC 115-1 Reference Standard

S e r I e S S P e c I f I c aT I o n S

Series Wattage @25°C

GW10

10

GW13

13

Wattage @70°C

8.5

11

Limiting Voltage

685

940

Critical Value

47KΩ

68KΩ

Ohmic Range

1Ω-82K

1Ω-120K

characTerISTIcS

Temperature Range

-55°C to 200°C

Terminal Strength

>25N

Derating

25°C to 350°C, Linearly

TCR

±100 ppm/°C

Tolerance

1%, ±2%, ±5%, ±10%

P e r f o r m a n c e D aTa

Endurance at

Full Rated Power for 1000hrs, (1.5hrs

Rated Temperature

ON,0.5hrs OFF) at 25°C

Short Term

10 x Rated Power for 5 secs, IEC115-1,

Overload

Clause 4.1.3

Damp Heat

90-95% RH, 40°C, 56 Days,

Steady State

IEC 115-1, Clause 4.17.3

Climatic Sequence

As per IEC 115-1,Clause 4.23

Solderability

Not Applicable-Resistor is Designed for

Screw Mounting Only

Terminal Strength

25 N Pull Test for 10 Seconds, IEC

115-1, Clause 4.16

∆R < 0.5% + 0R05

∆R < 5% + 0R05

∆R < 2% + 0R05

∆R < 5% + 0R05

DImenSIonS

0.374 in.

±.039

9.5 mm

±1

0.0157 in.

±.0019

0.40 mm

±.05

ø 0.25 in.

±.008

6.35 mm

±.20

0.827 in.

±.039

21 mm

±1

Series

GW10

GW13

Length P

(in. ±.039 / mm±1)

0.866 / 22.0

1.252 / 31.8

0.21 in.

±.008

5.35 mm

±.20

P

0.590 in.

±.039

15 mm

±1

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com

63

GW10G50K0E Related Products

	GW10G50K0E	GW13G20K0E	GW13G25K0E	GW10G2K50E	GW13G40K0E
Description	wirewound resistors - chassis mount 10watt 50k 2%	wirewound resistors - chassis mount 13watt 20k 2%	wirewound resistors - chassis mount 13watt 25k 2%	wirewound resistors - chassis mount 10watt 2.5K 2%	wirewound resistors - chassis mount 13watt 40k 2%
Manufacture	-	Ohmite	Ohmite	Ohmite	-
Product Category	-	Wirewound Resistors - Chassis Mou	Wirewound Resistors - Chassis Mou	Wirewound Resistors - Chassis Mou	-
RoHS	-	Yes	Yes	Yes	-
Resistance	-	20 kOhms	25 kOhms	2.5 kOhms	-
Power Rating	-	13 W	13 W	10 W	-
Tolerance	-	2 %	2 %	2 %	-
Temperature Coefficie	-	100 PPM / C	100 PPM / C	100 PPM / C	-
Operating Temperature Range	-	- 55 C to + 200 C	- 55 C to + 200 C	- 55 C to + 200 C	-
Case Length	-	31.8 mm	31.8 mm	22 mm	-
Packaging	-	Bulk	Bulk	Bulk	-
Produc	-	Power Resistors Wirewound Vitreous Enamel	Power Resistors Wirewound Vitreous Enamel	Power Resistors Wirewound Vitreous Enamel	-
Voltage Rating	-	940 V	940 V	685 V	-
