Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5008

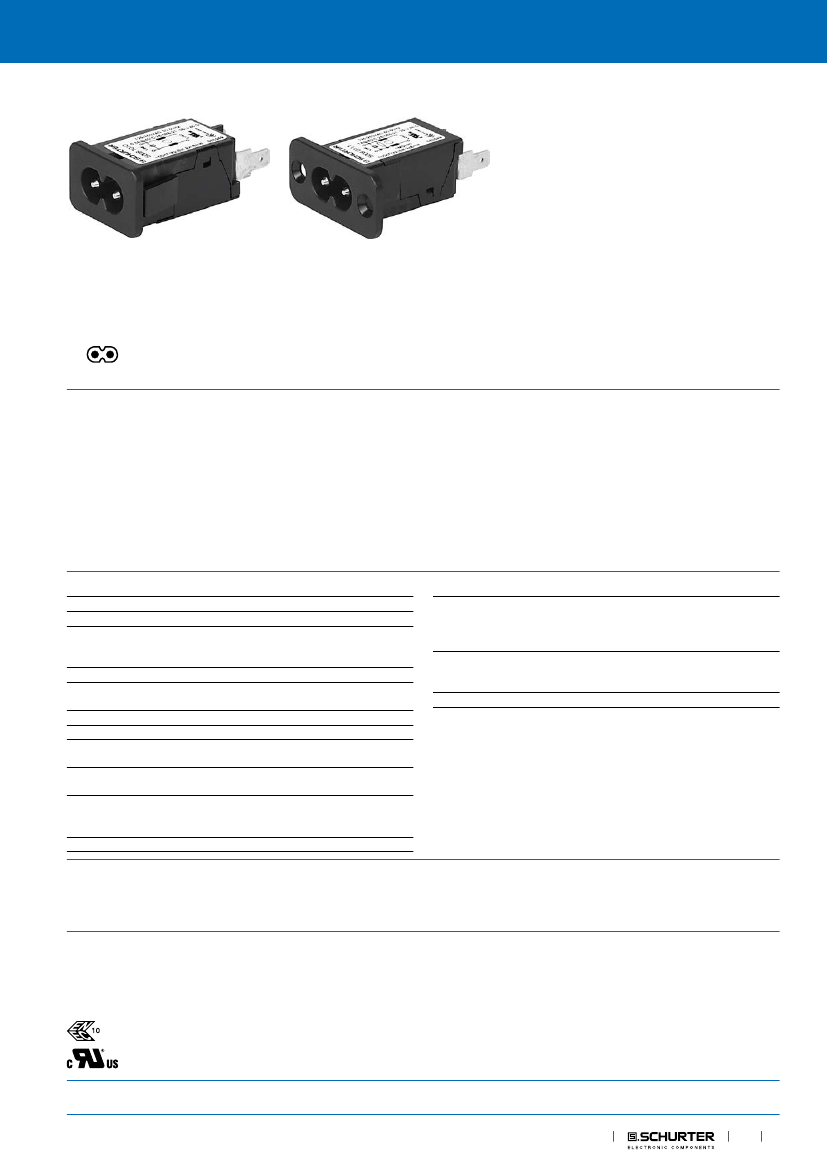

IEC Appliance Inlet C8 with Filter, Front Side Mounting
Snap-in mounting from front side
Screw-on mounting from front side
C8
See below:
70° C
Approvals and Compliances
Characteristics
Description
- Panel mount :
Screw-on or snap-in mounting from front side
- 2 Functions :
Appliance Inlet Protection class II , Line filter in standard and medical
version
- Solder terminals or quick connect terminals
- Compact high performance filter
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
References
Weblinks
- Standard version without X-capacitor
- Polarized C8 connector
Alternative: version without line filter
2576; 2578
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
0.5 - 2.5 A @ Ta 40 °C / 250 VAC; 50 Hz
0.5 - 6 A @ Ta 40 °C / 250 VAC; 60 Hz
> 1.7 kVDC between L-N
> 4.5 kVDC between L/N-PE
Test voltage (2 sec)
> 2.5 kV between L-N
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class II acc. to IEC 61140
solder pin or quick connect terminals
6.3 x 0.8 or 4.8 x 0.8 mm
Screw
Mounting screw torque max 0.5 Nm
Snap-in 1 mm to 2.5 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C8 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
2.5 A, Protection Class II
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 6'700'000 h acc. to MIL-HB-217 F
Line Filter
Impulse Withstand Voltage
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
MTBF
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5008
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40029278
UL File Number: E72928
Product standards
EMC Products
1
5008
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
Dimensions [mm]
Screw-on mounting from front side
18
34.5
2.2
16
28
±0.10
37
ø6.3
R4
45.7
20
ø3.4
16
+0.20
0
28
±0.15
ø3.5
2
EMC Products
20.2
max. R 0.5
+0.20
0
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5008
Snap-in mounting from front side
18
34.5
2.2
16
27.2
R3
45.7
16
+0.20
0
24
+0.20
0
max. R 2
Technical Data of Filter-Components
Rated Current
[A]
1
0.5
1
2.5
4
6
0.5
1
2.5
4
6
Filter-Type
Standard Version without Cx
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Inductances
L [mH]
2x8
2 x 18
2x8
2 x 1.2
2 x 0.8
2 x 0.3
2 x 18
2x8
2 x 1.2
2 x 0.8
2 x 0.3
Capacitance
CX [nF]
-
100
100
100
100
100
100
100
100
100
100
Capacitance
CY [nF]
-
-
-
-
-
-
-
-
-
-
-
R [MΩ]
-
-
-
-
-
-
1
1
1
1
1
Diagrams
Standard version
Medical version M5
L
1)
N
1) Line
2) Load
L1
Cx
L’
2)
L
1)
N
1) Line
2) Load
20
L1
R
Cx
L2
L’
2)
N’
L2
N’
EMC Products
3
5008
Derating Curves
100
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Admissible operating
current in % of In
80
60
40
20
0
0
20
40
60
85
100
Ambient air temperature Ta °C

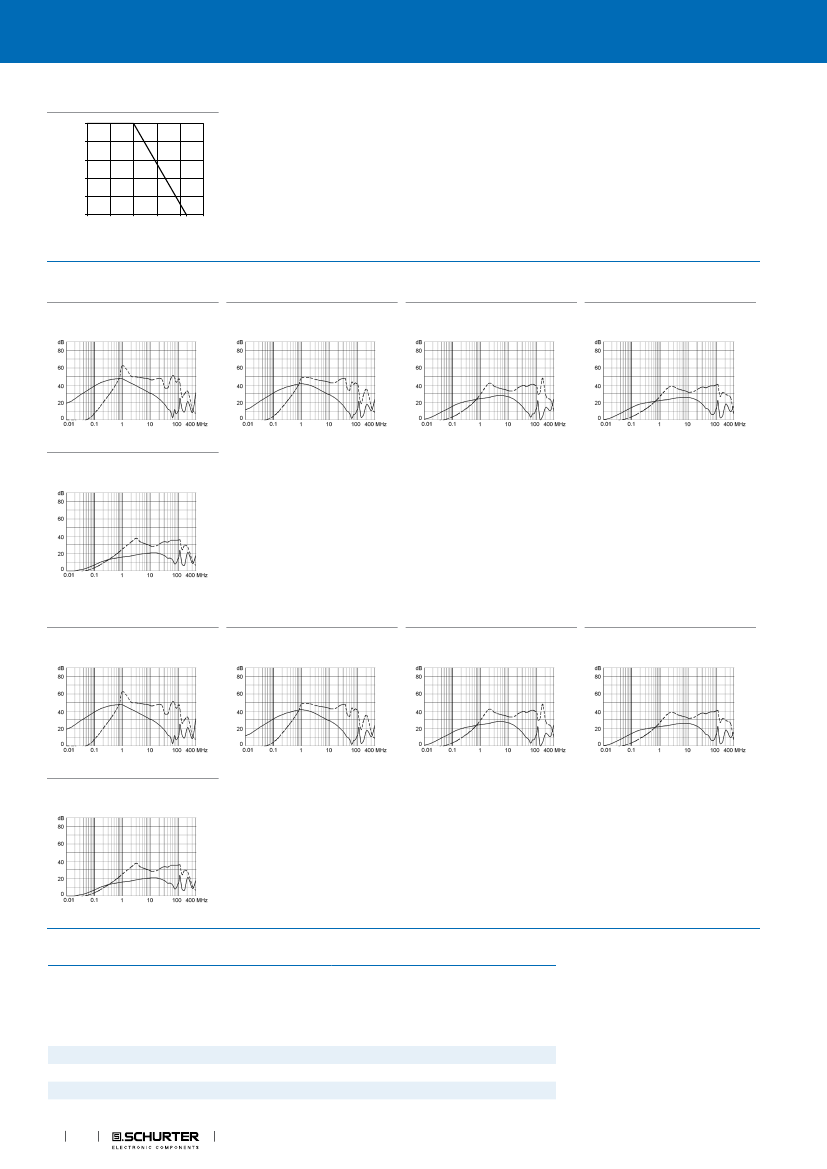

Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
0.5 A
1A
2.5 A
4A
6A
Medical version (M5)
0.5 A
1A
2.5 A
4A
6A
All Variants
Rated Cur-
rent [A]
Filter-Type
Mounting
Terminal
Order Number
1
0.5
0.5
1
Standard Version without Cx
Standard Version
Standard Version
Standard Version
Snap-in 1.5
Snap-in 1.0
Snap-in 1.5
Snap-in 1.5
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Solder terminal
5008.2211
5008.1010
5008.2010
5008.2021
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5008
Terminal
Order Number
Rated Cur-
rent [A]
Filter-Type
Mounting
1
1
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
4
6
6
6
0.5
1
1
1
2.5
2.5
4
4
6
6
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Snap-in 1.5
Snap-in 2.0
Screw
Screw
Screw
Snap-in 1.0
Snap-in 1.5
Snap-in 1.5
Snap-in 2.0
Snap-in 2.0
Snap-in 1.5
Screw
Snap-in 1.0
Snap-in 1.5
Snap-in 1.0
Screw
Snap-in 1.0
Snap-in 2.0
Snap-in 1.0
Snap-in 2.0
Snap-in 1.0
Snap-in 1.5
Snap-in 1.0
Snap-in 1.5
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Solder terminal
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Solder terminal
Quick connect terminal 4.8 x 0.8 mm
Solder terminal
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
Quick connect terminal 4.8 x 0.8 mm
5008.2001
5008.3011
5008.0022
5008.0002
5008.0012
5008.1012
5008.2022
5008.2012
5008.3022
5008.3002
5008.2014
5008.0006
5008.1016
5008.2016
5008.1110
5008.0111
5008.1111
5008.3111
5008.1112
5008.3102
5008.1114
5008.2114
5008.1116
5008.2116
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
20 Pcs
Mating Outlets/Connectors
Category / Description
Power Cord Overview complete
Cord Sets 2.5 A, IEC Connector, Black, 2.0 m, H03VVH2-F 2x0,75mm2, Connector IEC C7, 001500 mm, H03VVH2-
F2G0.75, black
Cord Sets 2.5 A, IEC Connector, Black, 4.0 m, H03VVH2-F 2x0,75mm2, Connector IEC C7, 001500 mm, H05VVH2-
F2G0.75, black
Power Cord further types to 5008
6013.0474
6013.0478
Power Supply Cord Overview complete
Cord Sets 2.5 A, North America, Black, 2.0 m, SVT 2x18AWG, Connector IEC C7, 002500 mm, NISPT-2, black
Cord Sets 2.5 A, North America, Black, 4.0 m, SVT 2x18AWG, Connector IEC C7, 002500 mm, NISPT-2, black
Power Supply Cord further types to 5008
6010.5274
6010.5278
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
28.08.2018
