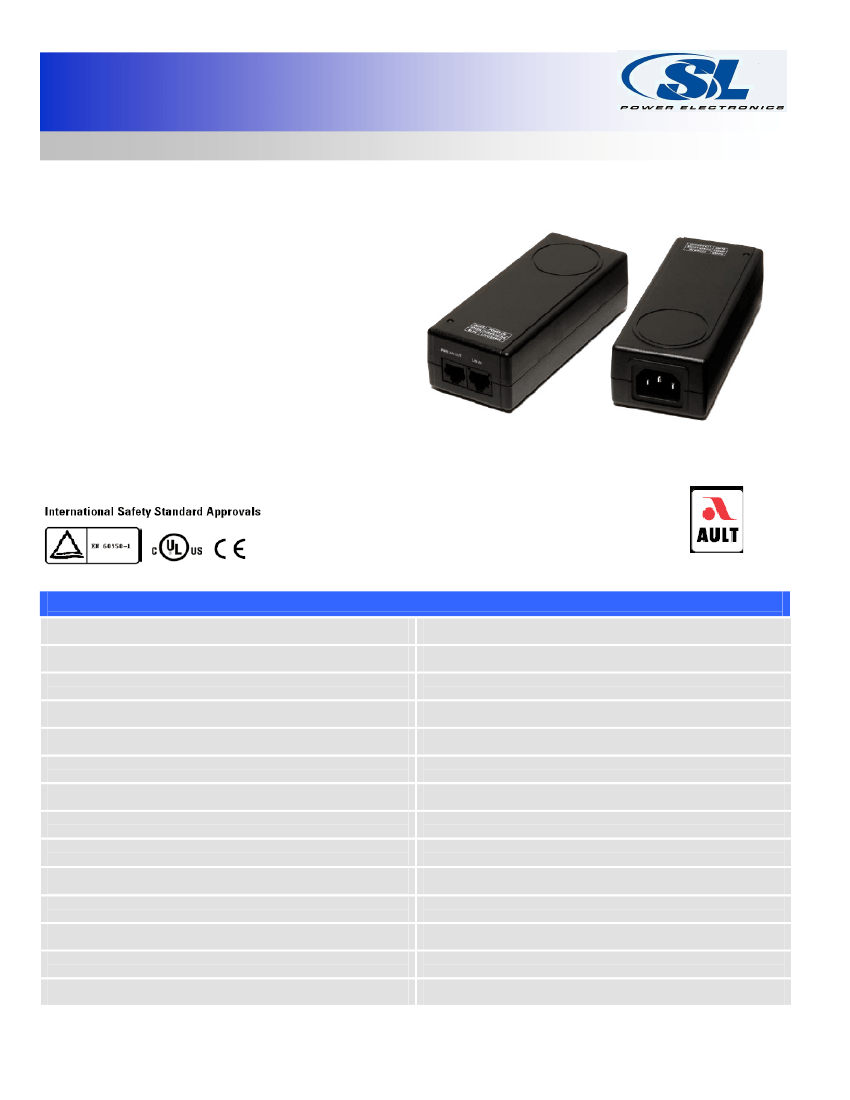

PENT1080
80 Watt Power over Ethernet Injectors
Compliant/Non-Compliant, 10/100 and Gigabit Injectors
•
10/100 and 10/100/1000 (MbPS) Data Rate models
•
Self-Contained Injector
•
100-240VAC Universal Input
•
Desktop Style/Non-vented case
•
IEEE802.3af Detection and Disconnection Compliant,
2 Year Warranty
and Non-Compliant models
•
Power ON LED
•
Overload Shutdown and Short Circuit Protection
•
Regulated Output with Low Ripple
Specifications
AC Input
100-240VAC, -10%,+6%, 47-63 Hz single phase.
Input Current
115VAC: 1.4A, 230VAC: 0.7A.
Inrush Current
Inrush limiting provided.
Input Fuses
Internal Primary Current Fuse is provided.
Earth Leakage Current
Class II: <250µA, Class I: <750µA.
Efficiency
80% typical.
Output Power
80W continuous.
Ripple and Noise
1% pk-pk max., 20MHz BW, differential mode.
Output Voltage
See chart.
Line & Load Voltage Regulation
Excluding Cord: +/- 1%.
Minimum Load
Not required.
Transient Response
500µs max., 50% load step, typical.
Case Dimensions:
Desktop Style: 8.34” x 2.24” x 1.48”.
Output Connections:
Dual RJ-45 jacks built-in.
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
MTBF
>100,000 hours (calculated)
Hold-up Time
16.7 ms min. @ 115VAC, 20mS min. @ 230VAC
Overvoltage Protection
Built-in, latch off
Overload Protection
Foldback Mode
Short Circuit Protection
Hiccup Mode
Topology
Flyback Switching Type
Safety Standards
EN/IEC/UL 60950-1, CSA22.2, No. 950, 2
nd
Edition
Isolation
Input-Output: 3000VAC
Operating Temperature
0° to 40°C, no derating
Storage Temperature
-20 to +85°C.
Relative Humidity
5% to 95%, non-condensing
Altitude
0 to 10,000 ft.
Case Material:
Black 94V-0 rated Polycarbonate
Power ON LED:
Provided on all models
______________________________________________________________________________________________________________________________
1 of 2
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
PENT1080
80 Watt Power over Ethernet Injectors
Compliant/Non-Compliant, 10/100 and Gigabit Injectors
Model Number
PENT1080
A
5600
F
01
2
Year Warranty
Max Watts
80.0 W
Output Volts
56 V
Output Current (max)
1.42 A
Ripple (Vp-p max)
560mV
EMC Specifications
Emissions
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Harmonic
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
EN55022 Class B, FCC Part 15, Class B.
EN61000-4-2, CD Level 2, AD Level 3, Criteria B
EN61000-4-3, Level 2, Criteria A
EN61000-4-4, Level 2, Criteria A
EN61000-4-5, Level 3, Criteria B
EN61000-3-2, Class A

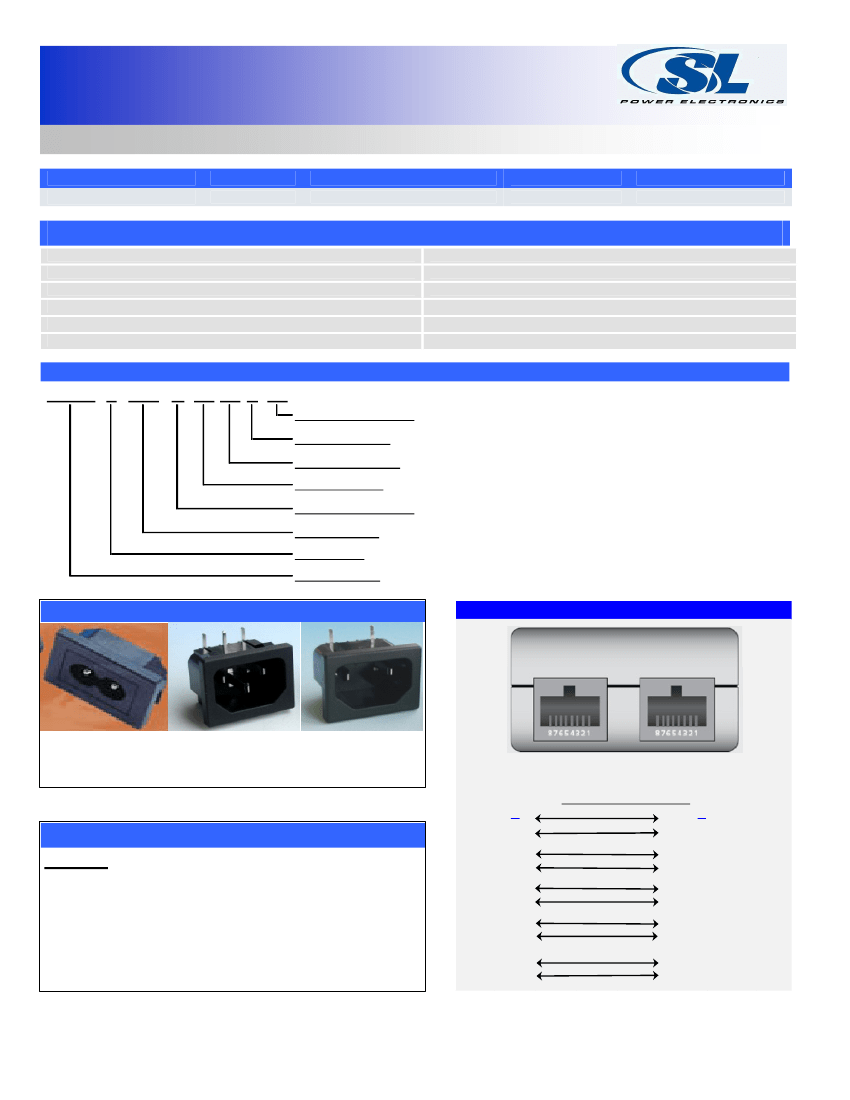

Model Number Key
PENT 1 080 A 56 00 F 01
Model Configuration:
Input Connector:
Output Connector:
Output Voltage:
Model Configuration:
Output Power:
# of Outputs
Product Family:
"P" = PoE, "E" = External, "NT" = New Technology
01 = Standard. 02 and higher indicates a modified model.
"F" = IEC320 C14 grounded, "Q" = IEC320 C14 ungrounded,
"N" = IEC320 C8. (see chart below)
"00" = Dual RJ45 jacks
"56" = 56Vdc
A = Non-Compliant, Gigabit, B = Compliant Gigabit,
C = Non-Compliant 10/100baseT, D = Compliant 10/100baseT
"080" = 80 Watts
Input Receptacle Options
Output/Data Connections
IEC320 - C8
"Shaver"
IEC320 - C14
Grounded
IEC320 - C14
Ungrounded
(N)
(F)
(Q)
J1
J2
(Power & Data Out)
J1
(Data In)
PENT1080 Pinout Connections:
"Personalized" PoE
Options
(contact factory for cost/availability)
:
Custom label artwork
Custom agency approvals available
Surge protection (input & output)
Mounting bracket
Other modifications
Data
(Gigabit only)
Data
Data
Data
(Gigabit only)
J2
Pins 4/5: Data
(Gigabit Only)
+ Pwr)
Pins 1/2 (Data + Pwr)
Pins 3/6 (Data + RTN)
Pins 7/8: Data
(Gigabit Only)
+ RTN)
Note:
= Transformer
Data Sheet © 2011 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 8-24-2011
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
______________________________________________________________________________________________________________________________
2 of 2
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
