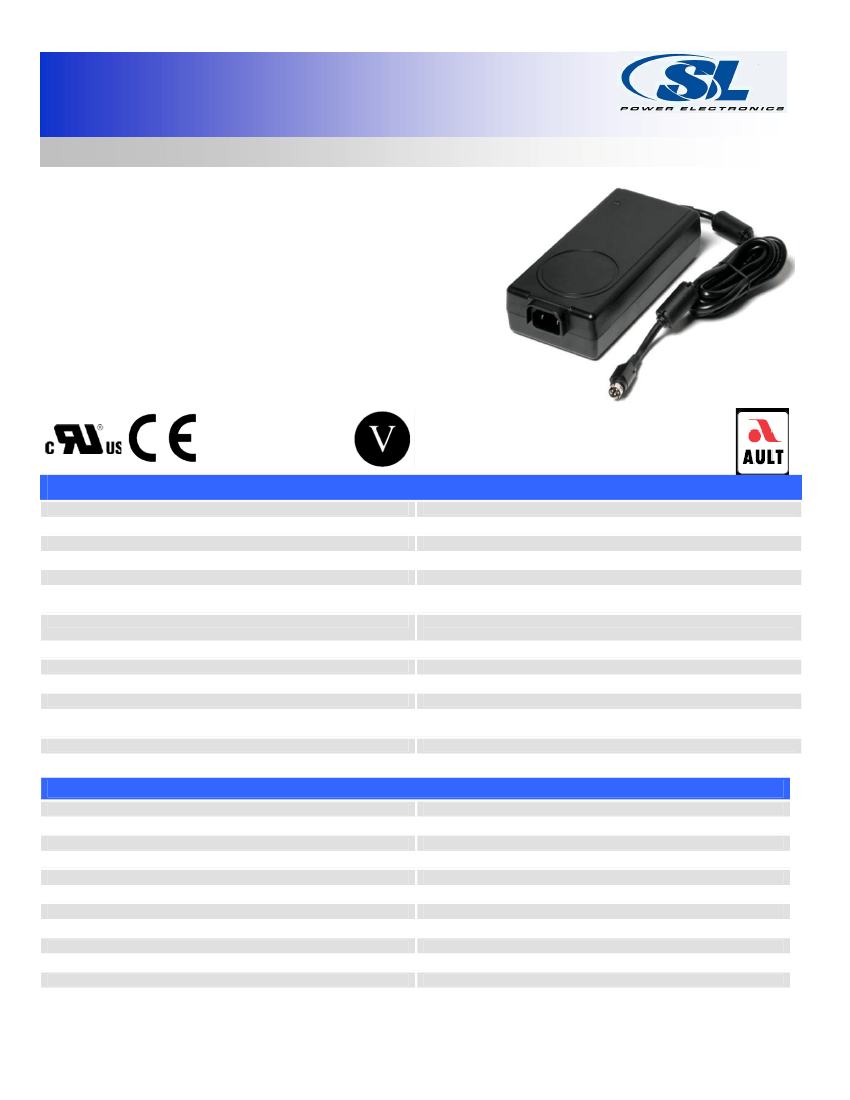

MENB1100
Universal Input 100 Watt Series
Medical Switch-Mode Power Supply
•
100-240VAC Universal Input
•
Meets EISA2007, CEC Efficiency Level V,
3
Year Warranty
EU (EC) No 278/2009 Phase II
•
Desktop Style
•
12V to 24V Single Output Models, up to 100W
•
Modified and Custom Designs Available
•
Impact-Resistant Polycarbonate Enclosure
•
No Load Power Consumption <0.5W
•
Meets UL/EN/IEC60601-1, 3
rd
Edition
•
2xMOPP Input-Output Isolation, 1xMOPP Input-GND
RoHS
Specifications
AC Input
Input Current
Inrush Current
Input Fuse
Efficiency
Output Voltage
Output Power
Ripple and Noise
Line/Load Regulation
Transient Response
Minimum Load
Case Material
Case Dimensions
All Specifications are typical at nominal input, full load at 25
C unless otherwise stated.
100-240Vac, +/-10%, 47-63 Hz, 1
100 Vac: 2.2 A
60A peak @ 264Vac, cold start
3.15A, 250V Internal Primary Current Fuse provided
Meets International Efficiency Level V
See chart
See chart
1% pk-pk max., 20MHz BW
Excluding Cord: Line: +/- 1%, Load: +/-5%
500μs max., 50% load step, typical
Not required
Black 94V0 Polycarbonate
150mm x 87mm x 47mm, see mechanical drawing
MTBF
Hold-up Time
Overload Protection
Short Circuit Protection
Topology
Safety and EMC Approvals
Dielectric Withstand
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Output Connections
Weight
100,000 hours calculated
18 ms min. @ 115Vac, 60 ms min. @ 230 Vac
Hiccup Mode
Hiccup Mode
Switching – Fixed Frequency Flyback
EN/IEC/CSA/UL60601-1
EMC: See chart
Input-Output: 2 MOPP
Input-GND: 1 MOPP, Output-GND: 500Vdc
0 to 40C, no derating
-30 to +85C
5% to 95%, non-condensing
0 to 10,000 ft
Cable: 18AWG, 1,500mm, 4 conductor
Connector: Ault #3, 2.5mm or Ault #51, 6-pin Molex
700g
EMI/EMC Compliance
Conducted Emissions
Radiated Emissions
Voltage Fluctuations
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
Line Frequency Harmonics
FCC Part 15, Class B, EN55011 Class B, EN55024
FCC Part 15, Class B, EN55011 Class B, EN55024
EN61000-3-3, Line Flicker
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge
EN61000-4-3, 3V/m.
EN61000-4-4, 2kV/5kHz.
EN61000-4-5, 1kV differential, 2kV common-mode
EN61000-4-6, 3Vrms
EN61000-4-8, 3A/m
EN61000-4-11 crit. A, 100Vac 60Hz, 40%/5 cycles with 70% full load.
EN61000-3-2, Class A
______________________________________________________________________________________________________________________________
1 of 2
SL Power Electronics Corp
6050 King Drive Ventura, CA 93003
Phone 805.486.4565
Fax 858.712.2040
Email: info@slpower.com
www.slpower.com
MENB1100
Universal Input 100 Watt Series
Medical Switch-Mode Power Supply
Model Number
MENB1100A1251F01
MENB1100A1551F01
MENB1100A1803F01
MENB1100A1903F01
MENB1100A2403F01
3
Year Warranty
Output Current (max)
7.5 A
6.4 A
5.6 A
5.2 A
4.2 A
Volts (V)
12 V
15 V
18 V
19 V
24 V
Max Watts
90 W
96 W
101 W
99 W
101 W
Ripple (Vp-p max)
120mV
150mV
180mV
190mV
240mV
Model Number Key
MENB 1 100 A VV 51 F 01
Model
Input Connector:
Output Connector:
Output Voltage:
Model
Output Pow er:
# of Outputs
Product Fam ily:
"01" = Standard. "02" and higher indicates a m odified m odel.
"F" = IEC320 C14 grounded, Other options available, see below
"51" = Molex 39-01-2060 or equivalent. Other options available, contact factory.
"05" = 5Vdc, "12" = 12Vdc, "24" = 24Vdc, etc.
"A" = Original Configuration
"100" = 100 Watts
"1" = Single Output
"M" = Medical, "E" = External, "NB" = Model Series Designator
Input Receptacle
Output Connector
Output Connector (12V & 15V models)
IEC320 C14 - Class I
Grounded (F)
“#3” Connector is 2.5mm barrel type, center (+)
“#51” Connector is Molex 39-01-2060 or equivalent
.
“51" Connector Pinout: Pins 1, 4: (+), Pins 3, 6: (-). Mate = Molex 39-01-2061 or equiv.

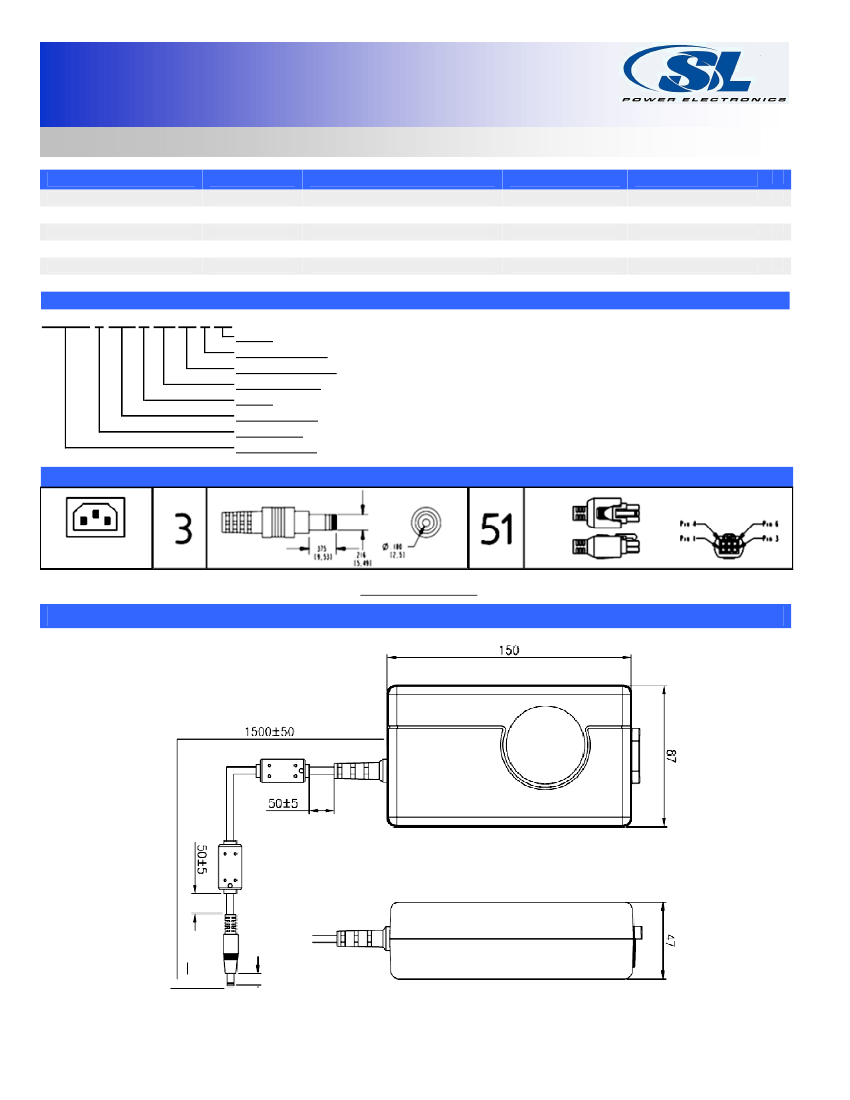

Outline Drawing
Dimensions are in mm. “#3” Connector shown.
Data Sheet © 2011 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 4-29-2014
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
______________________________________________________________________________________________________________________________
2 of 2
SL Power Electronics Corp
6050 King Drive Ventura, CA 93003
Phone 805.486.4565
Fax 858.712.2040
Email: info@slpower.com
www.slpower.com
