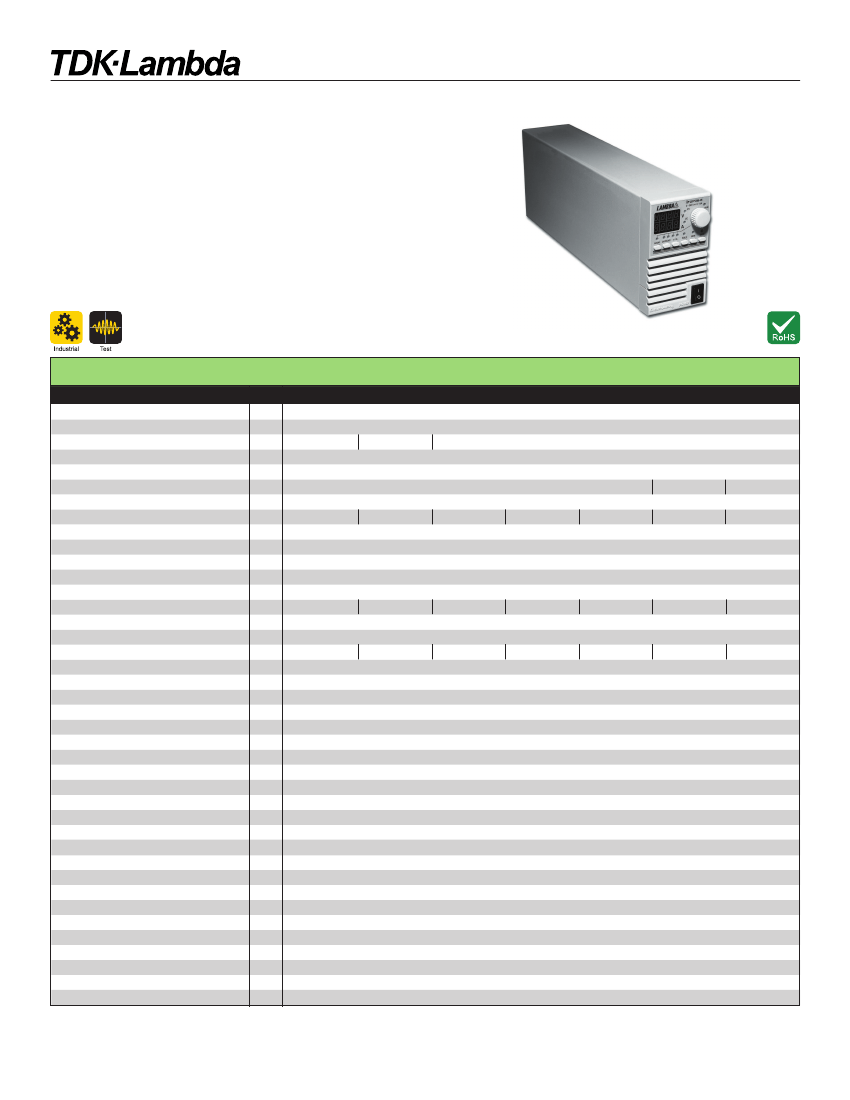

ZUP Series
Zero up programmable power supplies
Features
u
Constant Voltage / Constant Current
u
Last Setting Memory
u
Digital Meters
u
Built-in RS232 & RS485 Interface w/ GPIB optional
u
Bench or Rack Mount
u
Embedded Microprocessor Controller
u
Voltage up to 120V, Current up to 132A
Key Market Segments & Applications
Specifications
Model
Load Regulation
Line Regulation
Recovery Time (1)
Temperature Coefficient
Temperature Drift(2)
Up programming response time
Down prog. resp. time (CV)
Down prog. resp. time (CV)
Load Regulation
Line Regulation
Temperature Coefficient
Temperature Drift(2)
Prog Voltage resolution
Prog Voltage accuracy
Prog Current resolution
Prog Current accuracy
Overvoltage Shutdown
Thermal Protection
Display - Voltage
Display - Current
Display - Status
Remote On/Off
Output Good
Voltage & Current Programming
Remote Sense
Communication Interface
Series & Parallel Operation
AC Input Voltage range
Inrush Current (100/200VAC)(3)
Hold Up Time (Typ) at 100VAC
Power Factor Correction
Temperature Range
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration & Shock (non-op.)
Safety Agency Approvals
Conducted & Radiated EMI
Warranty
-
-
ms
-
-
ms
ms
ms
-
-
-
-
-
mV
-
-
V
-
-
-
-
-
-
-
-
-
-
VAC
A
ms
-
-
-
-
-
-
-
-
-
yrs
ZUP20
ZUP36
ZUP60
ZUP80
ZUP120
2mV + 0.005% over 0 - 100% load change
1mV + 0.005% over 85 - 132 or 170 - 265VAC line change
1ms
0.5ms
0.2ms
30ppm/°C following 30 minute warm up
0.01% + 2mV change in output
50 - 60ms
80ms
120ms
50ms (70ms ZUP60-14)
250ms
350ms
400ms
500ms
750ms
600ms
800ms
0.01% + 5mA on 200W and 400W models, 0.07% + 10mA on 800W models
0.01% + 2mA on 200W and 400W models, 0.01% + 5mA on 800W models
100ppm/°C from rated current after 30 minute warm up time
0.02% + 5mA, 200W and 400W models, 0.05% + 10mA 800W models
Better than 0.028% of rated voltage
.02%+5mV .02%+8mV .02%+12mV .02%+20mV .02%+35mV .02%+50mV .02%+70mV
Better than 0.03% of rated voltage
0.4% + 40mA
0 - 7.5
0 - 13
0 - 24
0 - 40
0 - 66
0 - 88
0 - 132
Over temperature protected
3 digits (6, 20, 36, 60, 80V models), 3.5 digits (10, 120V models). Accuracy 0.2% ± 2 digits
3 digits, (3.5 digits 132A model). Accuracy 0.5% ± 3 digits
CV / CC, Alarm, Foldback, Local/Remote, On/Off
TTL signal or dry contact relay
Open Collector
By either Voltage (0-4V) or Resistance (0-4k)
Up to 0.5V compensation per output cable
RS232 & RS485 standard, IEEE488 optional
Series: Up to two units; Parallel: Up to five units in master-slave configuration
85-265VAC (47-63Hz)
15/30A, 200W models, 15A, 400W models, 30A, 800W models
20
Complies with EN61000-3 Class A (0.99 typ)
Operating: 0 - 50°C; Storage: -20 to +70°C
Operating: 30 - 90% RH, Storage 10 - 95%RH
Internal fan
Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.
>100M at 25°C & 70%RH
Vibration:10-55Hz(1 min.) 2G constant X, Y, Z, when correctly mounted; Shock: <20G
UL3111-1, EN61010-1, CE Mark
EN55022-B conducted, A radiated, FCC Class B conducted, A radiated, VCCI-2 conducted, -1 radiated
Three Years
(2) Over 8 hour period following 30 minute warm up time
ZUP6
ZUP10
Notes: (1) Recovery to within +/-50mV after load change of 50-100%
(3) 25°C ambient (cold start)
1-800-526-2324 • www.us.tdk-lambda.com/lp/
152
Disclaimer: us.tdk-lambda.com/lp/legal.htm
ZUP Series
Model Selector
Model
ZUP6-33/U
ZUP6-66/U
ZUP6-132/U
ZUP10-20/U
ZUP10-40/U
ZUP10-80/U
ZUP20-10/U
ZUP20-20/U
ZUP20-40/U
ZUP36-6/U
ZUP36-12/U
ZUP36-24/U
ZUP60-3.5/U
ZUP60-7/U
ZUP60-14/U
ZUP80-2.5/U
ZUP80-5/U
ZUP120-1.8/U
ZUP120-3.6/U
Voltage
Adjust
Range
0-6
0-6
0-6
0-10
0-10
0-10
0-20
0-20
0-20
0-36
0-36
0-36
0-60
0-60
0-60
0-80
0-80
0-120
0-120
Current
Adjust
Range
0-33
0-66
0-132
0-20
0-40
0-80
0-10
0-20
0-40
0-6
0-12
0-24
0-3.5
0-7
0-14
0-2.5
0-5
0-1.8
0-3.6
Max
Power
198
396
792
200
400
800
200
400
800
216
432
864
210
420
840
200
400
216
432
Ripple
5Hz-1MHz
mV
5
5
8
5
5
8
5
5
5
5
5
5
5
5
5
30
30
30
30
Noise
20MHz BW
mV
50
50
100
50
50
90
50
50
80
50
50
70
50
50
60
80
80
80
80
Ripple
5Hz-1MHz
mA
50
100
200
25
50
100
15
30
60
7.5
15
30
5
10
20
5
10
5
10
Efficiency
%
(100/200VAC)
69 / 72
74 / 77
74 / 77
73 / 77
79 / 82
77 / 81
74 / 78
79 / 83
79 / 82
76 / 80
80 / 84
80 / 84
75 / 79
80 / 84
80 / 84
77 / 82
83 / 87
77 / 82
83 / 87
Weight
kg
2.9
3.2
5.8
2.9
3.2
5.8
2.9
3.2
5.8
2.9
3.2
5.8
2.9
3.2
5.8
2.9
3.2
2.9
3.2

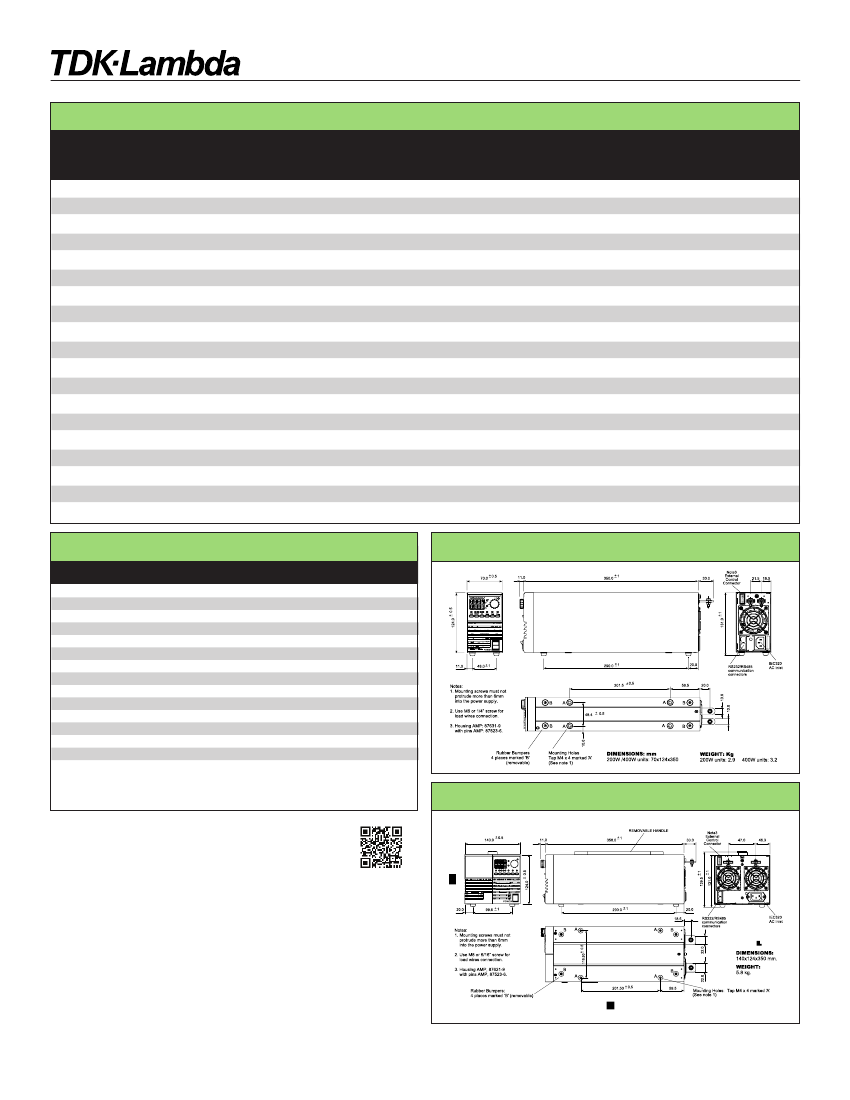

Options & Accessories
Option
Model Suffix
5
Front panel terminals (20A max) /L
4
Front panel terminals (20A max)
6
/L
4
IEC320 cable USA plug
/U
Serial link cable RJ-45
/W
GPIB Controller
Dual Unit Assembly
(accepts 200W or 400W models)
19” 3U rack (accepts up to 6 200/400W models)
Blanking panels for NL100 (19 in. rack)
RS232 Communications Cable DB-9
RS232 Communications Cable DB-25
RS485 Communications Cable DB-9
RS485 Communications Cable DB-25
User Manual
* (See website for more details)
4
Not available with ZUP80 or ZUP120 models.
5
200W and 400W models
6
800W models
Part Number
ZUP200/400/L
4
ZUP800/L
4
ZUP/U
ZUP/W
GP485A*
NL200*
NL100*
NL101*
ZUP/NC401
ZUP/NC403
ZUP/NC402
ZUP/NC404
NL102
Outline Drawing 200/400W
Outline Drawing 800W
For Additional Information, please visit
us.tdk-lambda.com/lp/products/zup.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
153
Revision A6: May 2012
