HE1L5AT120S-T5-C datasheet, PDF

Datasheet> All Categories > logic> logic> HE1L5AT120S-T5-C

HE1L5AT120S-T5-C: DescriptionActive Delay Line, 1-Func, PBGA8, ROHS COMPLIANT, BGA-8; Categorylogic logic; File Size360KB，5 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric View All

HE1L5AT120S-T5-C Overview

Active Delay Line, 1-Func, PBGA8, ROHS COMPLIANT, BGA-8

HE1L5AT120S-T5-C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Thin Film Technology Corp (TFT)
Parts packaging code	BGA
package instruction	TBGA,
Contacts	8
Reach Compliance Code	compliant
JESD-30 code	R-PBGA-B8
JESD-609 code	e1

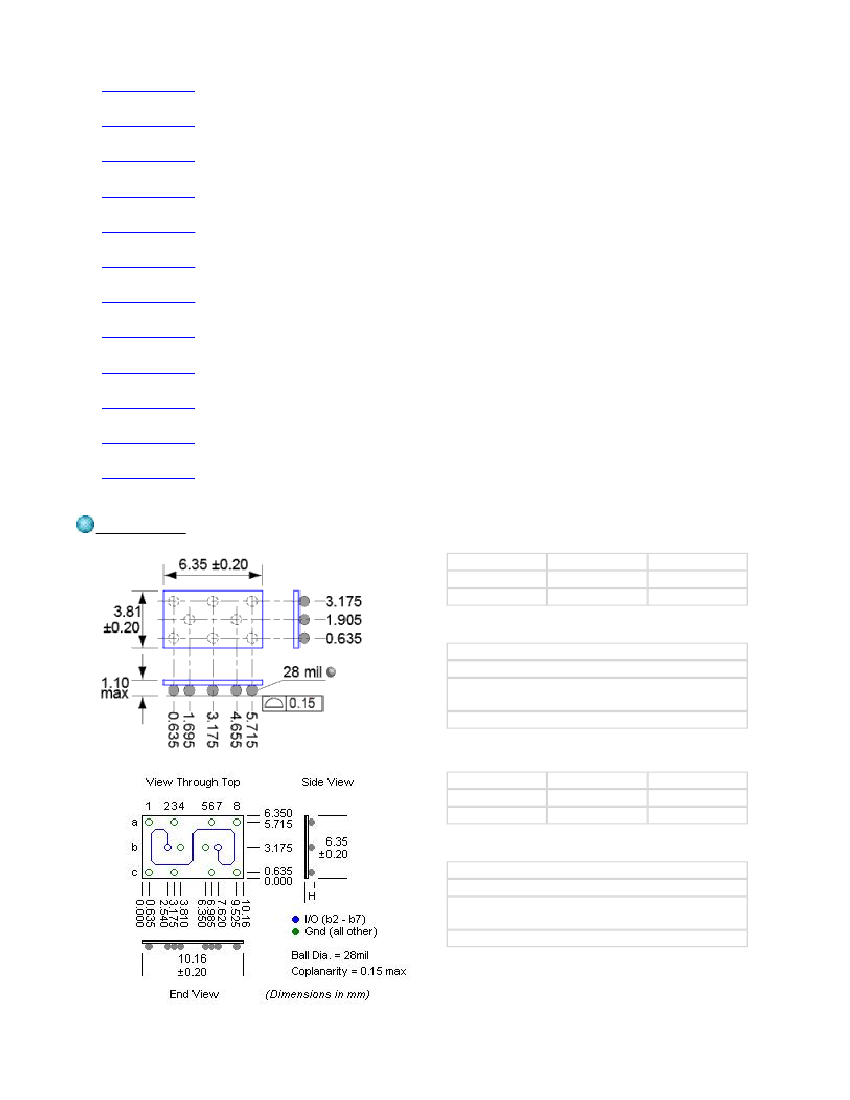

length	6.35 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance nominal value (Z0)	50 Ω
Package body material	PLASTIC/EPOXY
encapsulated code	TBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	1.1 mm
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN SILVER COPPER
Terminal form	BALL
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	1.2 ns
width	3.81 mm
Base Number Matches	1

Preview

Download Datasheet

View All

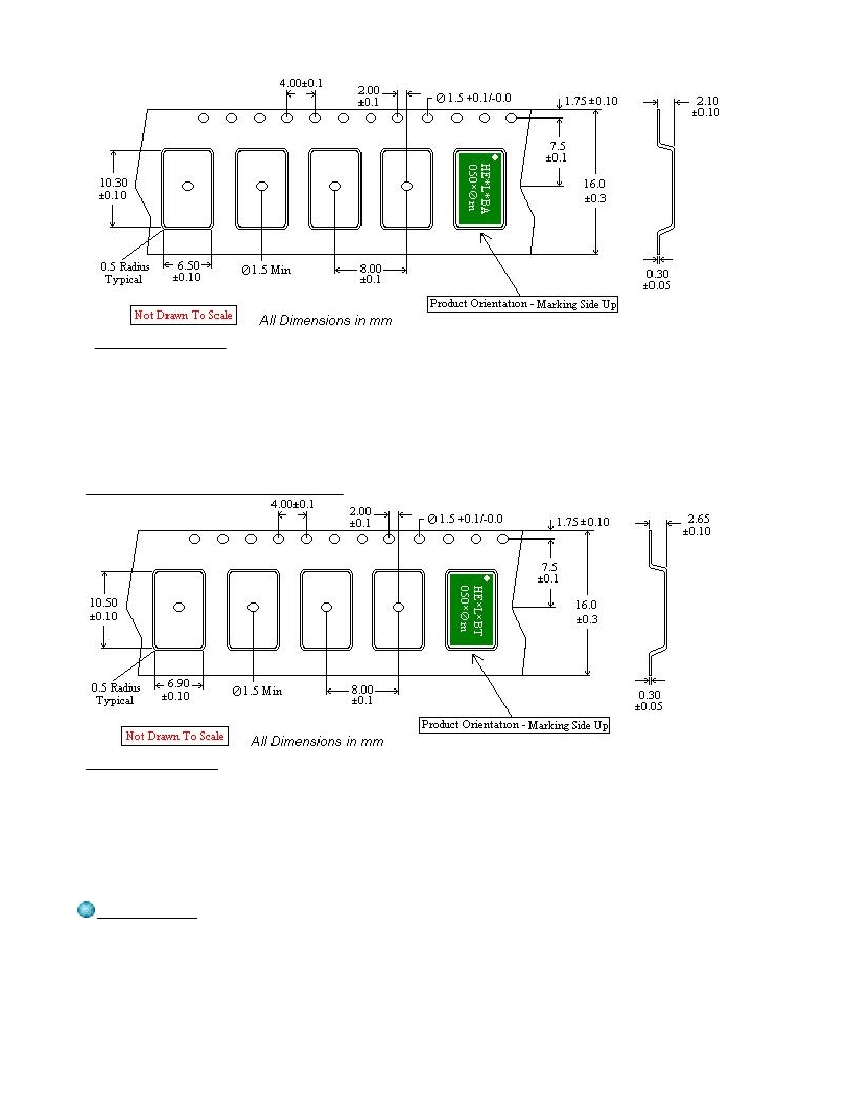

HE1LA*****S Series (Published)

Page 1 of 5

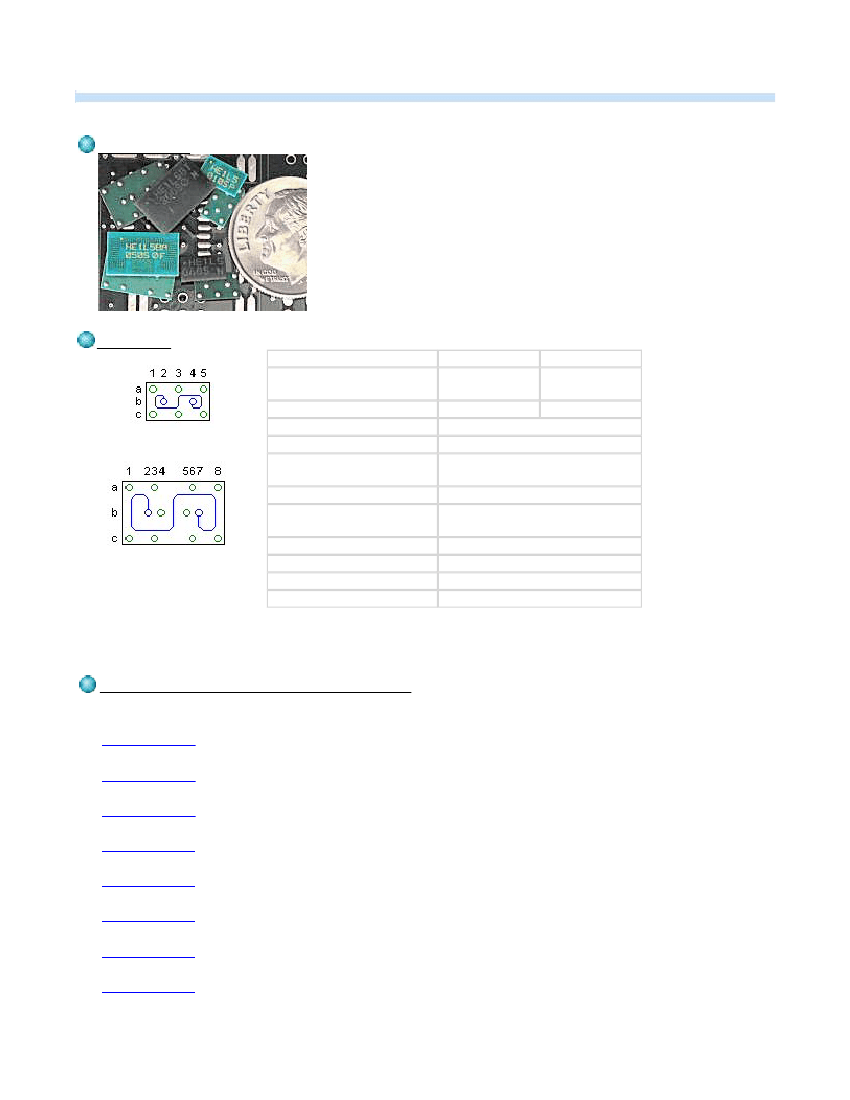

BGA (HE) Delay Lines (Patent Pending)

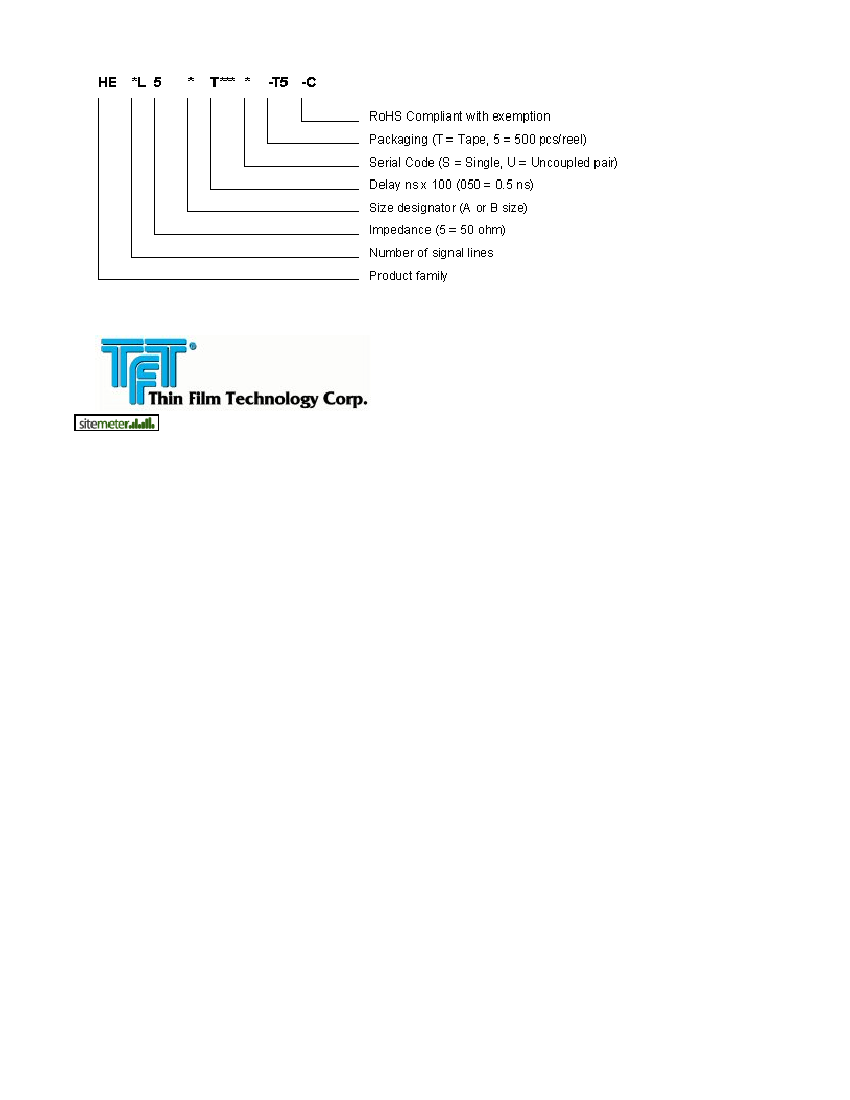

HE1L5(A,B)(A,T)***S

Series

Description

High-efficiency delay lines for clock and data deskew in single-ended circuit

designs requiring precise timing control in a small, low profile BGA package.

The single-ended delay lines are constructed as microstrip transmission

lines on ceramic. These designs feature the ground plane on the solder ball

side.

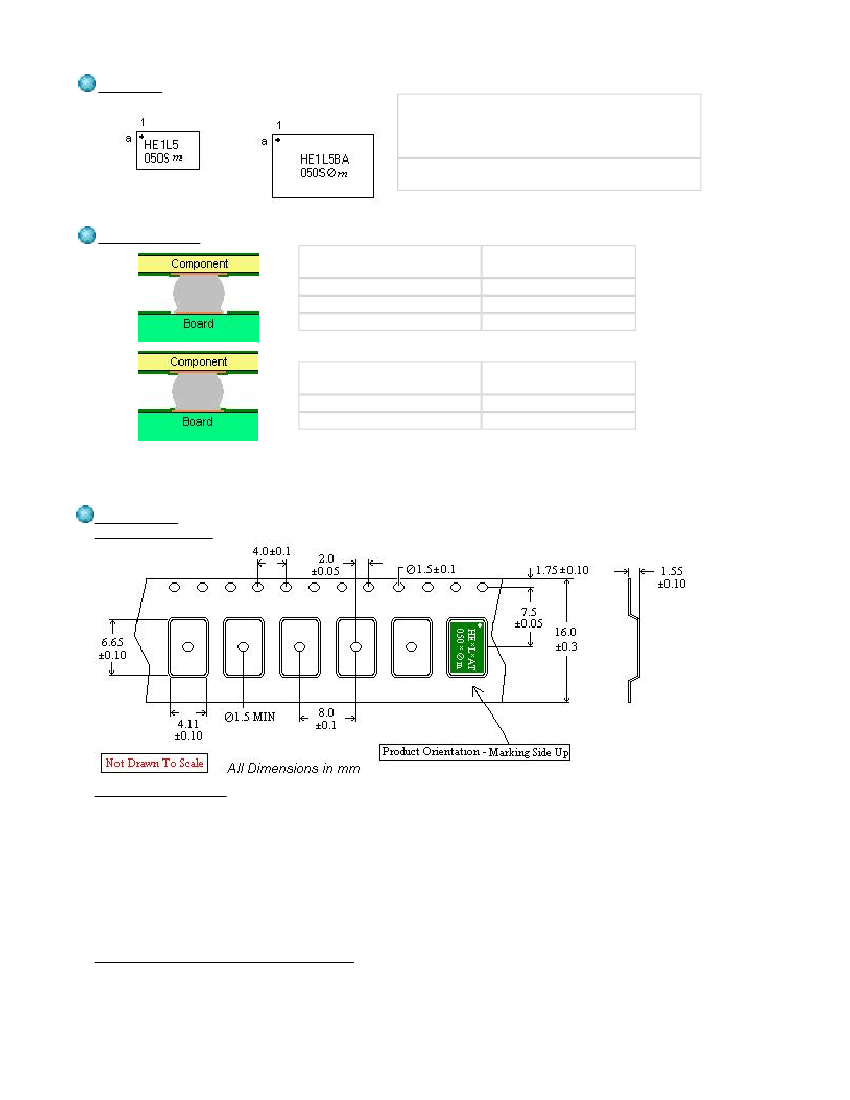

This product is currently available with solder finshes of Sn63/Pb37, as well

as a RoHS compliant, Pb free solder finish of Sn95.5/Ag3.8/Cu0.7. For the

RoHS compliant part, the customer must specify this upon ordering by

following the instructions in the part numbering section of this specification.

Electrical

Size A

Size Designator:

Delay Range:

Standard Delay Increment:

Delay Tolerance*:

Impedance:

DC Resistance:

0.1 to 1.2 ns

Size B

Rated Current:

Temp. Coef. of Time

Delay:

Insulation Resistance:

> 100 MΩ (100Vdc)

Isolation Resistance:

> 100 MΩ (100Vdc)

Operating Temperature:

-40 to +85°C

Storage Temperature:

-55 to +125C°

* Example for a 1ns delay value: ± 15ps + (2% of 1ns) = ±

35ps

0.1 & 0.5 to 3.5

0.1 ns

0.5 ns

± (15 ps + 2% of nominal)

Ω

± 10%

< 1

Ω

or 1Ω/ns

(whichever is greater)

100 mA

< 150 ppm/C

Electrical Performance Characteristics:

Part Number

HE1L5AA010S

HE1L5AA020S

HE1L5AA030S

HE1L5AT040S

HE1L5AT050S

HE1L5AT060S

HE1L5AT070S

HE1L5AT080S

Nominal

Time Delay

0.10 ns

0.20 ns

0.30 ns

0.40 ns

0.50 ns

0.60 ns

0.70 ns

0.80 ns

Time Delay

Typical Rise Typical Insertion

Tolerance Time (20%-80%)

Loss (-3dB)

±15 ps +2% of

19 ps

5.91 GHz

Nom.

±15 ps +2% of

25 ps

3.17 GHz

Nom.

±15 ps +2% of

30 ps

7.10 GHz

Nom.

±15 ps +2% of

58 ps

3.20 GHz

Nom.

±15 ps +2% of

78 ps

2.35 GHz

Nom.

±15 ps +2% of

86 ps

1.89 GHz

Nom.

±15 ps +2% of

238 ps

1.58 GHz

Nom.

±15 ps +2% of

244 ps

2.09 GHz

Nom.

Typical Return

Loss (-15dB)

4.06 GHz

2.26 GHz

4.70 GHz

0.93 GHz

0.70 GHz

0.62 GHz

0.53 GHz

0.49 GHz

http://www.thin-film.com/web/tft.nsf/41acb363040f5be585256a7b001dcc4c/443814c301... 10/23/2007
