TMP Models
Triple Output, High-Efficiency, Smaller-Package, 25-40 Watt, DC/DC Converters
Features
■
■
■
Higher operating temperatures
Fully potted
Designed to meet UL 60950-1 and
EN60950-1 (basic insulation)
mark available (75V-input models)
Fully isolated, 1500Vdc guaranteed
25/30/35/40W output power
Standard pinout! Smaller size!
2" x 3" package fits 3" x 3" footprint
+5V and ±12V or +5V and ±15V outputs
Four input voltage ranges:
10-36V, 18-36V, 18-75V, 36-75V
High efficiencies (to 86%)
V
OUT
trim and on/off control
Modifications and customs for OEM’s
■
■
■
■
■
■
■
■
■
■
DATEL’s TMP Models are fully potted, 25-40 Watt, triple-output DC/DC converters
designed to meet UL 60950-1 and EN60950-1 safety standards. The TMP’s higher ef-
ficiencies and thermally conductive potting compound enable these devices to achieve
higher operating temperatures without derating. The 2" x 3" TMP "footprint" conforms
to the standard pinout and pin geometries of most 3" x 3" devices (a 33% space sav-
ings) while delivering 60% more power (40W vs. 25W).
Applicable to a wide range of telecom, computer and other OEM applications,
TMP Model DC/DC’s offer +5V and ±12V or +5V and ±15V outputs. They operate
from four different input voltage ranges with total available output power being a func-
tion of the selected range. "Q12" models operate from 10-36V and deliver 25W. "Q48"
models operate from 18-75V and deliver 30W. For "D24" and "D48" models, the input
ranges and output powers are 18-36V at 35W and 36-75V at 40W, respectively.
TMP's employ corrosion-resistant metal cases with plastic headers. Heat-generat-
ing transformer cores and power semiconductors are mounted to the
cases, which have threaded inserts for add-on heat sinks.
All devices feature input pi filters, input overvoltage shutdown, output overvoltage
protection, output current limiting, and thermal shutdown.
+V
IN
+12V (+15V)
–
V
IN
–12V (–15V)
+5V
ON/OFF
CONTROL
PWM
CONTROLLER
PWM
–
V
IN
COMMON
CASE
OPTO
ISOLATION
REFERENCE &
ERROR
AMPLIFIER
TRIM

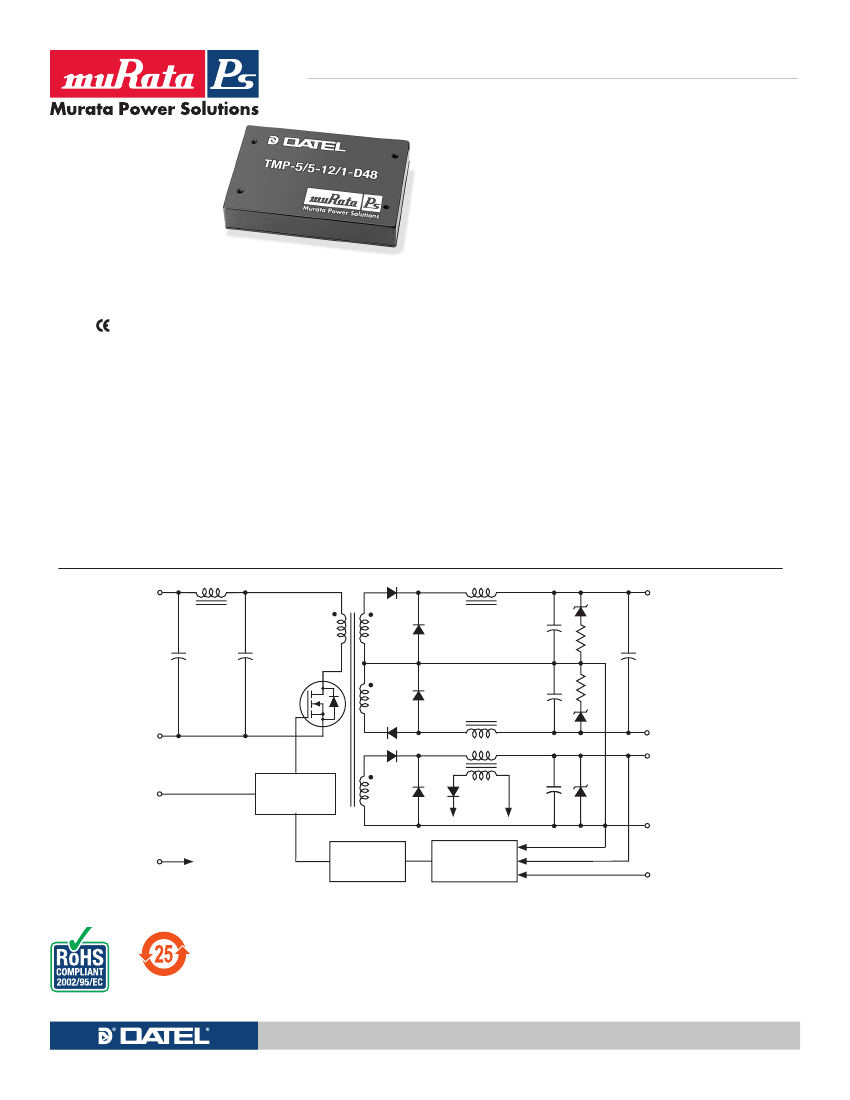

Figure 1. Simplified Schematic
For full details go to
www.murata-ps.com/rohs
Typical topology is shown
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_TMP25-40W_B02
Page 1 of 6
TMP Models
Triple Output, High-Efficiency, Smaller-Package, 25-40 Watt, DC/DC Converters
Performance Specifications and Ordering Guide
➀
Output
Model
TMP-5/5-12/1-Q12-C
TMP-5/5-12/1-D24-C
TMP-5/5-12/1-Q48-C
TMP-5/5-12/1-D48-C
TMP-5/5-15/1-Q12-C
TMP-5/5-15/1-D24-C
TMP-5/5-15/1-Q48-C
TMP-5/5-15/1-D48-C
Input
Regulation (Max.)
Load
➂
Line
±1%
±1.5%
±1%
±1.5%
±1%
±1.5%
±1%
±1.5%
±1%
±1.5%
±1%
±1.5%
±1%
±1.5%
±1%
±1.5%
±1.5%
±8%
±1.5%
±8%
±1.5%
±8%
±1.5%
±8%
±1.5%
±8%
±1.5%
±8%
±1.5%
±8%
±1.5%
±8%
V
OUT
(Volts)
+5
±12
+5
±12
+5
±12
+5
±12
+5
±15
+5
±15
+5
±15
+5
±15
I
OUT
(Amps)
5
±1
5
±1
5
±1
5
±1
5
±1
5
±1
5
±1
5
±1
R/N (mVp-p)
➁
Typ.
Max.
75
100
75
100
75
100
75
100
75
100
75
100
75
100
75
120
100
120
100
120
100
120
100
120
100
150
100
150
100
150
100
150
V
IN
Nom.
(Volts)
24
24
48
48
24
24
48
48
Range
(Volts)
10-36
18-36
18-75
36-75
10-36
18-36
18-75
36-75
I
IN
➃
(mA)
35/1240
35/1716
20/727
25/969
35/1238
35/1696
20/735
25/981
Efficiency
Min.
Typ.
82%
83%
83%
83%
82%
83.5%
82%
83%
84%
85%
86%
86%
85%
86%
85%
85%
Package
(Case,
Pinout)
C11, P16
C11, P16
C11, P16
C11, P16
C11, P16
C11, P16
C11, P16
C11, P16
➀
Typical at T
A
= +25°C under nominal line voltage and "full-load" conditions unless otherwise
noted. The specific combination of primary and auxiliary currents comprising "full load" varies
with part number. See Ouput Power Considerations and Technical Notes for more details.
PART NUMbER STRUCTURE
➁
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
➂
10-100% load on the primary +5V output, 20-100% balanced loads on the auxiliary outputs.
➃
Nominal line voltage, no-load/full-load conditions.
OUTPUT POWER CONSIDERATIONS
T MP
-
5
/
5
-
12
/
1
-
D48
-
C
Output Configuration:
T
= Triple
Fully Potted Metal Package
Nominal Primary Output
Voltage (+5 Volts)
Maximum Primary Output
Current in Amps
Nominal Auxiliary Output
Voltages (±12 or ±15 Volts)

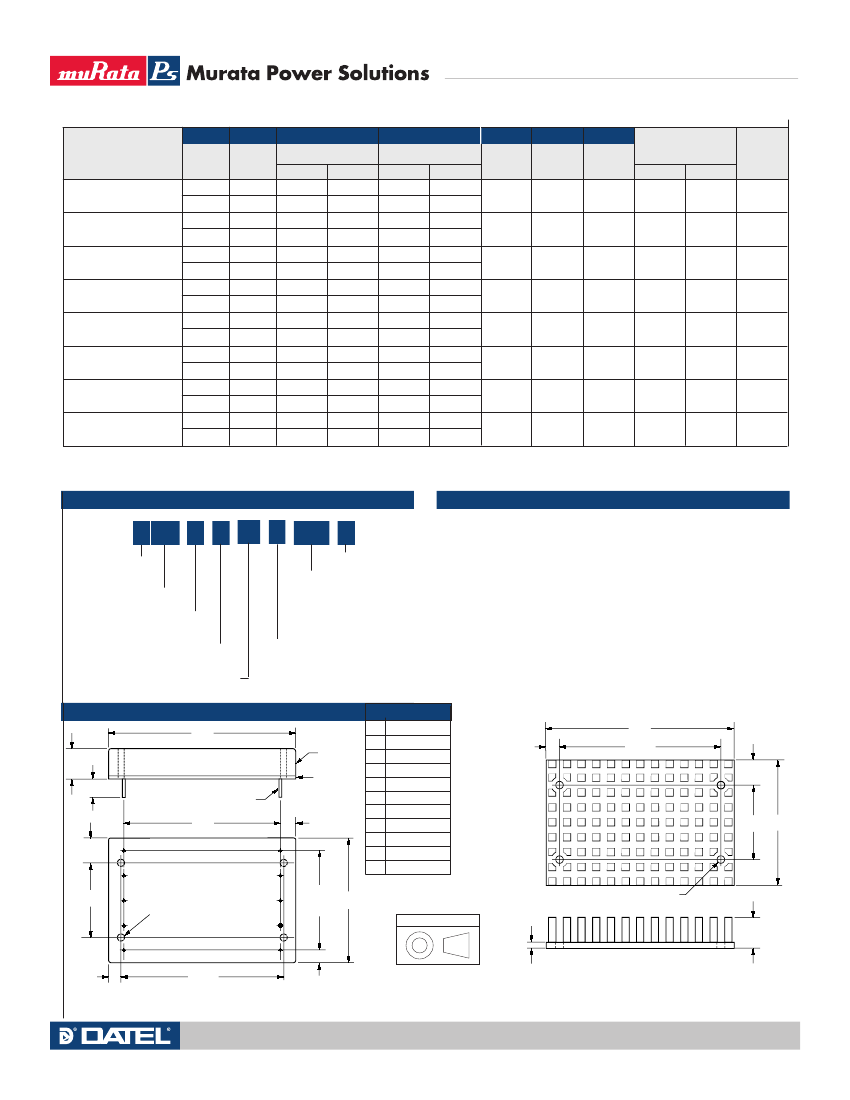

MECHANICAL SPECIFICATIONS
3.04
(77.22)
METAL
CASE
INSULATED
BASE
0.040 ±0.002 DIA.
(1.016 ±0.051)
2.500
(63.50)
0.42
(10.67)
0.27
(6.86)
RoHS Compliant
Input Voltage Range:
Q12
= 10-36 Volts (24V nom.)
D24
= 18-36 Volts (24V nom.)
Q48
= 18-75 Volts (48V nom.)
D48
= 36-75 Volts (48V nom.)
Maximum Auxiliary Output
Currents in Amps from each output
Some model number combinations may
not be available. Please contact Murata
Power Solutions.
As shown below, TMP Model DC/DC Converters are classified by output
power. For triple-output devices, the sum of the output power from the primary
+5V output and the two auxiliary (±12V or ±15V) outputs can not exceed the
rated power. For example, "D24" models have a maximum power of 35W.
Therefore, if you source the maximum primary current of 5A, the devices will
only be able to provide 10W of total power from their auxilliary outputs.
Model
Q12
Q48
D24
D48
Maximum Output Power
25 Watts
30 Watts
35 Watts
40 Watts
I/O Connections
Optional Heat Sink Kit
(Part Number HS-23 <non-RoHS> or HS-23-C <RoHS>)
3.00
(76.20)
0.20
(5.08)
2.600
(66.04)
0.40
(10.16)
0.55
(13.97)
0.20 MIN.
(5.08)
Case C11
1
2
6
7
1.600
2.04
(40.64)
4 EQ. SP. @ (51.82)
0.400 (10.16)
Pin Function P16
1
No Pin
2
–Input
3
+Input
4
Case
5
On/Off Control*
6
–12V/15V Out
7
+12V/15V Out
8
Common
9
+5V Out
10
Trim
* See note 4 on next page.
1.200
(30.48)
2.00
(50.80)
1.200
(30.48)
3
(4) THREADED INSERTS
#4-40 THD THRU
8
TOP VIEW
Dimensions are in inches (mm shown for ref. only).
Third Angle Projection
0.120 DIA. (3.048)
(4 PLACES)
4
9
10
BOTTOM VIEW
0.10
(2.54)
0.50
(12.70)
5
0.22
(5.59)
2.600
(66.04)
0.22
(5.59)
Tolerances (unless otherwise specified):
.XX ± 0.02 (0.5)
.XXX ± 0.010 (0.25)
Angles ± 2˚
Components are shown for reference only.
MATERIAL: BLACK ANODIZED ALUMINUM
4 MOUNTING SCREWS AND 0.009 (0.229) THERMAL PAD INCLUDED
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_TMP25-40W_B02
Page 2 of 6
TMP Models
Performance/Functional Specifications
INPUT
Input Voltage Range:
Q12 Models
D24 Models
Q48 Models
D48 Models
Input Current
Input Filter Type
Overvoltage Shutdown:
Q12 and D24 Models
Q48 and D48 Models
Reverse-Polarity Protection
On/Off Control
(Pin 5)
➂
10-36 Volts (24V nominal)
18-36 Volts (24V nominal)
18-75 Volts (48V nominal)
36-75 Volts (48V nominal)
See Ordering Guide
Pi
40 Volts
80 Volts
Yes (Instantaneous, 6A maximum)
Pin open = ON, (logic HI)
Pin grounded = OFF (logic LO)
Output Overvoltage Protection
+5V Output
±12V Outputs
±15V Outputs
Output Current
Triple Output, High-Efficiency, Smaller-Package, 25-40 Watt, DC/DC Converters
➂
Applying a voltage to the On/Off Control pin when no input power is applied to the con
verter can cause permanent damage to the converter.
➃
Listed specification is for input-to-output isolation. Input-to-case and output-to-case
isolation is 1000Vdc, minimum.
Typical @ T
A
= +25°C under nominal line voltage and "full-load" conditions, unless noted.
➀
➁
Absolute Maximum Ratings
Input Voltage:
Q12/D24 Models
Q48/D48 Models
Input Reverse-Polarity Protection
44 Volts
88 Volts
Current must be <6A. Brief
duration only. Fusing recommended.
6.8 Volts, limited duration
15 Volts, limited duration
18 Volts, limited duration
Current limited. Max. current and
short-circuit duration are model
dependent.
–40 to +105°C
Output
V
OUT
Accuracy
(50% load):
+5V Output
±12V or ±15V Outputs
Temperature Coefficient
Ripple/Noise
(20MHz BW)
Line/Load Regulation
Efficiency
Isolation Voltage
➃
Isolation Capacitance
Current Limiting
Overvoltage Protection
Transient Response
(50% load step)
Switching Frequency
Operating Temperature
(ambient):
Without Derating
With Derating
Maximum Case Temperature
Storage Temperature
Relative Humidity
Safety
Dimensions
Shielding
Case Connection
Case Material
Flammability Rating
Pin Material
Weight
±1%
±3%
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
1500Vdc, minimum
500pF
Continuous, auto-recovery
Zener/transorb clamps, magnetic fdbk.
Storage Temperature
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
TECHNICAL NOTES
Filtering and Noise Reduction
All TMP 25-40 Watt DC/DC Converters achieve their rated ripple and noise
specifications without the use of external input/output capacitors. In criti-
cal applications, input/output ripple and noise may be further reduced by
installing electrolytic capacitors across the input terminals and/or low-ESR
tantalum or electrolytic capacitors across the output terminals. Output
capacitors should be connected between their respective output pin (pin 6, 7
or 9) and Common (pin 8). The caps should be located as close to the power
converters as possible. See Figure 7. Typical values are listed in the tables
below. In many applications, using values greater than those listed will yield
better results.
To Reduce Input Ripple
Q12, D24 Models
Q48, D48 Models
To Reduce Output Ripple
+5V Output
±12/15V Outputs
47µF, 50V
10µF, 100V
47µF, 10V, Low ESR
22µF, 20V, Low ESR
Dynamic Characteristics
300µsec max. to ±3% of final value
125kHz (±10%)
Environmental
–40 to +70°C (Model dependent)
to +95°C
+95°C
–40 to +105°C
To +85°C / 85% RH, non-condensing
Physical
UL/cUL/EN/IEC 60950-1
2.04" x 3.04" x 0.55" (51.8 x 77.2 x 14mm)
5-sided
Pin 4
Aluminum, black anodized finish
with plastic header
UL94V-0
Gold-plated copper alloy over nickel
underplate
6 ounces (170 grams)
In critical, space-sensitive applications, DATEL may be able to tailor the in-
ternal input/output filtering of these units to meet your specific requirements.
Contact our Applications Engineering Group for additional details.
Input Fusing
Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. For DATEL TMP DC/
DC Converters, you should use slow-blow type fuses with values no greater
than the following:
V
IN
Range
Q12
D24
Q48
D48
Fuse Value
4A
4A
3A
2A
➀
These converters require a minimum 10% loading on their primary output and 20%
loading on each auxiliary output to maintain specified regulation. Operation under no-load
conditions will not damage these devices; however they may not meet all listed specifica
tions.
➁
"Full load" varies by part number and is determined by the input voltage range as indi
cated by the part number suffix. See Technical Notes and Output Power Considerations.
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_TMP25-40W_B02
Page 3 of 6
TMP Models
Triple Output, High-Efficiency, Smaller-Package, 25-40 Watt, DC/DC Converters

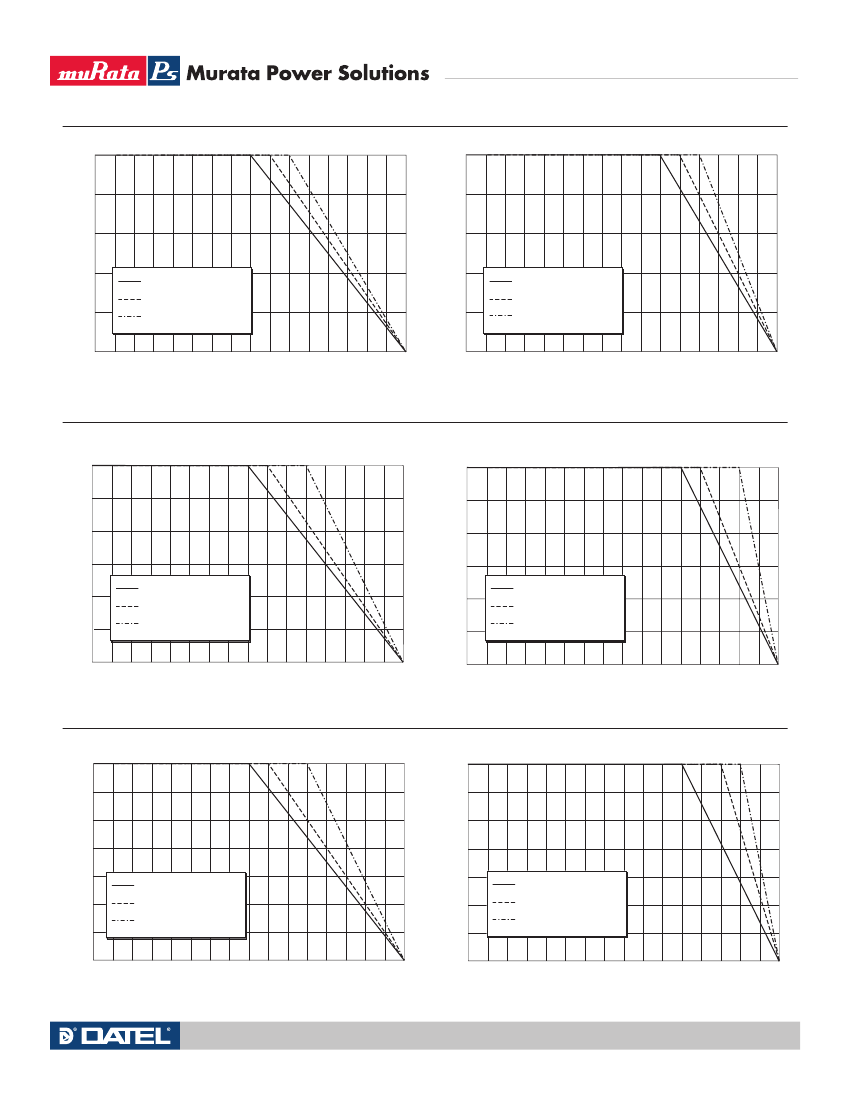

Temperature Derating and Electrical Performance Curves
Q12 Models (25 Watts)
25
25
20
20
Output Power (Watts)
Output Power (Watts)
15
15
10
10
Natural Convection Cooling
150 Linear Feet Per Minute
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
5
300 Linear Feet Per Minute
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 2a. Temperature Derating Without Heat Sink
Figure 2b. Temperature Derating With Heat Sink
Q48 Models (30 Watts)
30
30
25
25
Output Power (Watts)
20
Output Power (Watts)
20
15
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
10
5
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 3a. Temperature Derating Without Heat Sink
Figure 3b. Temperature Derating With Heat Sink
D24 Models (35 Watts)
35
35
30
30
Output Power (Watts)
20
Output Power (Watts)
25
25
20
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
5
15
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
10
5
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 4a. Temperature Derating Without Heat Sink
Figure 4b. Temperature Derating With Heat Sink
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
www.murata-ps.com
MDC_TMP25-40W_B02
Page 4 of 6
TMP Models
Triple Output, High-Efficiency, Smaller-Package, 25-40 Watt, DC/DC Converters
Temperature Derating and Electrical Performance Curves
D48 Models (40 Watts)
40
35
30
40
35
30
25
20
15
10
5
0
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
Output Power (Watts)
25
20
15
10
5
0
Output Power (Watts)
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
–40
0
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 5a. Temperature Derating Without Heat Sink
Figure 5b. Temperature Derating With Heat Sink
Output Power
TMP Model, triple-output DC/DC converters incorporate a design tradeoff be-
tween total available output power and input voltage range. The total available
power is a function of both the nominal input voltage and the "width" of the
input voltage range. For a given nominal input (24V or 48V), narrower ranges
(2:1 vs. 4:1) have more available power. For a given "width" of input range
(2:1 or 4:1), higher nominal inputs (48V vs. 24V) have more available power.
Each device, as indicated by its part-number suffix (Q12, Q48, D24, D48),
has a total output power limitation of 25, 30, 35 or 40 Watts, respectively.
Observing these power limitations is the user's responsibility.
As indicated by its Part Number Structure, each TMP device is capable of
sourcing up to 5 Amps of +5V current as well as ±1 Amp of auxiliary (±12V
or ±15V) currents. Users have the flexibility of loading any output up to these
limits; however, you must be extremely careful not to exceed the total output
power rating of any given device. If, for example, a device with a 30W power
rating is sourcing 4A from its +5V output (representing 20W of primary output
power), that device can only supply an additional 10W from its auxiliary outputs
(±333mA from ±15V outputs or ±417mA from ±12V outputs).
As a consequence of this "power-allocation" flexibility, the definition of "full
load," as the condition under which performance specifications are tested
and listed, is ambiguous. The following table lists the primary and auxiliary
output currents that DATEL uses to define each device’s "full load."
Model Number
TMP-5/5-12/1-Q12
TMP-5/5-12/1-Q48
TMP-5/5-12/1-D24
TMP-5/5-12/1-D48
TMP-5/5-15/1-Q12
TMP-5/5-15/1-Q48
TMP-5/5-15/1-D24
TMP-5/5-15/1-D48
Voltage
Range
10-36V
18-75V
18-36V
36-75V
10-36V
18-75V
18-36V
36-75V
Output
Power
25 Watts
30 Watts
35 Watts
40 Watts
25 Watts
30 Watts
35 Watts
40 Watts
Definition of "Full Load" for Specification Purposes
+5V Current
2.6A (13W)
3A (15W)
4A (20W)
4A (20W)
2.5A (12.5W)
3A (15W)
4A (20W)
4A (20W)
±12V Currents
±500mA (12W)
±625mA (15W)
±625mA (15W)
±833mA (20W)
–
–
–
–
±15V Currents
–
–
–
–
±417mA (12.5W)
±500mA (15W)
±500mA (15W)
±667mA (20W)
Table 1. Output Currents Comprising "Full Load"
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_TMP25-40W_B02
Page 5 of 6
京公网安备 11010802033920号
EEWORLD
